Bad Boy Tractors 4035 Cab vs Massey Ferguson 1740E

Across 7 measurable specs, the Bad Boy Tractors 4035 Cab leads 5 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and Massey Ferguson 1740E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

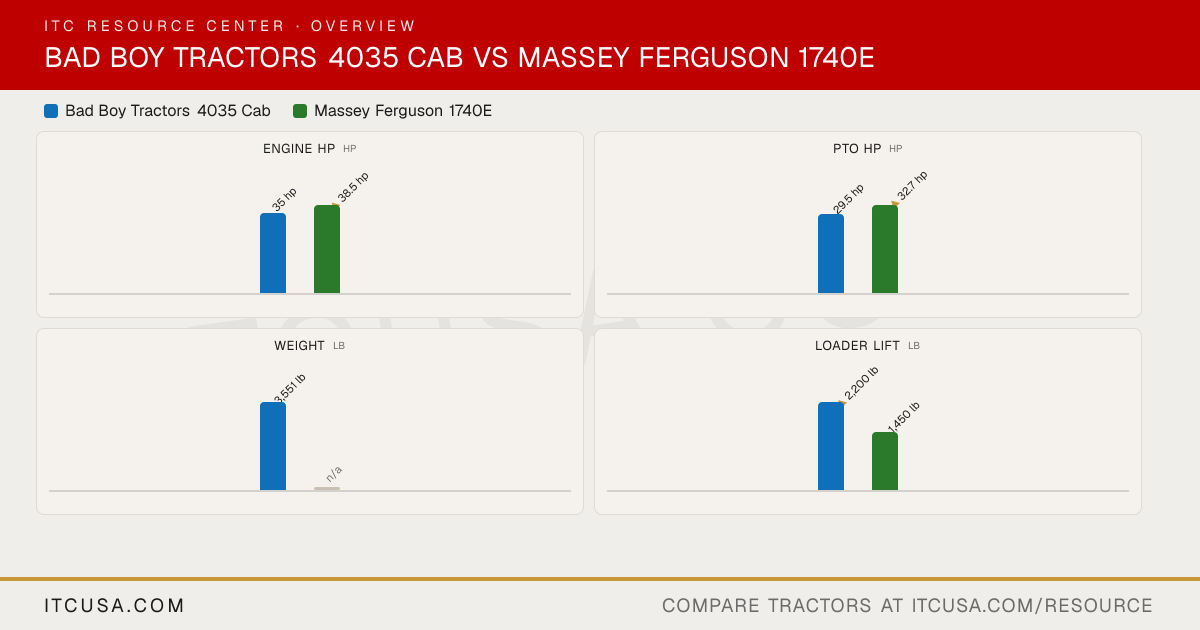

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Massey Ferguson1740E

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A1700N4-BUTC_4	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	104.7 in³	91.3 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	35 hp	38.5 hp
PTO Power	29.5 hp	32.7 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Dual engine-driven gear pumps
Implement Flow	8.2 gpm	7.5 gpm
Steering Flow	4.4 gpm	Not Published
Total Hydraulic Flow	12.6 gpm	10.4 gpm
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Up to 2
No. of Optional Remote Valves	Up to 2	2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.6 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	2,205 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,598 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	3 range (HST)	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	121.1 in
Overall Width	56.3 in	56.1-59.4 in
Wheelbase	65.7 in	65.9 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	93.9-94.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	7-16	7-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	28x8.50-15	27x8.50-15
R4 Industrial - Rear	43x16.00-20	15-19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	BBL400	FLx2407
Loader Lift Height	104 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	2,200 lb	FLx2407: 1,450 lb
Loader Breakout Force	3,660 lb	FLx2407: 2,288 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4035 Cab vs Massey Ferguson 1740E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1740E?

The Massey Ferguson 1740E leads on engine hp at 38.5 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1740E?

The Massey Ferguson 1740E leads on pto hp at 32.7 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1740E?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,450 lb lb for the Massey Ferguson 1740E.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1740E?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1740E.
