John Deere 3320 vs Massey Ferguson 1533

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Massey Ferguson 1533 leads 6 categories to 0 (1 tied). Machine pages: John Deere 3320 and Massey Ferguson 1533.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3320	Massey Ferguson 1533
Engine HP (hp)	32.4 hp	▲ 33 hp
PTO HP (hp)	25 hp	▲ 26 hp
Weight (lb)	2,900 lb	▲ 3,384 lb
Loader Lift (lb)	1,598 lb	▲ 1,900 lb
3-Pt Lift (24 in) (lb)	2,200 lb	▲ 2,800 lb
Lift Height (in)	102 in	102 in
Breakout Force (lbf)	3,327 lbf	n/a
Hydraulic Flow (gpm)	13.9 gpm	▲ 15.1 gpm
Travel Speed (mph)	19 mph	n/a

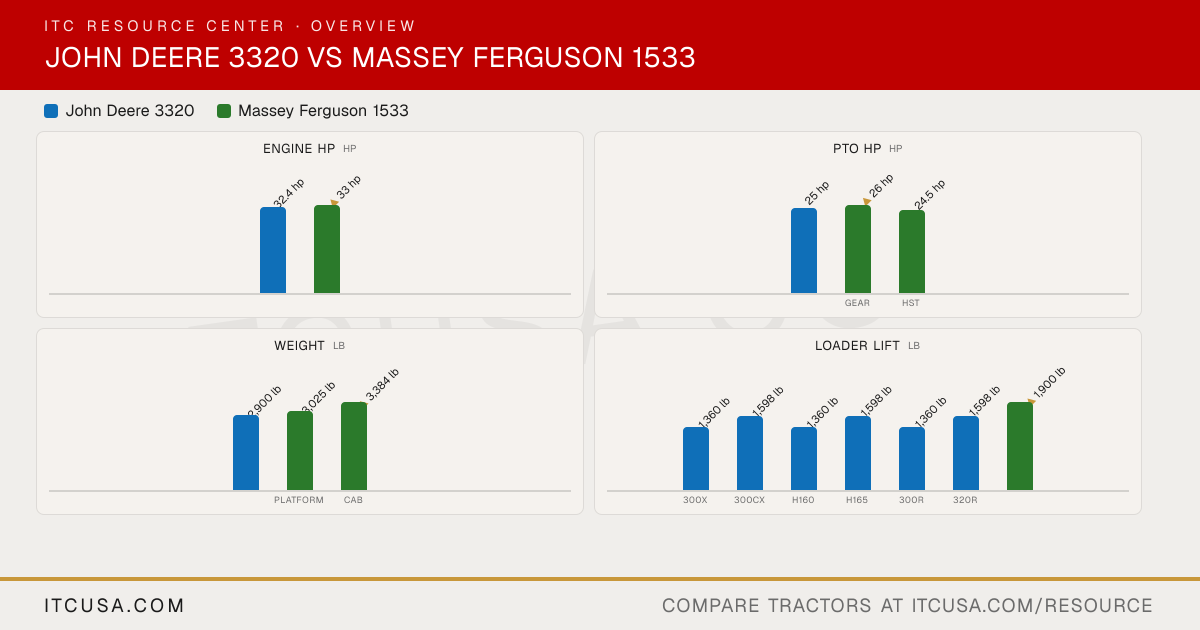

The headline numbers at a glance.

John Deere 3320Massey Ferguson 1533

Engine HPhp

32.4 hp

▲33 hp

PTO HPhp

25 hp

▲26 hp

24.5 hp

GearHST

Weightlb

2,900 lb

3,025 lb

▲3,384 lb

PlatformCab

Loader Liftlb

1,360 lb

1,598 lb

1,360 lb

1,598 lb

1,360 lb

1,598 lb

▲1,900 lb

300X300CXH160H165300R320R

3-Pt Lift (24 in)lb

2,200 lb

▲2,800 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3320	Massey Ferguson1533


Engine Manufacturer	Yanmar	Iseki
Engine Model	3TNV88-BMJT	Not Published
Engine Type	3-cylinder liquid-cooled diesel, direct injection	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	100.1 in³	91.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	32.4 hp	33 hp
PTO Power	25 hp	Gear: 26 hp; HST: 24.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry type with safety element	Dry
Fuel System	Direct injection, self bleeding, in-line fuel pump with electric shutoff	Not Published
Alternator	40 A	Not Published

Pump Type	Dual tandem gear pump	Not Published
Implement Flow	8.6 gpm	9.1 gpm
Steering Flow	5.3 gpm	SynchroShuttle: 4.9 gpm; HST and PowerShuttle: 6 gpm
Total Hydraulic Flow	13.9 gpm	SynchroShuttle: 14.0 gpm; HST and PowerShuttle: 15.1 gpm
Overall Hydraulic Pump Flow	13.9 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	9.1 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	2 spool optional

Fuel Tank Capacity	13.5 gal (open station); 11.8 gal (cab)	10.6 gal
Coolant Capacity	5.6 qt (open station); 7.4 qt (cab)	7.1 qt
Crankcase Capacity	5.1 qt	5 qt
Transmission / Hydraulic System Capacity	6.8 gal (eHydro); 6.3 gal (PowrReverser)	32.8 qt
Front Axle Fluid Capacity	1.2 gal	7.9 qt

PTO Type	Independent	Independent, electro-hydraulic control
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2100 rpm	Optional, 2000 rpm
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	2,800 lb
Hitch Lift Capacity (at 24”)	2200 lb	Not Published
Lift Control Type	Position control	Position control with rate of drop control

Transmission Type	eHydro 3-range hydrostatic (4WD); PowrReverser 12F/12R power shuttle (4WD)	8x8 SynchroShuttle (platform only), 12x12 PowerShuttle, or 3-range hydrostatic with cruise (platform only)
No. of Speeds	Infinite forward and reverse, 3 ranges (eHydro); 12 forward, 12 reverse (PowrReverser)	Not Published
Max Travel Speed (Forward)	19 mph (eHydro); 16.4 mph (PowrReverser)	Not Published
Max Travel Speed (Reverse)	19 mph (eHydro); 16.4 mph (PowrReverser)	Not Published
Clutch	Multiple stage wet disc, 4.4 in (PowrReverser)	Wet multi-disc (PowerShuttle)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Two-post folding ROPS; cab optional; MFWD standard	Semi-flat isolated platform, folding ROPS
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Not Published	Adjustable suspension seat with retractable seat belt and adjustable armrest
Front Axle Type	Mechanical front wheel drive (MFWD), standard, all ranges	4WD front axle, push-pull engagement lever
Front Axle Rating	1587 to 3197 lb	Not Published
Drawbar Capacity	562 lb	Not Published

Overall Length with 3-Point Hitch	120.2 in	121.0 in
Overall Width	52.4 in (minimum, R1 tires); 68.4 in (maximum, R1 tires)	62.0 in
Wheelbase	68 in	70.0 in
Ground Clearance	Not Published	14.0 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	93.3 in	87.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	89.4 in	Not Published

Tractor Weight (Base)	2900 lb (open station); 3570 lb (cab)	Platform: 3,025 lb; Cab: 3,384 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 bar tread, R3 turf, R4 industrial and golf tires available on all models	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)
R1 Agricultural - Front	7.00-14	8-16
R1 Agricultural - Rear	11.2-24	12.4-24 (13.6-24 optional)
R3 Turf - Front	27x8.50-15	27x8.50-15 (LSW305 R343 optional)
R3 Turf - Rear	41x14.00-20	41x14.00-20 (LSW610 R470 optional)
R4 Industrial - Front	25x8.50-14 or 27x8.50-15	10-16.5 or 25x8.5-14
R4 Industrial - Rear	43x16.00-20 or 15.00-19.5	14.9-24 or 15x19.5

Quick Attach Loader System	John Deere quick-attach (Quik-Park); skid-steer style carrier optional on 300CX	DL120: pin-type or skid-steer quick attach
Loader Model	300X; 300CX; H160; H165; 300R; 320R	DL120
Loader Lift Height	300X: 90 in; 300CX: 102 in; H160: 90 in; H165: 102 in; 300R: 90 in; 320R: 102 in	DL120: 102 in
Loader Lift Capacity (Full Height)	300X: 1360 lb; 300CX: 1598 lb; H160: 1360 lb; H165: 1598 lb; 300R: 1360 lb; 320R: 1598 lb (to maximum height at pivot pin)	DL120: 1,900 lb
Loader Breakout Force	300X: 2855 lbf; 300CX: 3327 lbf; H160: 2855 lbf; H165: 3327 lbf; 300R: 2855 lbf; 320R: 3327 lbf (at pivot pin)	Not Published

Warranty Length & Coverage	Not Published	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain

Find a John Deere dealer near you Find a dealer near you

John Deere 3320 vs Massey Ferguson 1533: Quick Answers

Which has more horsepower, the John Deere 3320 or the Massey Ferguson 1533?: The Massey Ferguson 1533 leads on engine hp at 33 hp hp, compared to 32.4 hp hp for the John Deere 3320.
Which has more PTO horsepower, the John Deere 3320 or the Massey Ferguson 1533?: The Massey Ferguson 1533 leads on pto hp at 26 hp hp, compared to 25 hp hp for the John Deere 3320.
Which is heavier, the John Deere 3320 or the Massey Ferguson 1533?: The Massey Ferguson 1533 leads on weight at 3,384 lb lb, compared to 2,900 lb lb for the John Deere 3320.
Which has more loader lift capacity, the John Deere 3320 or the Massey Ferguson 1533?: The Massey Ferguson 1533 leads on loader lift at 1,900 lb lb, compared to 1,598 lb lb for the John Deere 3320.
Which has more three-point hitch lift capacity, the John Deere 3320 or the Massey Ferguson 1533?: The Massey Ferguson 1533 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 2,200 lb lb for the John Deere 3320.
