Bad Boy Tractors 4035 vs John Deere 3320

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 8 categories to 1. Machine pages: Bad Boy Tractors 4035 and John Deere 3320.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	John Deere3320

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N4-BUTR_4	3TNV88-BMJT
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder liquid-cooled diesel, direct injection
No. of Cylinders	3	3
Displacement	104.7 in³	100.1 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	32.4 hp
PTO Power	29.5 hp	25 hp
Engine Emissions Constraints	EPA Final Tier4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry type with safety element
Fuel System	Not Published	Direct injection, self bleeding, in-line fuel pump with electric shutoff
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Not Published	Dual tandem gear pump
Implement Flow	8.2 gpm	8.6 gpm
Steering Flow	4.4 gpm	5.3 gpm
Total Hydraulic Flow	12.6 gpm	13.9 gpm
Overall Hydraulic Pump Flow	12.6 gpm	13.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	13.5 gal (open station); 11.8 gal (cab)
Coolant Capacity	1.32 gal	5.6 qt (open station); 7.4 qt (cab)
Crankcase Capacity	1.14 gal	5.1 qt
Transmission / Hydraulic System Capacity	9.77 gal	6.8 gal (eHydro); 6.3 gal (PowrReverser)
Front Axle Fluid Capacity	1.69 gal	1.2 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2100 rpm
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2200 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	eHydro 3-range hydrostatic (4WD); PowrReverser 12F/12R power shuttle (4WD)
No. of Speeds	3 range (HST)	Infinite forward and reverse, 3 ranges (eHydro); 12 forward, 12 reverse (PowrReverser)
Max Travel Speed (Forward)	19.08 mph	19 mph (eHydro); 16.4 mph (PowrReverser)
Max Travel Speed (Reverse)	19.08 mph	19 mph (eHydro); 16.4 mph (PowrReverser)
Clutch	None (HST)	Multiple stage wet disc, 4.4 in (PowrReverser)
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Two-post folding ROPS; cab optional; MFWD standard
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disk
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating	Not Published	1587 to 3197 lb
Drawbar Capacity	Not Published	562 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	120.2 in
Overall Width	56.7 in	52.4 in (minimum, R1 tires); 68.4 in (maximum, R1 tires)
Wheelbase	65.7 in	68 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.85 in	93.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	89.4 in
▶Weight
Tractor Weight (Base)	3,163.6 lb	2900 lb (open station); 3570 lb (cab)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 bar tread, R3 turf, R4 industrial and golf tires available on all models
R1 Agricultural - Front	8.0-16	7.00-14
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	27x8.50-15
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	28x8.50-15	25x8.50-14 or 27x8.50-15
R4 Industrial - Rear	43x16.00-20	43x16.00-20 or 15.00-19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	John Deere quick-attach (Quik-Park); skid-steer style carrier optional on 300CX
Loader Model	BBL400	300X; 300CX; H160; H165; 300R; 320R
Loader Lift Height	104 in	300X: 90 in; 300CX: 102 in; H160: 90 in; H165: 102 in; 300R: 90 in; 320R: 102 in
Loader Lift Capacity (Full Height)	2,200 lb	300X: 1360 lb; 300CX: 1598 lb; H160: 1360 lb; H165: 1598 lb; 300R: 1360 lb; 320R: 1598 lb (to maximum height at pivot pin)
Loader Breakout Force	3,660 lb	300X: 2855 lbf; 300CX: 3327 lbf; H160: 2855 lbf; H165: 3327 lbf; 300R: 2855 lbf; 320R: 3327 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

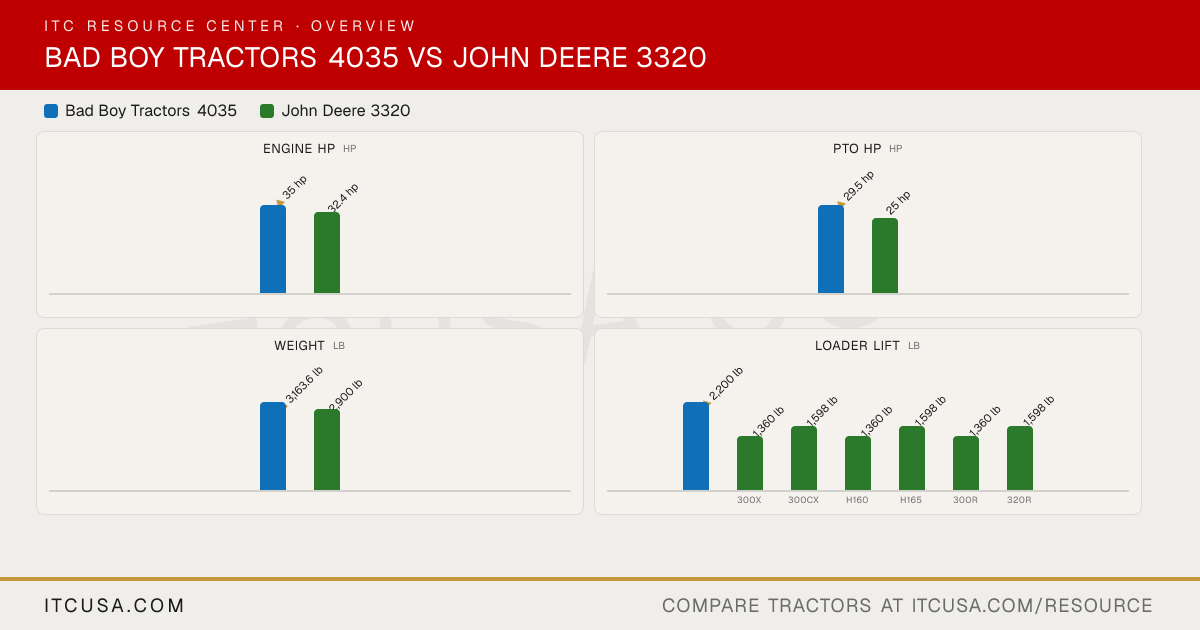

Bad Boy Tractors 4035 vs John Deere 3320: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the John Deere 3320?

The Bad Boy Tractors 4035 leads on engine hp at 35 hp hp, compared to 32.4 hp hp for the John Deere 3320.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the John Deere 3320?

The Bad Boy Tractors 4035 leads on pto hp at 29.5 hp hp, compared to 25 hp hp for the John Deere 3320.

Which is heavier, the Bad Boy Tractors 4035 or the John Deere 3320?

The Bad Boy Tractors 4035 leads on weight at 3,163.6 lb lb, compared to 2,900 lb lb for the John Deere 3320.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the John Deere 3320?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,598 lb lb for the John Deere 3320.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the John Deere 3320?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,200 lb lb for the John Deere 3320.
