| Engine Manufacturer | Yanmar | Kubota |
|---|
| Engine Model | 3TNV84T-BMJT | D1803-CR-E4-GL2 |
|---|
| Engine Type | 3-cylinder liquid-cooled diesel, direct injection | Naturally aspirated, multi-valve, liquid-cooled diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 91.5 in³ | 111.4 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|

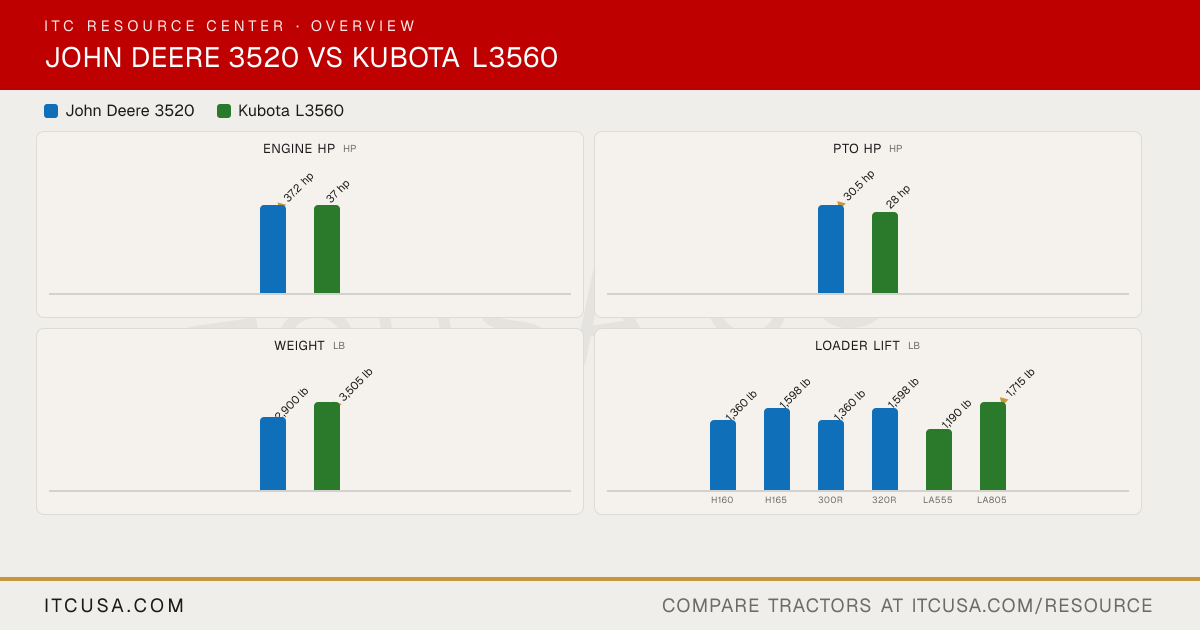

| Engine Power (Gross) | 37.2 hp | 37 hp |
|---|
| PTO Power | 30.5 hp | 28 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry type with safety element | Dry paper, dual element |
|---|
| Fuel System | Direct injection, self-bleeding in-line fuel pump, electric shutoff | Electronic CRS (Common Rail System) |
|---|
| Alternator | 40 A | 40 A, 12 V |
|---|
|
|---|
| Pump Type | Dual tandem gear pump | Tandem pump - gear type |
|---|
| Implement Flow | 8.6 gpm | 8.1 gpm |
|---|
| Steering Flow | 5.3 gpm | 4.7 gpm |
|---|
| Total Hydraulic Flow | 13.9 gpm | 12.8 gpm |
|---|
| Overall Hydraulic Pump Flow | 13.9 gpm | 12.8 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | None standard (up to 3 optional) |
|---|
| No. of Optional Remote Valves | Not Published | Optional, up to 3: double-acting valve or float detent valve, any position |
|---|
|
|---|
| Fuel Tank Capacity | 13.5 gal (open station); 11.8 gal (cab) | 13.5 gal |
|---|
| Coolant Capacity | 1.4 gal (open station); 1.8 gal (cab) | 7.9 qt |
|---|
| Crankcase Capacity | 5.1 qt | 7.1 qt |
|---|
| Transmission / Hydraulic System Capacity | 6.8 gal (eHydro); 6.3 gal (PowrReverser) | 11.1 gal |
|---|
| Front Axle Fluid Capacity | 1.2 gal | 6.9 qt |
|---|
|
|---|
| PTO Type | Independent | Live independent (hydraulic clutch) |
|---|
| PTO Rear | 540 rpm | DT, GST: 540 rpm @ 2550 engine rpm; HST, HSTC: 540 rpm @ 2476 engine rpm |
|---|
| Mid-PTO Availability | Optional, 2100 rpm | Optional |
|---|
| Category, 3-Point Hitch | Category 1 | SAE Category I |
|---|
| Hitch Lift Capacity | 2,530 lb | 3,750 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2,200 lb | 2,646 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | eHydro 3-range (4WD only); PowrReverser 12F/12R (4WD only) | Hydrostatic |
|---|
| No. of Speeds | Infinite forward and reverse, 3 ranges (eHydro); 12 forward, 12 reverse (PowrReverser) | 3-Range, 6 speeds (H-DS), infinitely variable in each |
|---|
| Max Travel Speed (Forward) | 19 mph (eHydro); 16.4 mph (PowrReverser) | 16.5 mph |
|---|
| Max Travel Speed (Reverse) | 19 mph (eHydro); 16.4 mph (PowrReverser) | 14.9 mph |
|---|
| Clutch | Multiple stage wet disc, 4.4 in (PowrReverser) | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock | Rear differential lock, standard |
|---|
|
|---|
| Frame Type | Folding ROPS; cab optional; MFWD standard | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Wet disk | Wet disc type, mechanically activated |
|---|
| Seat Suspension & Adjustability | Not Published | Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) |
|---|
| Front Axle Type | Mechanical front wheel drive (MFWD), standard, all ranges | 4WD: Bevel gear front axle, non-adjustable tread spacing |
|---|
| Front Axle Rating | 1,587 to 3,197 lb | Not Published |
|---|
| Drawbar Capacity | Drawbar tongue capacity: 882 lb; maximum static vertical load: 562 lb | 1,433 lb |
|---|
|
|---|
| Overall Width | 52.4 in (minimum, R1 tires); 68.4 in (maximum, R1 tires) | 59.8 in |
|---|
| Wheelbase | 68 in | 71.1 in |
|---|
| Ground Clearance | 12.2 in (rear axle) | 13.5 in |
|---|
| Min. Turn Radius without Brakes | Not Published | 8.9 ft (with brake applied) |
|---|
| Height to Top of ROPS | 93.3 in | 97.2 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 89.4 in | Not Published |
|---|
| Overall Length | 120.2 in (with 3-point hitch) | 115.0 in (without 3-point hitch) |
|---|
|
|---|
| Tractor Weight (Base) | 2,900 lb (open station); 3,570 lb (cab) | 3,505 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 bar tread, R3 turf, R4 industrial and golf tires available on all models | R1 Agricultural; R3 Turf; R4 Industrial |
|---|
| R1 Agricultural - Front | 7.00-14 | 7.2-16 |
|---|
| R1 Agricultural - Rear | 11.2-24 | 12.4-24 |
|---|
| R3 Turf - Front | 27x8.50-15 | 27x10.50-15 |
|---|
| R3 Turf - Rear | 41x14.00-20 | 41x18LL-16.1 |
|---|
| R4 Industrial - Front | 25x8.50-14 or 27x8.50-15 | 10-16.5 |
|---|
| R4 Industrial - Rear | 43x16.00-20 or 15.00-19.5 | 420/70-24 |
|---|
|
|---|
| Quick Attach Loader System | John Deere Quik-Park | LA555: 2-lever mechanical quick coupler (standard); LA805: 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) |
|---|
| Loader Model | 300CX; H160; H165; 300R; 320R | LA555 or LA805 |
|---|
| Loader Lift Height | H160: 90 in; H165: 102 in; 300R: 90 in; 320R: 102 in | LA555: 96.4 in; LA805: 104.7 in |
|---|
| Loader Lift Capacity (Full Height) | H160: 1,360 lb; H165: 1,598 lb; 300R: 1,360 lb; 320R: 1,598 lb (to maximum height at pivot pin) | LA555: 1,190 lb; LA805: 1,715 lb (at pivot pin) |
|---|
| Loader Breakout Force | H160: 2,855 lbf; H165: 3,327 lbf; 300R: 2,855 lbf; 320R: 3,327 lbf (at pivot point) | LA555: 2,030 lb; LA805: 2,549 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours |
|---|
|
|---|
