John Deere 4044M vs John Deere 4105

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the John Deere 4044M leads 9 categories to 0. Machine pages: John Deere 4044M and John Deere 4105.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 4044M	John Deere 4105
Engine HP (hp)	▲ 43.1 hp	41 hp
PTO HP (hp)	▲ 34.6 hp	32.5 hp
Weight (lb)	▲ 3,770 lb	2,899 lb
Loader Lift (lb)	▲ 2,391 lb	1,393 lb
3-Pt Lift (24 in) (lb)	▲ 2,500 lb	2,200 lb
Lift Height (in)	▲ 112.1 in	103 in
Breakout Force (lbf)	▲ 3,853 lbf	3,769 lbf
Hydraulic Flow (gpm)	▲ 15.9 gpm	14.8 gpm
Travel Speed (mph)	▲ 18.6 mph	13 mph

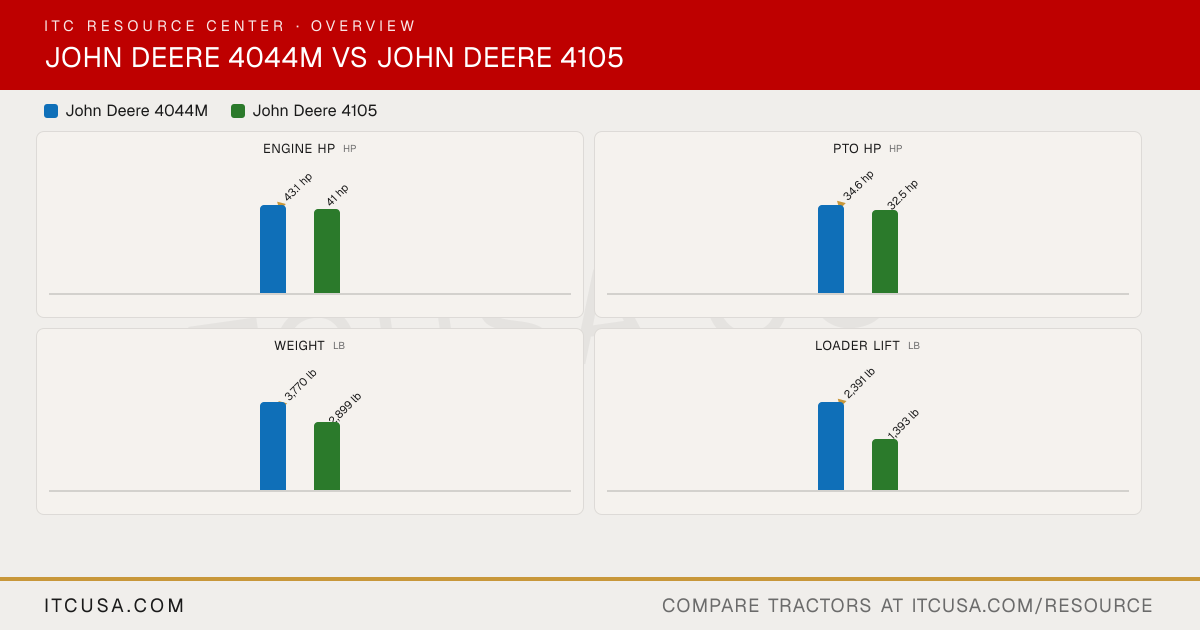

The headline numbers at a glance.

John Deere 4044MJohn Deere 4105

Engine HPhp

▲43.1 hp

41 hp

PTO HPhp

▲34.6 hp

32.5 hp

Weightlb

▲3,770 lb

2,899 lb

Loader Liftlb

▲2,391 lb

1,393 lb

3-Pt Lift (24 in)lb

▲2,500 lb

2,200 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere4044M	John Deere4105


Engine Manufacturer	Yanmar	Yanmar
Engine Model	4TNV88C-MJT	3TNV84T-KJT
Engine Type	Naturally-aspirated 4-cylinder Diesel	3-cylinder turbocharged liquid-cooled diesel, direct injection
No. of Cylinders	4	3
Displacement	133.5 in³	91.5 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	43.1 hp	41 hp
PTO Power	34.6 hp	32.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dual element (dry type with safety element)	Dry type with safety element
Fuel System	High-pressure common rail direct injection	Direct injection, self bleeding, in-line fuel pump with electric shutoff
Alternator	75 A, 12 V	40 A

Pump Type	Dual Independent	Dual tandem gear pump
Implement Flow	10.2 gpm	9.2 gpm
Steering Flow	5.7 gpm	5.7 gpm
Total Hydraulic Flow	15.9 gpm	14.8 gpm
Overall Hydraulic Pump Flow	15.9 gpm	14.8 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	3rd, 4th, and 5th optional (up to 5 total)	Not Published

Fuel Tank Capacity	15.0 gal	11.5 gal
Coolant Capacity	6.8 qt	1.4 gal
Crankcase Capacity	5.6 qt (with filter)	4.5 qt
Transmission / Hydraulic System Capacity	12.5 gal	8.3 gal
Front Axle Fluid Capacity	5.3 qt	1.2 gal

PTO Type	Independent (electrohydraulic)	Independent, wet disk clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	No mid-PTO offered	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	3,130 lb	Not Published
Hitch Lift Capacity (at 24”)	2,500 lb	2200 lb
Lift Control Type	Position control	Position control

Transmission Type	Standard: 12F/12R PowrReverser; Optional: eHydro (3-range hydrostatic)	2-range hydrostatic
No. of Speeds	12F/12R	Infinite forward and reverse, 2 ranges
Max Travel Speed (Forward)	18.6 mph	13 mph
Max Travel Speed (Reverse)	18.6 mph	12.6 mph
Clutch	Wet disc (PowrReverser); not applicable on eHydro	Wet disk
Differential Lock & Limited Slip Options	Differential lock: standard, rear, mechanical	Mechanical rear differential lock (ball, ramp and pin)

Frame Type	ROPS - Foldable	Fixed ROPS; four-wheel drive standard
Steering	Power steering (hydrostatic)	Hydrostatic power steering
Brakes	Wet disc	Wet disk
Seat Suspension & Adjustability	Optional mechanical suspension seat; adjustable weight 52-275.6 lb (115-275 lb); fore/aft adjustment; flips forward	Not Published
Front Axle Type	Mechanical front wheel drive (MFWD) - Standard	Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating	(Continuous) 3307 lb	3197 lb
Drawbar Capacity	Max vertical load 1103 lb	882 lb

Overall Length with 3-Point Hitch	130.6 in	120.2 in
Overall Width	78.2 in	63 in (minimum, R1 rear tires); 65.8 in (maximum, R4 rear tires)
Wheelbase	73.0 in	68 in
Ground Clearance	Front axle: 13.8 in	14.7 in (front axle)
Min. Turn Radius without Brakes	17.1 ft (5.2 m)	Not Published
Height to Top of ROPS	100.2 in	87.6 in
Height to Top of ROPS (folded)	69.5 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,770 lb	2899 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 bar tread (8.00-16 front, 14.9-24 rear) or R4 industrial (10.0-16.5 front, 17.5L-24 rear)
R1 Agricultural - Front	8.00-16 (6PR)	8.00-16
R1 Agricultural - Rear	13.6-28	14.9-24
R3 Turf - Front	27X10.50-15	Not Published
R3 Turf - Rear	44X18.00-20 (4PR)	Not Published
R4 Industrial - Front	260/70D16.5	10.0-16.5
R4 Industrial - Rear	420/85D24	17.5L-24

Quick Attach Loader System	Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable)	Not Published
Loader Model	D170	300CX
Loader Lift Height	112.1 in	H165: 103 in; 320R: 103 in
Loader Lift Capacity (Full Height)	2,391 lb (at pivot, NSL)	300CX: 1393 lb (at full height, measured at pivot)
Loader Breakout Force	At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf	H165: 3769 lbf; 320R: 3769 lbf; 300CX: 3769 lbf (at pivot point)

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	3-year / 2,000-hour limited warranty (as sold new)

Find a John Deere dealer near you

John Deere 4044M vs John Deere 4105: Quick Answers

Which has more horsepower, the John Deere 4044M or the John Deere 4105?: The John Deere 4044M leads on engine hp at 43.1 hp hp, compared to 41 hp hp for the John Deere 4105.
Which has more PTO horsepower, the John Deere 4044M or the John Deere 4105?: The John Deere 4044M leads on pto hp at 34.6 hp hp, compared to 32.5 hp hp for the John Deere 4105.
Which is heavier, the John Deere 4044M or the John Deere 4105?: The John Deere 4044M leads on weight at 3,770 lb lb, compared to 2,899 lb lb for the John Deere 4105.
Which has more loader lift capacity, the John Deere 4044M or the John Deere 4105?: The John Deere 4044M leads on loader lift at 2,391 lb lb, compared to 1,393 lb lb for the John Deere 4105.
Which has more three-point hitch lift capacity, the John Deere 4044M or the John Deere 4105?: The John Deere 4044M leads on 3-pt lift (24 in) at 2,500 lb lb, compared to 2,200 lb lb for the John Deere 4105.

More Head-to-Heads

Category Verdict

Spec	John Deere 4044M	John Deere 4105
Engine HP (hp)	▲ 43.1 hp	41 hp
PTO HP (hp)	▲ 34.6 hp	32.5 hp
Weight (lb)	▲ 3,770 lb	2,899 lb
Loader Lift (lb)	▲ 2,391 lb	1,393 lb
3-Pt Lift (24 in) (lb)	▲ 2,500 lb	2,200 lb
Lift Height (in)	▲ 112.1 in	103 in
Breakout Force (lbf)	▲ 3,853 lbf	3,769 lbf
Hydraulic Flow (gpm)	▲ 15.9 gpm	14.8 gpm
Travel Speed (mph)	▲ 18.6 mph	13 mph

The headline numbers at a glance.

John Deere 4044MJohn Deere 4105

Engine HPhp

▲43.1 hp

41 hp

PTO HPhp

▲34.6 hp

32.5 hp

Weightlb

▲3,770 lb

2,899 lb

Loader Liftlb

▲2,391 lb

1,393 lb

3-Pt Lift (24 in)lb

▲2,500 lb

2,200 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere4044M	John Deere4105


Engine Manufacturer	Yanmar	Yanmar
Engine Model	4TNV88C-MJT	3TNV84T-KJT
Engine Type	Naturally-aspirated 4-cylinder Diesel	3-cylinder turbocharged liquid-cooled diesel, direct injection
No. of Cylinders	4	3
Displacement	133.5 in³	91.5 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	43.1 hp	41 hp
PTO Power	34.6 hp	32.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dual element (dry type with safety element)	Dry type with safety element
Fuel System	High-pressure common rail direct injection	Direct injection, self bleeding, in-line fuel pump with electric shutoff
Alternator	75 A, 12 V	40 A

Pump Type	Dual Independent	Dual tandem gear pump
Implement Flow	10.2 gpm	9.2 gpm
Steering Flow	5.7 gpm	5.7 gpm
Total Hydraulic Flow	15.9 gpm	14.8 gpm
Overall Hydraulic Pump Flow	15.9 gpm	14.8 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	3rd, 4th, and 5th optional (up to 5 total)	Not Published

Fuel Tank Capacity	15.0 gal	11.5 gal
Coolant Capacity	6.8 qt	1.4 gal
Crankcase Capacity	5.6 qt (with filter)	4.5 qt
Transmission / Hydraulic System Capacity	12.5 gal	8.3 gal
Front Axle Fluid Capacity	5.3 qt	1.2 gal

PTO Type	Independent (electrohydraulic)	Independent, wet disk clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	No mid-PTO offered	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	3,130 lb	Not Published
Hitch Lift Capacity (at 24”)	2,500 lb	2200 lb
Lift Control Type	Position control	Position control

Transmission Type	Standard: 12F/12R PowrReverser; Optional: eHydro (3-range hydrostatic)	2-range hydrostatic
No. of Speeds	12F/12R	Infinite forward and reverse, 2 ranges
Max Travel Speed (Forward)	18.6 mph	13 mph
Max Travel Speed (Reverse)	18.6 mph	12.6 mph
Clutch	Wet disc (PowrReverser); not applicable on eHydro	Wet disk
Differential Lock & Limited Slip Options	Differential lock: standard, rear, mechanical	Mechanical rear differential lock (ball, ramp and pin)

Frame Type	ROPS - Foldable	Fixed ROPS; four-wheel drive standard
Steering	Power steering (hydrostatic)	Hydrostatic power steering
Brakes	Wet disc	Wet disk
Seat Suspension & Adjustability	Optional mechanical suspension seat; adjustable weight 52-275.6 lb (115-275 lb); fore/aft adjustment; flips forward	Not Published
Front Axle Type	Mechanical front wheel drive (MFWD) - Standard	Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating	(Continuous) 3307 lb	3197 lb
Drawbar Capacity	Max vertical load 1103 lb	882 lb

Overall Length with 3-Point Hitch	130.6 in	120.2 in
Overall Width	78.2 in	63 in (minimum, R1 rear tires); 65.8 in (maximum, R4 rear tires)
Wheelbase	73.0 in	68 in
Ground Clearance	Front axle: 13.8 in	14.7 in (front axle)
Min. Turn Radius without Brakes	17.1 ft (5.2 m)	Not Published
Height to Top of ROPS	100.2 in	87.6 in
Height to Top of ROPS (folded)	69.5 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,770 lb	2899 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 bar tread (8.00-16 front, 14.9-24 rear) or R4 industrial (10.0-16.5 front, 17.5L-24 rear)
R1 Agricultural - Front	8.00-16 (6PR)	8.00-16
R1 Agricultural - Rear	13.6-28	14.9-24
R3 Turf - Front	27X10.50-15	Not Published
R3 Turf - Rear	44X18.00-20 (4PR)	Not Published
R4 Industrial - Front	260/70D16.5	10.0-16.5
R4 Industrial - Rear	420/85D24	17.5L-24

Quick Attach Loader System	Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable)	Not Published
Loader Model	D170	300CX
Loader Lift Height	112.1 in	H165: 103 in; 320R: 103 in
Loader Lift Capacity (Full Height)	2,391 lb (at pivot, NSL)	300CX: 1393 lb (at full height, measured at pivot)
Loader Breakout Force	At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf	H165: 3769 lbf; 320R: 3769 lbf; 300CX: 3769 lbf (at pivot point)

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	3-year / 2,000-hour limited warranty (as sold new)

Find a John Deere dealer near you

John Deere 4044M vs John Deere 4105: Quick Answers

Which has more horsepower, the John Deere 4044M or the John Deere 4105?

The John Deere 4044M leads on engine hp at 43.1 hp hp, compared to 41 hp hp for the John Deere 4105.

Which has more PTO horsepower, the John Deere 4044M or the John Deere 4105?

The John Deere 4044M leads on pto hp at 34.6 hp hp, compared to 32.5 hp hp for the John Deere 4105.

Which is heavier, the John Deere 4044M or the John Deere 4105?

The John Deere 4044M leads on weight at 3,770 lb lb, compared to 2,899 lb lb for the John Deere 4105.

Which has more loader lift capacity, the John Deere 4044M or the John Deere 4105?

The John Deere 4044M leads on loader lift at 2,391 lb lb, compared to 1,393 lb lb for the John Deere 4105.

Which has more three-point hitch lift capacity, the John Deere 4044M or the John Deere 4105?

The John Deere 4044M leads on 3-pt lift (24 in) at 2,500 lb lb, compared to 2,200 lb lb for the John Deere 4105.
