Bad Boy Tractors 4035 Cab vs John Deere 4105

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 5 categories to 4. Machine pages: Bad Boy Tractors 4035 Cab and John Deere 4105.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

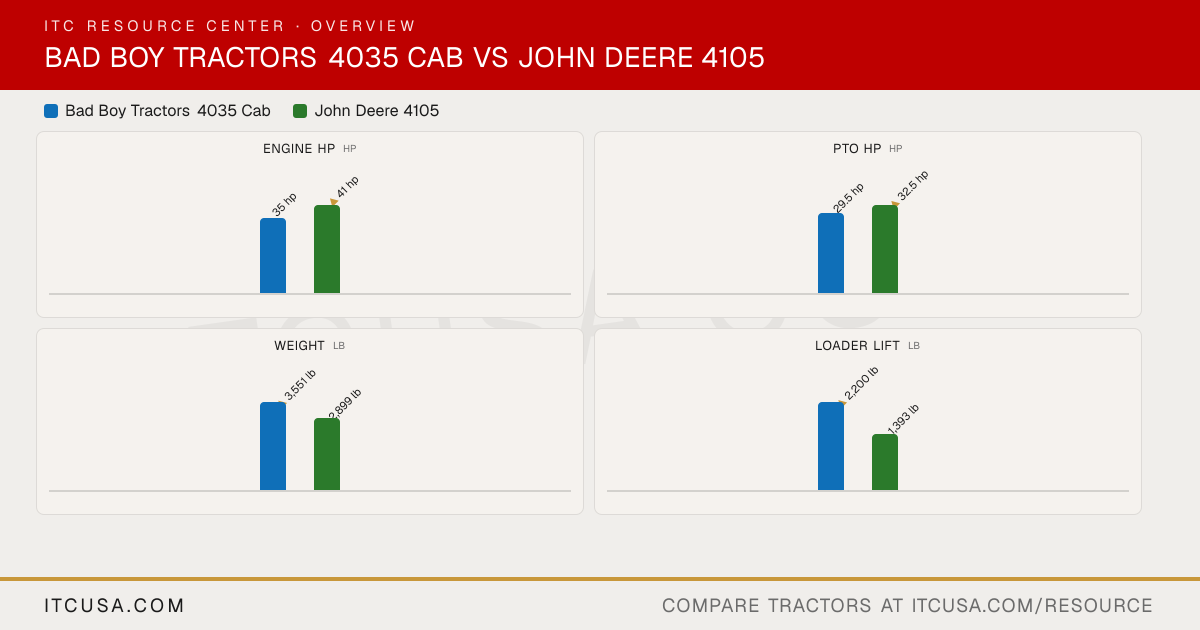

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	John Deere4105

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N4-BUTC_4	3TNV84T-KJT
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder turbocharged liquid-cooled diesel, direct injection
No. of Cylinders	3	3
Displacement	104.7 in³	91.5 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	35 hp	41 hp
PTO Power	29.5 hp	32.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry type with safety element
Fuel System	Not Published	Direct injection, self bleeding, in-line fuel pump with electric shutoff
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Not Published	Dual tandem gear pump
Implement Flow	8.2 gpm	9.2 gpm
Steering Flow	4.4 gpm	5.7 gpm
Total Hydraulic Flow	12.6 gpm	14.8 gpm
Overall Hydraulic Pump Flow	12.6 gpm	14.8 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	11.5 gal
Coolant Capacity	1.32 gal	1.4 gal
Crankcase Capacity	1.14 gal	4.5 qt
Transmission / Hydraulic System Capacity	9.77 gal	8.3 gal
Front Axle Fluid Capacity	1.69 gal	1.2 gal
▶PTO & Hitch
PTO Type	Independent	Independent, wet disk clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2200 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	2-range hydrostatic
No. of Speeds	3 range (HST)	Infinite forward and reverse, 2 ranges
Max Travel Speed (Forward)	18.21 mph	13 mph
Max Travel Speed (Reverse)	18.21 mph	12.6 mph
Clutch	None (HST)	Wet disk
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock (ball, ramp and pin)
▶Chassis, Steering & Controls
Frame Type	Not Published	Fixed ROPS; four-wheel drive standard
Steering	Electro-hydraulic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disk
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating	Not Published	3197 lb
Drawbar Capacity	Not Published	882 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	120.2 in
Overall Width	56.3 in	63 in (minimum, R1 rear tires); 65.8 in (maximum, R4 rear tires)
Wheelbase	65.7 in	68 in
Ground Clearance	13.19 in	14.7 in (front axle)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	87.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	2899 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 bar tread (8.00-16 front, 14.9-24 rear) or R4 industrial (10.0-16.5 front, 17.5L-24 rear)
R1 Agricultural - Front	7-16	8.00-16
R1 Agricultural - Rear	11.2-24	14.9-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	28x8.50-15	10.0-16.5
R4 Industrial - Rear	43x16.00-20	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL400	300CX
Loader Lift Height	104 in	H165: 103 in; 320R: 103 in
Loader Lift Capacity (Full Height)	2,200 lb	300CX: 1393 lb (at full height, measured at pivot)
Loader Breakout Force	3,660 lb	H165: 3769 lbf; 320R: 3769 lbf; 300CX: 3769 lbf (at pivot point)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	3-year / 2,000-hour limited warranty (as sold new)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 4035 Cab vs John Deere 4105: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the John Deere 4105?

The John Deere 4105 leads on engine hp at 41 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the John Deere 4105?

The John Deere 4105 leads on pto hp at 32.5 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the John Deere 4105?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 2,899 lb lb for the John Deere 4105.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the John Deere 4105?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,393 lb lb for the John Deere 4105.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the John Deere 4105?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,200 lb lb for the John Deere 4105.
