John Deere 4052R vs Kioti DK5010

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the John Deere 4052R, 4 to the Kioti DK5010. Machine pages: John Deere 4052R and Kioti DK5010.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere4052R	KiotiDK5010

▶Engine
PTO Power	40.8 hp	45.6 hp
Alternator	75 A, 12 V	Not Published
Air Cleaner	Dual element (dry type with safety element)	Not Published
Engine Type	Diesel	In-Line Vertical, Water-Cooled Turbo Diesel Engine, CRDI
Fuel System	High-pressure common rail direct injection	Common Rail Direct Injection (CRDI)
Displacement	127.6 in³	111.4 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid (water pump)	Water-cooled
Engine Manufacturer	Yanmar	KIOTI (Daedong)
Engine Power (Gross)	50.8 hp @ 600 rpm	50 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Single gear	Gear
Steering Flow	6.2 gpm	Not Published
Implement Flow	11.2 gpm	Not Published
Total Hydraulic Flow	17.4 gpm	14.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	17.4 gpm	14.5 gpm
No. of Optional Remote Valves	Up to 6 rear remotes	2
No. of Standard Remote Valves	Not Published	0
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent (electrohydraulic)	Independent
Lift Control Type	Position control	Position
Hitch Lift Capacity	3,130 lb	2,716 lbs (24 in aft. of hitch)
Mid-PTO Availability	Available	Not Published
Category, 3-Point Hitch	Category 1 (limited)	Category I
Hitch Lift Capacity (at 24”)	2,500 lb	2,716 lbs
▶Tire Options
R3 Turf - Rear	44X18.00-20 (4PR)	5.7 gal-16.1
R3 Turf - Front	27X10.50-15	29X12.5-15
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	420/85D24	14.9-24
R4 Industrial - Front	260/70D16.5	10-16.5
R1 Agricultural - Rear	13.6-28 (6PR) or 380/70R28 or 360/80R28	13.6-24
R1 Agricultural - Front	8.00-16 (10PR) or 280/70R16 or 250/75R16	8.0-16
▶Fluid Capacity
Coolant Capacity	Open station: 6.8 qt; Cab: 8.0 qt (if equipped)	Not Published
Crankcase Capacity	5.6 qt (with filter)	Not Published
Fuel Tank Capacity	Open station: 15.0 gal; Cab: 14.7 gal (if equipped)	11.9 gal
Front Axle Fluid Capacity	5.3 qt	Not Published
Transmission / Hydraulic System Capacity	12.5 gal	Not Published
▶Loader & Attachments
Loader Lift Height	112.1 in	109 in (to pivot pin)
Loader Breakout Force	At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf	3,900 lb (at pivot pin)
Quick Attach Loader System	Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable)	Built-in parking stand (quick attach/detach); single-lever joystick w/ float; bucket level indicator
Loader Lift Capacity (Full Height)	At pivot: 2,396 lb; @ 19.7 in ahead of pivot: 1,764 lb	2,660 lb (at pivot pins)
▶Transmission & Drivetrain
Clutch	Wet; wet clutch disk diameter 5.08 in	Dry type, single stage
No. of Speeds	eHydro: Infinitely-variable, 3 range; PowrReverser: 12F/12R	8F/8R
Transmission Type	Standard: eHydro (eHST), 3-range hydrostatic; Optional: 12/12 PowrReverser (PRT)	Synchronized H-Shuttle
Max Travel Speed (Forward)	18.6 mph	17.3 mph
Max Travel Speed (Reverse)	18.6 mph	16.9 mph
Differential Lock & Limited Slip Options	Differential lock: Yes	Rear differential lock (standard)
▶Chassis, Steering & Controls
Brakes	Multi-plate wet disc	Wet multi disc
Steering	Hydrostatic power steering	Hydrostatic power steering; tilt steering wheel
Frame Type	ROPS - Foldable	Not Published
Front Axle Type	Mechanical front wheel drive (MFWD) - Standard; engagement On-the-Go	Mechanical 4WD
Drawbar Capacity	Max vertical load 1103 lb	Not Published
Front Axle Rating	(Continuous) 3307 lb	Not Published
Seat Suspension & Adjustability	Air suspension seat with swivel	Adjustable suspension seat
▶Dimensions & Maneuverability
Wheelbase	73.0 in	71.3 in
Overall Width	78.2 in	62.8 in
Ground Clearance	Front axle: 15.6 in; Drawbar support: 14.8 in	15.2 in
Height to Top of ROPS	93.7 in	92.0 in
Height to Top of Cab Model	96.3 in	Not Published
Height to Top of ROPS (folded)	69.5 in	Not Published
Min. Turn Radius without Brakes	17.1 ft (5.2 m)	Not Published
Overall Length with 3-Point Hitch	130.6 in	124.3 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

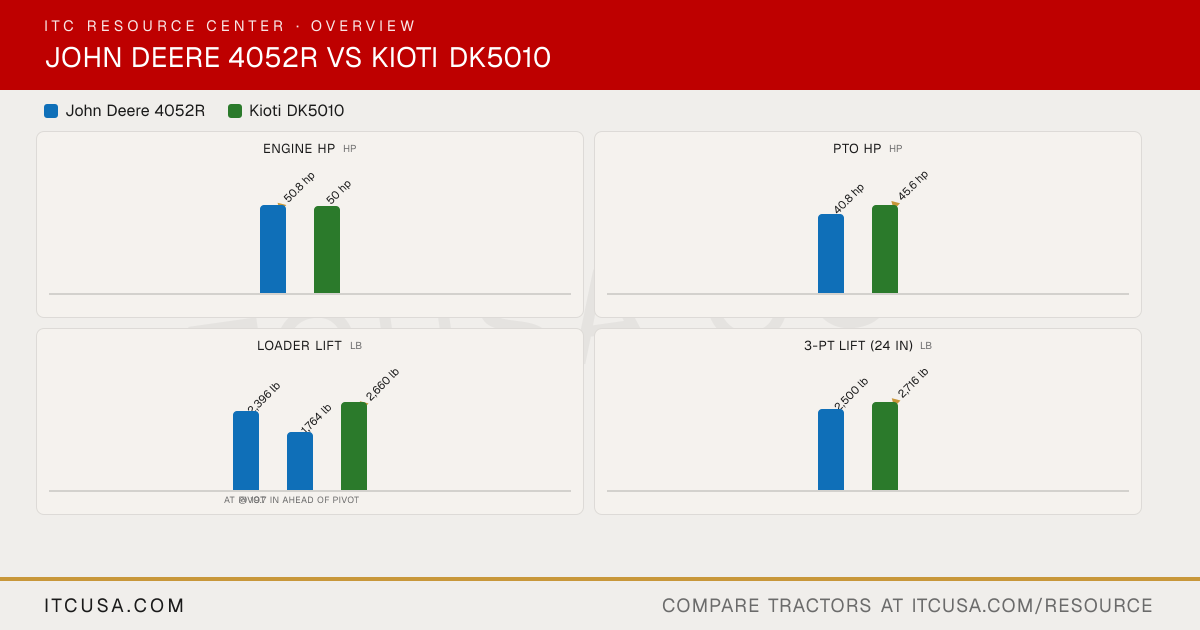

John Deere 4052R vs Kioti DK5010: Quick Answers

Which has more horsepower, the John Deere 4052R or the Kioti DK5010?

The John Deere 4052R leads on engine hp at 50.8 hp hp, compared to 50 hp hp for the Kioti DK5010.

Which has more PTO horsepower, the John Deere 4052R or the Kioti DK5010?

The Kioti DK5010 leads on pto hp at 45.6 hp hp, compared to 40.8 hp hp for the John Deere 4052R.

Which has more loader lift capacity, the John Deere 4052R or the Kioti DK5010?

The Kioti DK5010 leads on loader lift at 2,660 lb lb, compared to 2,396 lb lb for the John Deere 4052R.

Which has more three-point hitch lift capacity, the John Deere 4052R or the Kioti DK5010?

The Kioti DK5010 leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,500 lb lb for the John Deere 4052R.
