Bad Boy Tractors 5045 Cab vs John Deere 4052R

Across 8 measurable specs, the John Deere 4052R leads 5 categories to 3. Machine pages: Bad Boy Tractors 5045 Cab and John Deere 4052R.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

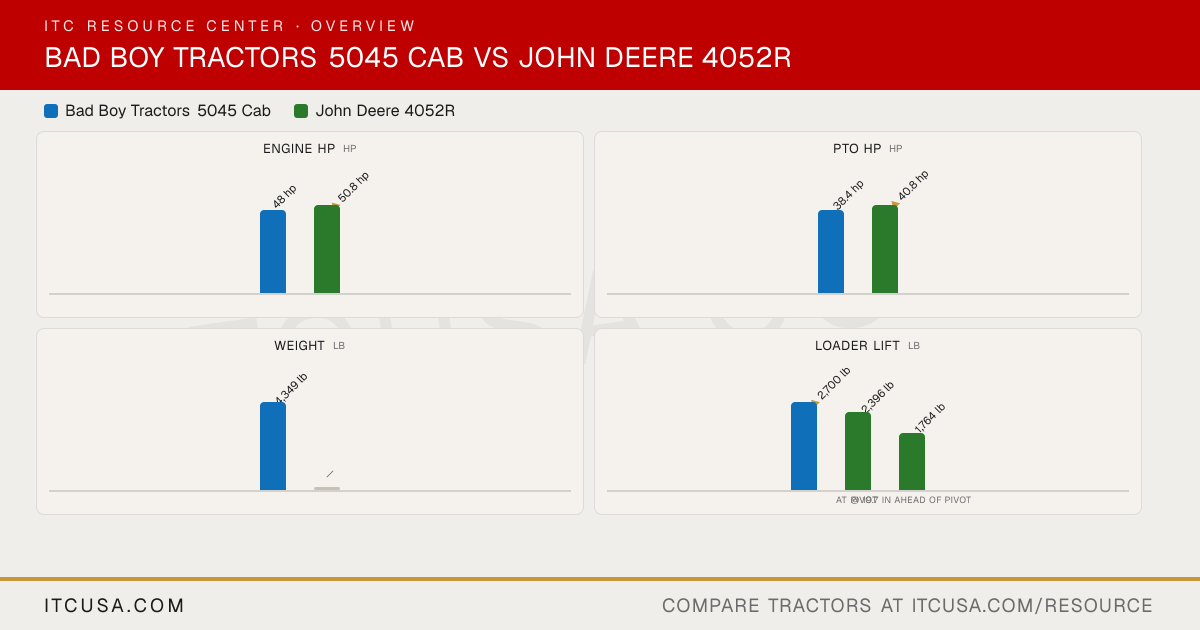

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	John Deere4052R

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A2300N3	4TNV86CT-MJT
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	Turbocharged 4-cylinder Diesel
No. of Cylinders	4	4
Displacement	139.5 in³	127.6 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	50.8 hp
PTO Power	38.4 hp	41.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dual element (dry type with safety element)
Fuel System	Not Published	High-pressure common rail direct injection
Alternator	70 A, 12 V	75 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual Independent
Implement Flow	10.7 gpm	10.2 gpm
Steering Flow	5 gpm	5.7 gpm
Total Hydraulic Flow	15.7 gpm	15.9 gpm
Overall Hydraulic Pump Flow	15.7 gpm	15.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	Not Published
No. of Optional Remote Valves	Not Published	3rd, 4th, and 5th optional (up to 5 total)
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	OOS: 15 gal; Cab: 14.7 gal
Coolant Capacity	1.56 gal	OOS: 6.8 qt; Cab: 8.0 qt
Crankcase Capacity	1.20 gal	5.6 qt (with filter)
Transmission / Hydraulic System Capacity	10.04 gal	12.5 gal
Front Axle Fluid Capacity	1.90 gal	5.3 qt
▶PTO & Hitch
PTO Type	Independent	Independent, 540 rpm (wet disc clutch)
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	No mid-PTO offered
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306 lb	3,130 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,500 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Standard: eHydro (3-range hydrostatic); Optional: 12F/12R PowrReverser
No. of Speeds	4 range (HST)	Infinitely-variable, 3 range
Max Travel Speed (Forward)	19.5 mph	18.6 mph
Max Travel Speed (Reverse)	19.5 mph	18.6 mph
Clutch	None (HST)	Wet disc (PowrReverser); n/a (eHydro)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential lock
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	ROPS - Foldable
Steering	Hydrostatic power steering	Power
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Deluxe adjustable vinyl seat with armrests and swivel
Front Axle Type	Selectable 4WD	Mechanical front wheel drive (MFWD) - Standard
Front Axle Rating	Not Published	(Continuous) 3,307 lb
Drawbar Capacity	Not Published	Max vertical load 1,103 lb
▶Dimensions & Maneuverability
Overall Width	64.9 in	78.2 in
Wheelbase	71.1 in	73.0 in
Ground Clearance	15.5 in	Front axle: 15.6 in
Min. Turn Radius without Brakes	9.18 ft (with brake applied)	17.1 ft
Height to Top of ROPS	Not Published	100.2 in
Height to Top of ROPS (folded)	Not Published	80.5 in
Height to Top of Cab Model	97.0 in	97.4 in
Overall Length	127.4 in (with 3-point hitch)	130.6 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	4,349 lb	3,770 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5-16	8-16 (6PR)
R1 Agricultural - Rear	13.6-26	13.6-28
R3 Turf - Front	Not Published	27X10.50-15
R3 Turf - Rear	Not Published	44X18.00-20 (4PR)
R4 Industrial - Front	Not Published	10-16.5 (6PR)
R4 Industrial - Rear	Not Published	16.9-24 (6PR)
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quik-Park easy-to-attach/detach loader
Loader Model	BBL500	440R or 440R MSL; 400E on open-station tractors
Loader Lift Height	106.6 in	440R: 110 in; 400E: 112 in (to pivot pin)
Loader Lift Capacity (Full Height)	2,700 lb (at pivot pin)	440R (H180): 2,539 lb; 440R MSL (H180MSL): 2,213 lb; 400E: 2,396 lb (at pivot, full height)
Loader Breakout Force	3,660 lb	400E: 3,853 lbf at pivot; 2,902 lbf at 500 mm forward of pivot; 440R (non self-leveling): 4,027 lbf at pivot; 3,037 lbf at 500 mm forward of pivot
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Basic 24 months or 2,000 hours; powertrain 72 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 5045 Cab vs John Deere 4052R: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the John Deere 4052R?

The John Deere 4052R leads on engine hp at 50.8 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the John Deere 4052R?

The John Deere 4052R leads on pto hp at 41.2 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.

Which is heavier, the Bad Boy Tractors 5045 Cab or the John Deere 4052R?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,770 lb lb for the John Deere 4052R.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the John Deere 4052R?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 2,539 lb lb for the John Deere 4052R.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the John Deere 4052R?

The John Deere 4052R leads on 3-pt lift (24 in) at 2,500 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
