John Deere 5045E vs TYM T474

Across 8 measurable specs, the John Deere 5045E leads 7 categories to 1. Machine pages: John Deere 5045E and TYM T474.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

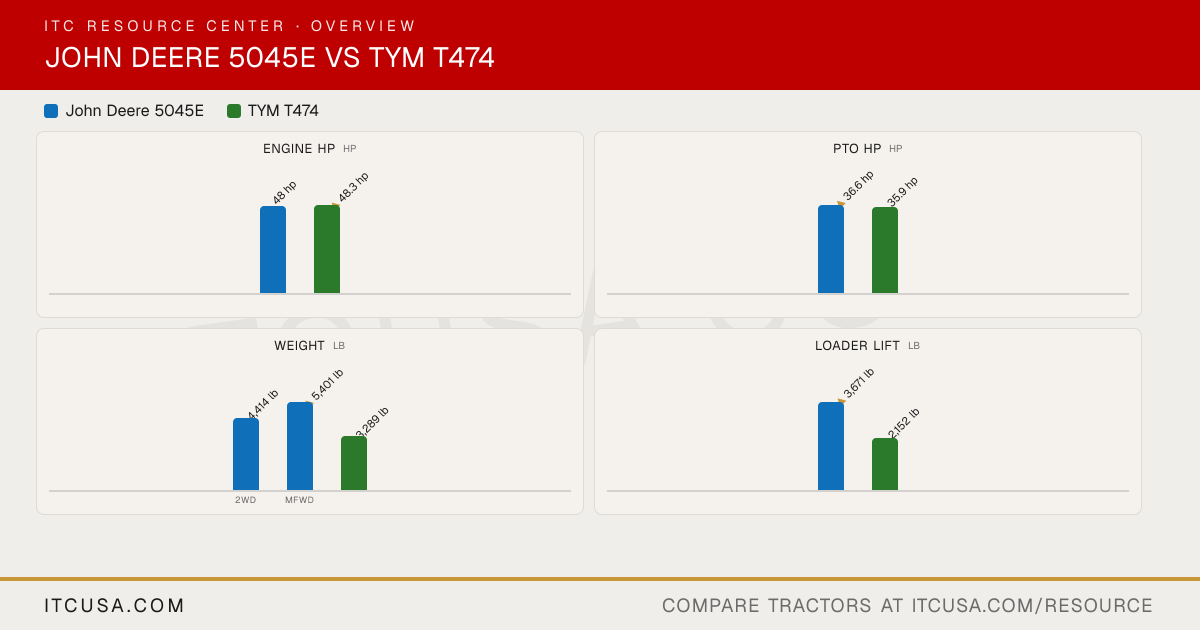

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5045E	TYMT474

▶Engine
Engine Manufacturer	John Deere	TYM
Engine Model	PowerTech 3029T	n/a
Engine Type	Diesel, turbocharged, liquid-cooled	4-cylinder, naturally aspirated diesel
No. of Cylinders	3	4
Displacement	179 in³	139.5 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	48 hp	48.3 hp
PTO Power	36.6 hp	35.9 hp
Engine Emissions Constraints	Tier 4	Stage V
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Two paper elements	Single dry
Fuel System	Not Published	IDI
Alternator	40 A	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	11.4 gpm	7.7 gpm
Steering Flow	6.8 gpm	4.2 gpm
Total Hydraulic Flow	18.2 gpm	11.9 gpm
Overall Hydraulic Pump Flow	18.2 gpm	11.9 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	18.0 gal	9.0 gal
Coolant Capacity	10 qt	6.9 qt
Crankcase Capacity	9 qt	6.8 qt
Transmission / Hydraulic System Capacity	10.3 gal	8.5 gal
Front Axle Fluid Capacity	4.8 qt	8.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category 2, convertible to 1	Category I
Hitch Lift Capacity	Not Published	2,689.6 lb
Hitch Lift Capacity (at 24”)	3,192 lb	1,764 lb
Lift Control Type	Position control with top link draft sensing	Position control
▶Transmission & Drivetrain
Transmission Type	SyncShuttle	Mechanical
No. of Speeds	9F/3R	F12 x R12
Max Travel Speed (Forward)	Not Published	14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry	Dry single plate
Differential Lock & Limited Slip Options	Mechanical, rear	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Hydraulic wet disc brakes	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	2WD or MFWD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	137.8 in	131 in
Overall Width	57.3 in	54.5 in
Wheelbase	80.7 in	69.7 in
Ground Clearance	2WD: 18.8 in; MFWD: 13.4 in	12.8 in
Min. Turn Radius without Brakes	138 in	117.5 in
Height to Top of ROPS	93.9 in	94.5 in
Height to Top of ROPS (folded)	75.7 in	Not Published
Height to Top of Cab Model	Not Published	Not Applicable
▶Weight
Tractor Weight (Base)	2WD: 4,414 lb; MFWD: 5,401 lb	n/a
Weight with ROPS and Loader	Not Published	4,310 lb
Weight with Cab and Loader	Not Published	Not Applicable
▶Tire Options
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	2WD: 7.5-16; MFWD: 9.5-24	Farm Specialist 8.0-16 NHS TL 6PR
R1 Agricultural - Rear	13.6-28	Farm Specialist 12.4-24 NHS TL 6PR
R3 Turf - Front	9.5-16	Multi-Trac CS 27x10.5-15 NHS TL 4PR
R3 Turf - Rear	21.5L-16.1	12.5x20
R4 Industrial - Front	12.5/80-18	Trac Chief 10-16.50 NHS TL 6PR
R4 Industrial - Rear	16.9-24	Xtra Grip 43x16.00-20 NHS TL 6PR
▶Loader & Attachments
Quick Attach Loader System	H240 (NSL or MSL)	TX47: Quick attachment (Skid/Euro type)
Loader Model	H240NSL	n/a
Loader Lift Height	131 in	105.6 in
Loader Lift Capacity (Full Height)	3,671 lb	2,152 lb
Loader Breakout Force	4,504 lb	3,198 lb
▶Warranty
Warranty Length & Coverage	Not Published	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶ITC Company Accessories
Accessories that fit	None tagged yet	TYM T474 Brush Guard Insert $249.99 A must have if you are working with brush. TYM T474 Hydraulic Valve Cover $184.99 Engineered to protect the exposed hydraulic valve. Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T474 Skid Plate $399.99 Major underside protection to save linkages, lines, valves, and filters.

Find a John Deere dealer near you→Find a TYM dealer near you→

John Deere 5045E vs TYM T474: Quick Answers

Which has more horsepower, the John Deere 5045E or the TYM T474?

The TYM T474 leads on engine hp at 48.3 hp hp, compared to 48 hp hp for the John Deere 5045E.

Which has more PTO horsepower, the John Deere 5045E or the TYM T474?

The John Deere 5045E leads on pto hp at 36.6 hp hp, compared to 35.9 hp hp for the TYM T474.

Which is heavier, the John Deere 5045E or the TYM T474?

The John Deere 5045E leads on weight at 5,401 lb lb, compared to 4,310 lb lb for the TYM T474.

Which has more loader lift capacity, the John Deere 5045E or the TYM T474?

The John Deere 5045E leads on loader lift at 3,671 lb lb, compared to 2,152 lb lb for the TYM T474.

Which has more three-point hitch lift capacity, the John Deere 5045E or the TYM T474?

The John Deere 5045E leads on 3-pt lift (24 in) at 3,192 lb lb, compared to 1,764 lb lb for the TYM T474.
