John Deere 5060E vs John Deere 5065E
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the John Deere 5065E leads 5 categories to 1 (2 tied). Machine pages: John Deere 5060E and John Deere 5065E.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

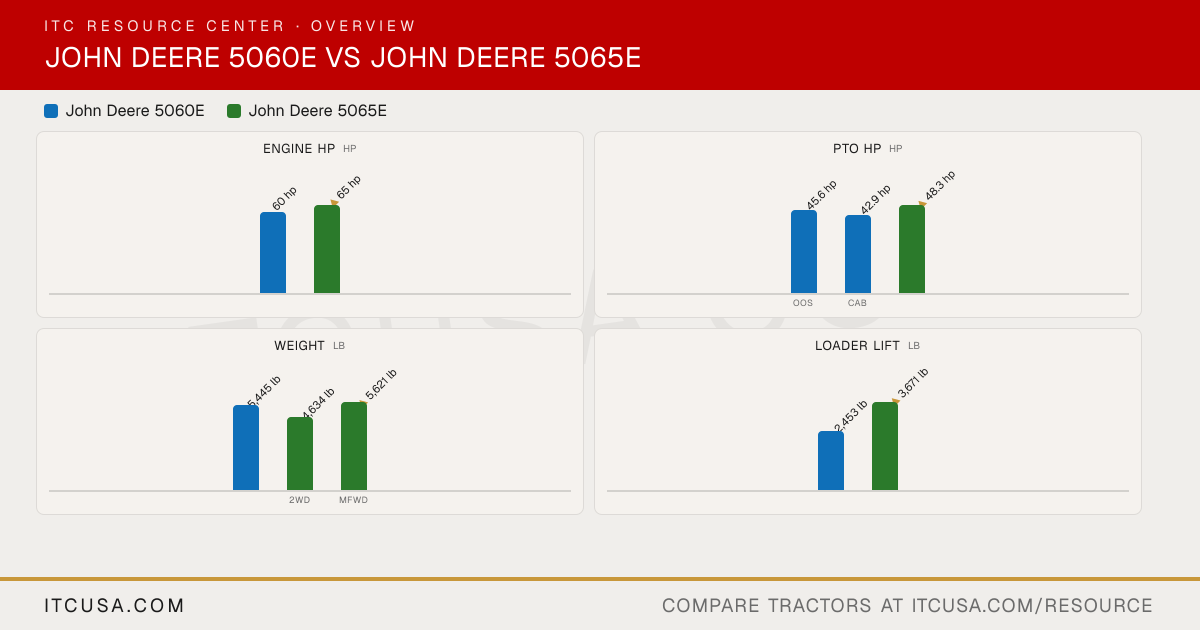

Category Verdict
| Spec | John Deere 5060E | John Deere 5065E |
|---|---|---|
| Engine HP (hp) | 60 hp | ▲ 65 hp |
| PTO HP (hp) | 45.6 hp | ▲ 48.3 hp |
| Weight (lb) | 5,445 lb | ▲ 5,621 lb |
| Loader Lift (lb) | 2,453 lb | ▲ 3,671 lb |
| 3-Pt Lift (24 in) (lb) | 3,192 lb | 3,192 lb |
| Lift Height (in) | 113 in | ▲ 131 in |
| Breakout Force (lbf) | ▲ 4,781 lbf | 4,504 lbf |
| Hydraulic Flow (gpm) | 18.2 gpm | 18.2 gpm |
| Travel Speed (mph) | 15.5 mph | n/a |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere5060E | John Deere5065E |
|---|
| Engine Manufacturer | John Deere | John Deere |
|---|---|---|
| Engine Model | 3029H | PowerTech 3029H |
| Engine Type | Diesel, turbocharged | Diesel, turbocharged, liquid-cooled |
| No. of Cylinders | 3 | 3 |
| Displacement | 179 in³ | 179 in³ |
| Rated Engine Speed | 2100 rpm | 2100 rpm |
| Engine Power (Gross) | 60 hp | 65 hp |
| PTO Power | OOS: 45.6 hp; Cab: 42.9 hp | 48.3 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry type with safety element | Two paper elements |
| Fuel System | Electronically controlled, high-pressure common rail | Not Published |
| Alternator | OOS: 70 A; Cab: 110 A | 40 A |
John Deere 5060E vs John Deere 5065E: Quick Answers
- Which has more horsepower, the John Deere 5060E or the John Deere 5065E?
- The John Deere 5065E leads on engine hp at 65 hp hp, compared to 60 hp hp for the John Deere 5060E.
- Which has more PTO horsepower, the John Deere 5060E or the John Deere 5065E?
- The John Deere 5065E leads on pto hp at 48.3 hp hp, compared to 45.6 hp hp for the John Deere 5060E.
- Which is heavier, the John Deere 5060E or the John Deere 5065E?
- The John Deere 5065E leads on weight at 5,621 lb lb, compared to 5,445 lb lb for the John Deere 5060E.
- Which has more loader lift capacity, the John Deere 5060E or the John Deere 5065E?
- The John Deere 5065E leads on loader lift at 3,671 lb lb, compared to 2,453 lb lb for the John Deere 5060E.
- Which has more three-point hitch lift capacity, the John Deere 5060E or the John Deere 5065E?
- They are effectively tied: both machines are rated at 3,192 lb lb for 3-pt lift (24 in).
