Kioti CK3510 vs Yanmar YT235C

Across 8 measurable specs, the Kioti CK3510 leads 7 categories to 1. Machine pages: Kioti CK3510 and Yanmar YT235C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCK3510	YanmarYT235C

▶Engine
PTO Power	30.8 hp	27 hp
Alternator	45 A, 12 V	55 A, 12 V
Air Cleaner	Not Published	Dual stage cyclonic (resin 5.5 in.)
Engine Type	Liquid-cooled, diesel, inline	3-cylinder, naturally aspirated diesel
Fuel System	Common rail direct injection	Common rail direct injection
Displacement	111.4 in³	100.2 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Liquid-cooled	Liquid cooled
Engine Manufacturer	KIOTI (Daedong)	YANMAR
Engine Power (Gross)	34.9 hp	34.2 hp
Engine Emissions Constraints	Not Published	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	3,823 lb
▶Warranty
Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
▶Hydraulics
Pump Type	Not Published	Not Published
Steering Flow	Not Published	4.1 gpm
Implement Flow	Not Published	7.1 gpm
Total Hydraulic Flow	11.7 gpm	11.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.7 gpm	11.2 gpm
No. of Optional Remote Valves	2 (optional)	Not Published
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Live	Independent (electro-hydraulic)
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,631 lb at 24 in	2,205 lb
Mid-PTO Availability	Optional	Standard
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	1,631 lb	1,764 lb
▶Tire Options
R3 Turf - Rear	41X14-20	13.6x16
R3 Turf - Front	28X8.50-15	25x8.5-14
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	15-19.5	15-19.6
R4 Industrial - Front	27X8.50-15	25x8.5-14
R1 Agricultural - Rear	11.2-24	9.5-22
R1 Agricultural - Front	7-16	6.0-14
▶Fluid Capacity
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	9.0 gal	7.4 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
▶Loader & Attachments
Loader Lift Height	98.4 in	84 in
Loader Breakout Force	3,464 lb	2,105 lb
Quick Attach Loader System	Quick attach (QA) bucket	YL310: Skid steer style bucket attachment
Loader Lift Capacity (Full Height)	1,835 lb	1,300 lb
▶Transmission & Drivetrain
Clutch	Dry disc (TractorData)	N/A (hydrostatic)
No. of Speeds	Gear: 9F/3R; Hydro: Not Published	Unlimited (hydrostatic); 3 ranges
Transmission Type	9-speed gear; hydrostatic	Hydrostatic (Dual Touch Pedal)
Max Travel Speed (Forward)	Gear: 14.6 mph; Hydro: 15.5 mph	11.7 mph (with R4 tires)
Max Travel Speed (Reverse)	Gear: 9.6 mph; Hydro: 15.8 mph	8.2 mph (with R4 tires)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (foot pedal engagement)
▶Chassis, Steering & Controls
Brakes	Wet disc	Wet disc
Steering	Power steering	Fully hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Selectable 4WD (2WD/4WD engagement)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7 in	65 in
Overall Width	R1: 55.1 in; R4: 63.1 in	58.3 in (with R4 tires)
Ground Clearance	13.4 in	10.8 in (with R4 tires)
Height to Top of ROPS	99.2 in	Not Applicable
Height to Top of Cab Model	91.7 in	83.6 in (with R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	120.9 in	116.9 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet

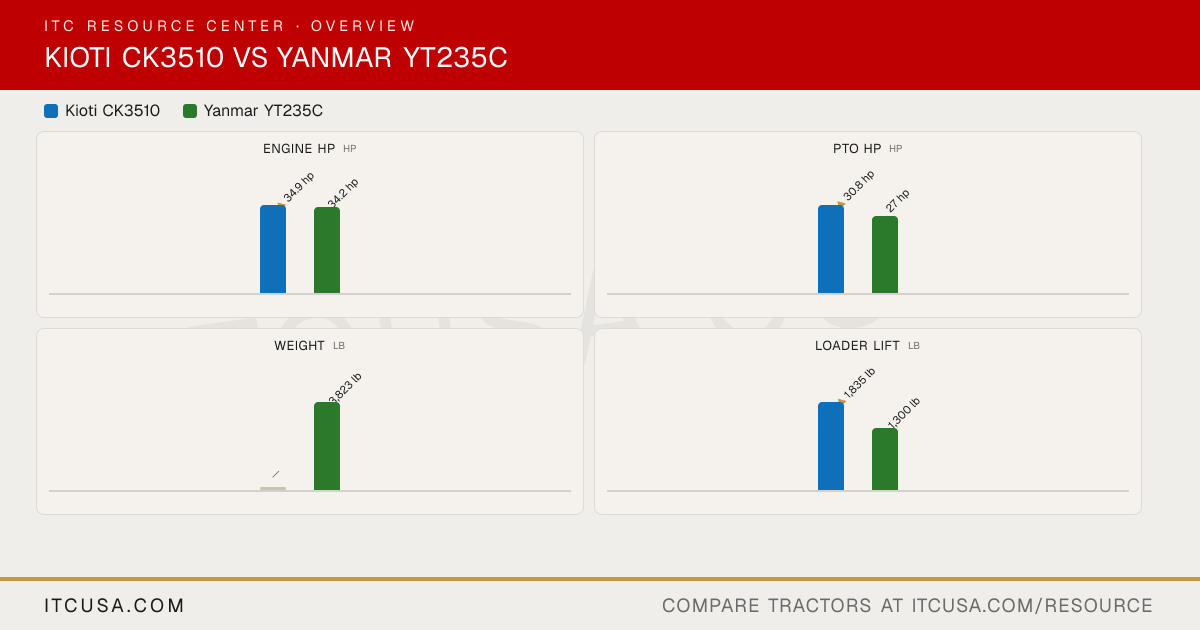

Kioti CK3510 vs Yanmar YT235C: Quick Answers

Which has more horsepower, the Kioti CK3510 or the Yanmar YT235C?

The Kioti CK3510 leads on engine hp at 34.9 hp hp, compared to 34.2 hp hp for the Yanmar YT235C.

Which has more PTO horsepower, the Kioti CK3510 or the Yanmar YT235C?

The Kioti CK3510 leads on pto hp at 30.8 hp hp, compared to 27 hp hp for the Yanmar YT235C.

Which has more loader lift capacity, the Kioti CK3510 or the Yanmar YT235C?

The Kioti CK3510 leads on loader lift at 1,835 lb lb, compared to 1,300 lb lb for the Yanmar YT235C.

Which has more three-point hitch lift capacity, the Kioti CK3510 or the Yanmar YT235C?

The Yanmar YT235C leads on 3-pt lift (24 in) at 1,764 lb lb, compared to 1,631 lb lb for the Kioti CK3510.
