Kioti CK3520 vs Kioti CK4020

Across 9 measurable specs, the Kioti CK4020 leads 2 categories to 0 (7 tied). Machine pages: Kioti CK3520 and Kioti CK4020.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

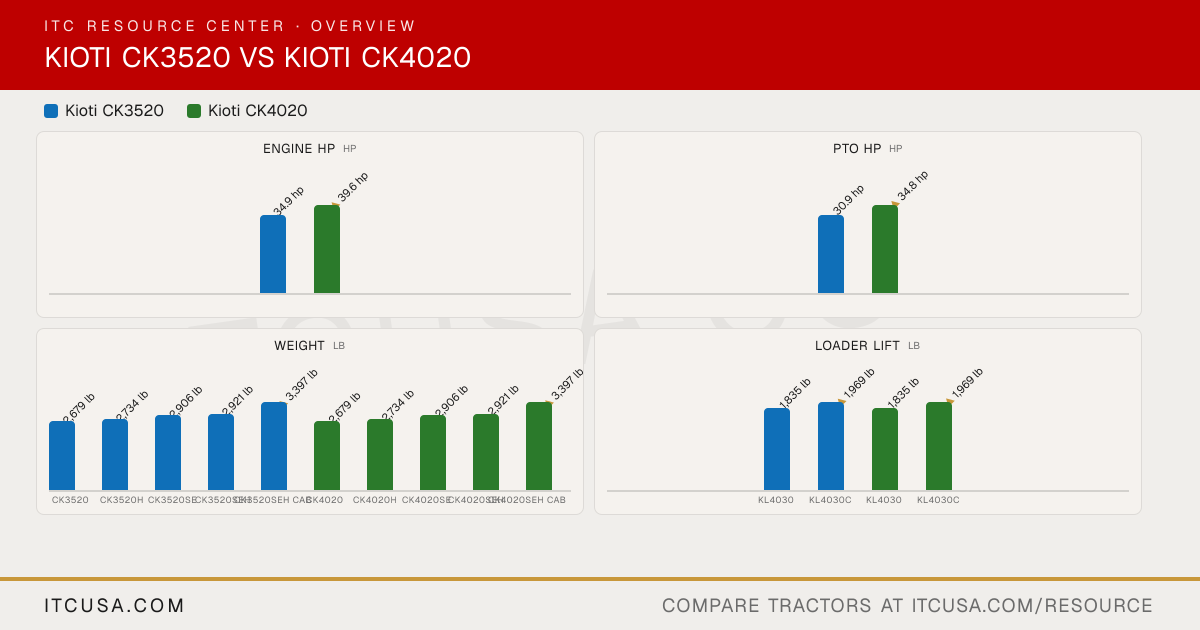

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCK3520	KiotiCK4020

▶Engine
Engine Manufacturer	KIOTI	KIOTI
Engine Model	CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2	CK4020: 3H-TM4-U; CK4020H: 3H-TH4-U; CK4020SE, CK4020SEH, CK4020SEH CAB: 3H-TM4-U2 / 3H-TH4-U2
Engine Type	3-cylinder, in-line, liquid-cooled diesel	3-cylinder, in-line, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34.9 hp	39.6 hp
PTO Power	CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp	CK4020, CK4020SE: 34.8 hp; CK4020H, CK4020SEH, CK4020SEH CAB: 33.3 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry element
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Gear	Gear
Implement Flow	CK3520, CK3520H: 7.14 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 6.86 gpm	CK4020, CK4020H: 7.14 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 6.86 gpm
Steering Flow	CK3520, CK3520H: 4.59 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 4.46 gpm	CK4020, CK4020H: 4.59 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 4.46 gpm
Total Hydraulic Flow	CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm	CK4020, CK4020H: 11.73 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 11.33 gpm
Overall Hydraulic Pump Flow	CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm	CK4020, CK4020H: 11.73 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 11.33 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	CK3520, CK3520H: 0; CK3520SE, CK3520SEH, CK3520SEH CAB: 2	CK4020, CK4020H: 0; CK4020SE, CK4020SEH, CK4020SEH CAB: 2
No. of Optional Remote Valves	CK3520, CK3520H: 2	CK4020, CK4020H: 2
▶Fluid Capacity
Fuel Tank Capacity	9.0 gal	9.0 gal
Coolant Capacity	0.89 gal	0.89 gal
Crankcase Capacity	1.6 gal	1.6 gal
Transmission / Hydraulic System Capacity	5.8 gal	5.8 gal
Front Axle Fluid Capacity	1.6 gal	1.6 gal
▶PTO & Hitch
PTO Type	CK3520, CK3520H: Live; CK3520SE, CK3520SEH, CK3520SEH CAB: Independent	CK4020, CK4020H: Live; CK4020SE, CK4020SEH, CK4020SEH CAB: Independent
PTO Rear	540 rpm (1-3/8 in, 6 splines)	540 rpm (1-3/8 in, 6 splines)
Mid-PTO Availability	Optional, 2,000 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,270 lb	2,270 lb
Hitch Lift Capacity (at 24”)	1,631 lb	1,631 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	CK3520: Manual; CK3520H, CK3520SEH, CK3520SEH CAB: Hydrostatic; CK3520SE: Synchro shuttle	CK4020: Manual; CK4020H, CK4020SEH, CK4020SEH CAB: Hydrostatic; CK4020SE: Synchro shuttle
No. of Speeds	CK3520: 9F/3R; CK3520H, CK3520SEH, CK3520SEH CAB: Infinite, 3 range; CK3520SE: 12F/12R	CK4020: 9F/3R; CK4020H, CK4020SEH, CK4020SEH CAB: Infinite, 3 range; CK4020SE: 12F/12R
Max Travel Speed (Forward)	CK3520: 14.64 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 14.88 mph; CK3520SE: 15.53 mph	CK4020: 14.64 mph; CK4020H, CK4020SEH, CK4020SEH CAB: 14.88 mph; CK4020SE: 15.53 mph
Max Travel Speed (Reverse)	CK3520: 9.56 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 10.41 mph; CK3520SE: 15.14 mph	CK4020: 9.56 mph; CK4020H, CK4020SEH, CK4020SEH CAB: 10.41 mph; CK4020SE: 15.14 mph
Clutch	CK3520: Dry dual stage; CK3520H, CK3520SE: Dry single stage; CK3520SEH, CK3520SEH CAB: None (hydrostatic)	CK4020: Dry dual stage; CK4020H, CK4020SE: Dry single stage; CK4020SEH, CK4020SEH CAB: None (hydrostatic)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD, manual engagement	4WD, manual engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	120.9 in	120.9 in
Overall Width	54.5 in	54.5 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	13.4 in	13.4 in
Min. Turn Radius without Brakes	107.5 in	107.5 in
Height to Top of ROPS	92.9 in	92.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	92.5 in	92.5 in
▶Weight
Tractor Weight (Base)	CK3520: 2,679 lb; CK3520H: 2,734 lb; CK3520SE: 2,906 lb; CK3520SEH: 2,921 lb; CK3520SEH CAB: 3,397 lb	CK4020: 2,679 lb; CK4020H: 2,734 lb; CK4020SE: 2,906 lb; CK4020SEH: 2,921 lb; CK4020SEH CAB: 3,397 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)
R1 Agricultural - Front	7-16	7-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	28x8.5-15/6	28x8.5-15/6
R3 Turf - Rear	41x14-20/4	41x14-20/4
R4 Industrial - Front	27x8.5-15	27x8.5-15
R4 Industrial - Rear	15-19.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Not Published	Not Published
Loader Model	KL4030; KL4030C	KL4030; KL4030C
Loader Lift Height	98.4 in (KL4030 and KL4030C loaders)	98.4 in (KL4030 and KL4030C loaders)
Loader Lift Capacity (Full Height)	KL4030: 1,835 lb; KL4030C: 1,969 lb	KL4030: 1,835 lb; KL4030C: 1,969 lb
Loader Breakout Force	KL4030: 3,464 lb; KL4030C: 2,989 lb	KL4030: 3,464 lb; KL4030C: 2,989 lb
▶Warranty
Warranty Length & Coverage	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor
▶ITC Company Accessories
Accessories that fit	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a KIOTI dealer near you→

Kioti CK3520 vs Kioti CK4020: Quick Answers

Which has more horsepower, the Kioti CK3520 or the Kioti CK4020?

The Kioti CK4020 leads on engine hp at 39.6 hp hp, compared to 34.9 hp hp for the Kioti CK3520.

Which has more PTO horsepower, the Kioti CK3520 or the Kioti CK4020?

The Kioti CK4020 leads on pto hp at 34.8 hp hp, compared to 30.9 hp hp for the Kioti CK3520.

Which is heavier, the Kioti CK3520 or the Kioti CK4020?

They are effectively tied: both machines are rated at 3,397 lb lb for weight.

Which has more loader lift capacity, the Kioti CK3520 or the Kioti CK4020?

They are effectively tied: both machines are rated at 1,969 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kioti CK3520 or the Kioti CK4020?

They are effectively tied: both machines are rated at 1,631 lb lb for 3-pt lift (24 in).
