Bad Boy Tractors 5045 Cab vs Kioti CK4020

Across 9 measurable specs, the Bad Boy Tractors 5045 Cab leads 9 categories to 0. Machine pages: Bad Boy Tractors 5045 Cab and Kioti CK4020.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	KiotiCK4020

▶Engine
Engine Manufacturer	TYM	KIOTI
Engine Model	A2300N3	CK4020: 3H-TM4-U; CK4020H: 3H-TH4-U; CK4020SE, CK4020SEH, CK4020SEH CAB: 3H-TM4-U2 / 3H-TH4-U2
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	3-cylinder, in-line, liquid-cooled diesel
No. of Cylinders	4	3
Displacement	139.5 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	39.6 hp
PTO Power	38.4 hp	CK4020, CK4020SE: 34.8 hp; CK4020H, CK4020SEH, CK4020SEH CAB: 33.3 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry element
Fuel System	Not Published	Not Published
Alternator	70 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	10.7 gpm	CK4020, CK4020H: 7.14 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 6.86 gpm
Steering Flow	5 gpm	CK4020, CK4020H: 4.59 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 4.46 gpm
Total Hydraulic Flow	15.7 gpm	CK4020, CK4020H: 11.73 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 11.33 gpm
Overall Hydraulic Pump Flow	15.7 gpm	CK4020, CK4020H: 11.73 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 11.33 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	CK4020, CK4020H: 0; CK4020SE, CK4020SEH, CK4020SEH CAB: 2
No. of Optional Remote Valves	Not Published	CK4020, CK4020H: 2
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	9.0 gal
Coolant Capacity	1.56 gal	0.89 gal
Crankcase Capacity	1.20 gal	1.6 gal
Transmission / Hydraulic System Capacity	10.04 gal	5.8 gal
Front Axle Fluid Capacity	1.90 gal	1.6 gal
▶PTO & Hitch
PTO Type	Independent	CK4020, CK4020H: Live; CK4020SE, CK4020SEH, CK4020SEH CAB: Independent
PTO Rear	540 / 540E rpm	540 rpm (1-3/8 in, 6 splines)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306 lb	2,270 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,631 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	CK4020: Manual; CK4020H, CK4020SEH, CK4020SEH CAB: Hydrostatic; CK4020SE: Synchro shuttle
No. of Speeds	4 range (HST)	CK4020: 9F/3R; CK4020H, CK4020SEH, CK4020SEH CAB: Infinite, 3 range; CK4020SE: 12F/12R
Max Travel Speed (Forward)	19.5 mph	CK4020: 14.64 mph; CK4020H, CK4020SEH, CK4020SEH CAB: 14.88 mph; CK4020SE: 15.53 mph
Max Travel Speed (Reverse)	19.5 mph	CK4020: 9.56 mph; CK4020H, CK4020SEH, CK4020SEH CAB: 10.41 mph; CK4020SE: 15.14 mph
Clutch	None (HST)	CK4020: Dry dual stage; CK4020H, CK4020SE: Dry single stage; CK4020SEH, CK4020SEH CAB: None (hydrostatic)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	4WD, manual engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	120.9 in
Overall Width	64.9 in	54.5 in
Wheelbase	71.1 in	65.7 in
Ground Clearance	15.5 in	13.4 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	107.5 in
Height to Top of ROPS	Not Published	92.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	92.5 in
▶Weight
Tractor Weight (Base)	4,349 lb	CK4020: 2,679 lb; CK4020H: 2,734 lb; CK4020SE: 2,906 lb; CK4020SEH: 2,921 lb; CK4020SEH CAB: 3,397 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)
R1 Agricultural - Front	9.5-16	7-16
R1 Agricultural - Rear	13.6-26	11.2-24
R3 Turf - Front	Not Published	28x8.5-15/6
R3 Turf - Rear	Not Published	41x14-20/4
R4 Industrial - Front	Not Published	27x8.5-15
R4 Industrial - Rear	Not Published	15-19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL500	KL4030; KL4030C
Loader Lift Height	106.6 in	98.4 in (KL4030 and KL4030C loaders)
Loader Lift Capacity (Full Height)	2,700 lb	KL4030: 1,835 lb; KL4030C: 1,969 lb
Loader Breakout Force	3,660 lb	KL4030: 3,464 lb; KL4030C: 2,989 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

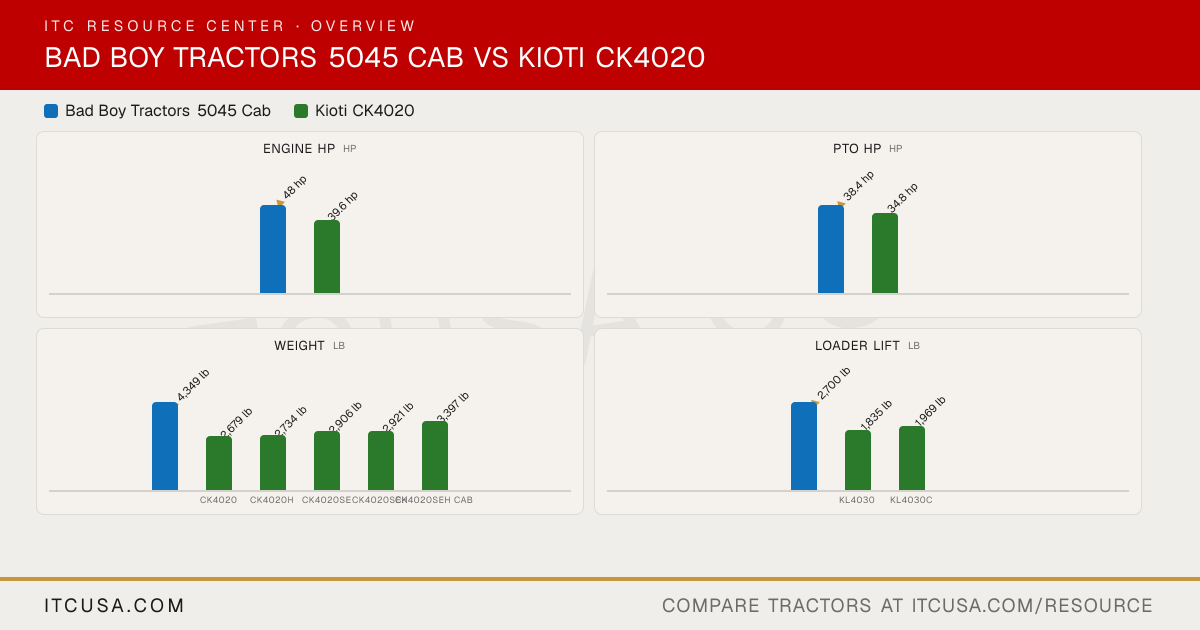

Bad Boy Tractors 5045 Cab vs Kioti CK4020: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Kioti CK4020?

The Bad Boy Tractors 5045 Cab leads on engine hp at 48 hp hp, compared to 39.6 hp hp for the Kioti CK4020.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Kioti CK4020?

The Bad Boy Tractors 5045 Cab leads on pto hp at 38.4 hp hp, compared to 34.8 hp hp for the Kioti CK4020.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Kioti CK4020?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,397 lb lb for the Kioti CK4020.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Kioti CK4020?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 1,969 lb lb for the Kioti CK4020.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Kioti CK4020?

The Bad Boy Tractors 5045 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,631 lb lb for the Kioti CK4020.
