Kioti CK3520 vs Kubota LX3520DTN

Across 6 measurable specs, the Kioti CK3520 leads 3 categories to 2 (1 tied). Machine pages: Kioti CK3520 and Kubota LX3520DTN.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

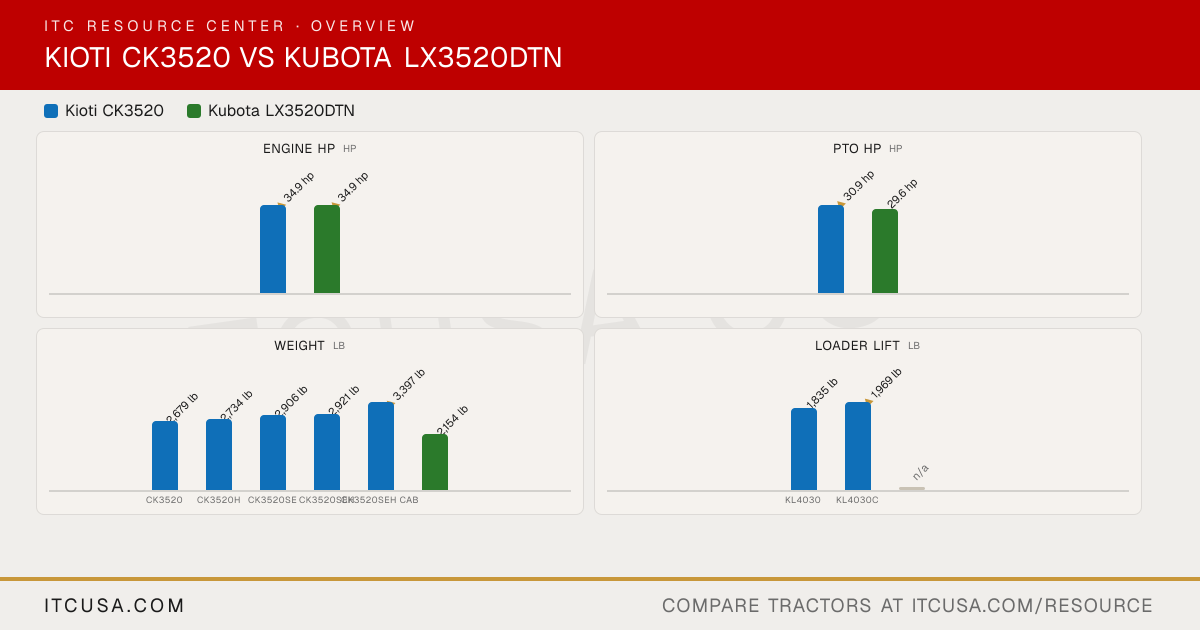

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCK3520	KubotaLX3520DTN

▶Engine
Engine Manufacturer	KIOTI	Kubota
Engine Model	CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2	V1505-CR-TE5-D40R6
Engine Type	3-cylinder, in-line, liquid-cooled diesel	Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
No. of Cylinders	3	4
Displacement	111.4 in³	91.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34.9 hp	34.9 hp
PTO Power	CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp	29.6 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Pressurized radiator
Air Cleaner	Dry element	6 in paper filter (with dual element)
Fuel System	Not Published	Direct injection
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Gear	Dual pump
Implement Flow	CK3520, CK3520H: 7.14 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 6.86 gpm	5.2 gpm
Steering Flow	CK3520, CK3520H: 4.59 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 4.46 gpm	Not Published
Total Hydraulic Flow	CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm	9.1 gpm
Overall Hydraulic Pump Flow	CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm	9.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	CK3520, CK3520H: 0; CK3520SE, CK3520SEH, CK3520SEH CAB: 2	0
No. of Optional Remote Valves	CK3520, CK3520H: 2	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	9.0 gal	8.5 gal
Coolant Capacity	0.89 gal	4.5 qt
Crankcase Capacity	1.6 gal	5.0 qt
Transmission / Hydraulic System Capacity	5.8 gal	5.5 gal
Front Axle Fluid Capacity	1.6 gal	4.8 qt
▶PTO & Hitch
PTO Type	CK3520, CK3520H: Live; CK3520SE, CK3520SEH, CK3520SEH CAB: Independent	Independent
PTO Rear	540 rpm (1-3/8 in, 6 splines)	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,270 lb	2348 lb
Hitch Lift Capacity (at 24”)	1,631 lb	1819 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	CK3520: Manual; CK3520H, CK3520SEH, CK3520SEH CAB: Hydrostatic; CK3520SE: Synchro shuttle	Gear
No. of Speeds	CK3520: 9F/3R; CK3520H, CK3520SEH, CK3520SEH CAB: Infinite, 3 range; CK3520SE: 12F/12R	12 forward, 12 reverse
Max Travel Speed (Forward)	CK3520: 14.64 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 14.88 mph; CK3520SE: 15.53 mph	14.7 mph
Max Travel Speed (Reverse)	CK3520: 9.56 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 10.41 mph; CK3520SE: 15.14 mph	14.6 mph
Clutch	CK3520: Dry dual stage; CK3520H, CK3520SE: Dry single stage; CK3520SEH, CK3520SEH CAB: None (hydrostatic)	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Multi-plate wet disk
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD, manual engagement	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	120.9 in	98.2 in (without 3-point hitch)
Overall Width	54.5 in	39.4 in
Wheelbase	65.7 in	61.0 in
Ground Clearance	13.4 in	12.8 in
Min. Turn Radius without Brakes	107.5 in	7.5 ft (with brake applied)
Height to Top of ROPS	92.9 in	84.0 in
Height to Top of ROPS (folded)	Not Published	56.7 in
Height to Top of Cab Model	92.5 in	85.6 in
▶Weight
Tractor Weight (Base)	CK3520: 2,679 lb; CK3520H: 2,734 lb; CK3520SE: 2,906 lb; CK3520SEH: 2,921 lb; CK3520SEH CAB: 3,397 lb	2154 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)	R1 Agricultural
R1 Agricultural - Front	7-16	6-14
R1 Agricultural - Rear	11.2-24	8.3-24
R3 Turf - Front	28x8.5-15/6	Not Published
R3 Turf - Rear	41x14-20/4	Not Published
R4 Industrial - Front	27x8.5-15	Not Published
R4 Industrial - Rear	15-19.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Not Published	Not Published
Loader Model	KL4030; KL4030C	Not Published
Loader Lift Height	98.4 in (KL4030 and KL4030C loaders)	Not Published
Loader Lift Capacity (Full Height)	KL4030: 1,835 lb; KL4030C: 1,969 lb	Not Published
Loader Breakout Force	KL4030: 3,464 lb; KL4030C: 2,989 lb	Not Published
▶Warranty
Warranty Length & Coverage	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet

Find a KIOTI dealer near you→Find a Kubota dealer near you→

Kioti CK3520 vs Kubota LX3520DTN: Quick Answers

Which has more horsepower, the Kioti CK3520 or the Kubota LX3520DTN?

They are effectively tied: both machines are rated at 34.9 hp hp for engine hp.

Which has more PTO horsepower, the Kioti CK3520 or the Kubota LX3520DTN?

The Kioti CK3520 leads on pto hp at 30.9 hp hp, compared to 29.6 hp hp for the Kubota LX3520DTN.

Which is heavier, the Kioti CK3520 or the Kubota LX3520DTN?

The Kioti CK3520 leads on weight at 3,397 lb lb, compared to 2,154 lb lb for the Kubota LX3520DTN.

Which has more three-point hitch lift capacity, the Kioti CK3520 or the Kubota LX3520DTN?

The Kubota LX3520DTN leads on 3-pt lift (24 in) at 1,819 lb lb, compared to 1,631 lb lb for the Kioti CK3520.
