Kioti CX2510 vs Mahindra 1120

Across 9 measurable specs, the Kioti CX2510 leads 5 categories to 4. Machine pages: Kioti CX2510 and Mahindra 1120.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

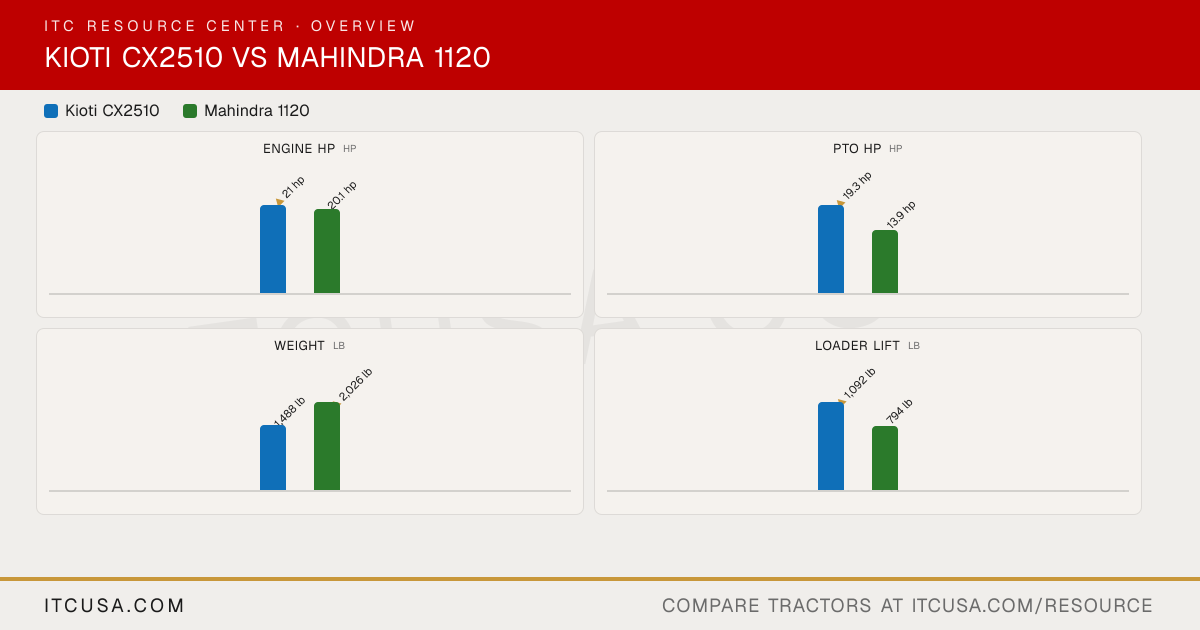

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCX2510	Mahindra1120

▶Engine
PTO Power	19.3 hp	13.9 hp
Engine Type	S204.2 gal-F	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Fuel System	Diesel fuel (ultra-low sulfur diesel, sulfur content: 15 ppm or less)	Indirect Injection
Displacement	69 in³	67.2 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	2900 rpm
Cooling System Type	Liquid cooled	Water-Cooled
Engine Manufacturer	Daedong Industrial Co., LTD	Mitsubishi
Engine Power (Gross)	21 hp	20.1 hp @ 900 rpm
Alternator	—	55 A, 12 V
Air Cleaner	—	Not Published
Engine Emissions Constraints	—	No DPF
▶Weight
Tractor Weight (Base)	1,488 lbs with ROPS	—
Weight with Cab and Loader	2,804 lb	Not Applicable
Weight with ROPS and Loader	2,308 lb	2026 lb
▶Warranty
Warranty Length & Coverage	6 year powertrain warranty	7-Year Limited Powertrain Warranty
▶Hydraulics
Pump Type	Variable displacement pump	Not Published
Steering Flow	4.4 qts 1.1 gal	3.8 gpm
Implement Flow	6.86 gpm	7.6 gpm
Total Hydraulic Flow	11.3 gpm	11.4 gpm
Hydraulic System Type	open center	Open Center, full-live hydraulic with position control
System Operating Pressure	Not specified in document	—
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	11.3 gpm	11.4 gpm
No. of Optional Remote Valves	1	Single or dual
No. of Standard Remote Valves	1 Optional (CX2510/CX2510 HST); 1 Standard (CX2510 HST CAB)	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm @ 2837 rpm
PTO Type	Transmission (CX2510); Live (CX2510 HST/CAB)	Independent Wet Clutch
Lift Control Type	Position	Position Control
Hitch Lift Capacity	1,203 lb.	Not Published
Mid-PTO Availability	2,000 rpm (Option on CX2510/CX2510H); 2,000 rpm (Standard on CX2510 HST CAB)	Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch	Category I	CAT I with check chains
Hitch Lift Capacity (at 24”)	700 lbs	771 lb
▶Tire Options
R3 Turf - Rear	33×12.5-16.5	26X12-12
R3 Turf - Front	23×8.5-12	18X8.5-10
Tire Size & Options	Front: 7.0-12 (AG), 23×8.5-12 (Turf/Industrial); Rear: 11.2-16 (AG), 33×12.5-16.5 (Turf), 12-16.5 (Industrial)	R3 Turf, R4 Industrial
R4 Industrial - Rear	12-16.5	26X12-12
R4 Industrial - Front	23×8.5-12	18X8.5-10
R1 Agricultural - Rear	11.2-16	Not Published
R1 Agricultural - Front	7.0-12	Not Published
▶Fluid Capacity
Coolant Capacity	1.0 U.S. gal	Not Published
Crankcase Capacity	0.8 U.S. gal	Not Published
Fuel Tank Capacity	6.60 gal	6.6 gal
Transmission / Hydraulic System Capacity	3.4 U.S. gal	Not Published
Front Axle Fluid Capacity	—	Not Published
▶Loader & Attachments
Loader Lift Height	87.8 in.	68 in
Loader Breakout Force	1,843 lbs.	1433 lb
Quick Attach Loader System	Quick attach bucket, 50 in.	L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
Loader Lift Capacity (Full Height)	1,092 lbs.	794 lb
▶Transmission & Drivetrain
Clutch	Dry single	Not Applicable
No. of Speeds	6F/2R [CX2510] / Infinite, 2 range [CX2510 HST]	Infinite / 2 ranges
Transmission Type	Manual [CX2510] / Hydrostatic [CX2510 HST]	HST
Max Travel Speed (Forward)	0.75-10.8 mph (1.22-11.8 mph) [Manual]; 0-10.7 mph (0-13.5 mph) [HST]	7.3 mph
Max Travel Speed (Reverse)	0.92-4.2 mph (1.51-4.6 mph) [Manual]; 0-7.46 mph (0-9.5 mph) [HST]	Not Published
Differential Lock & Limited Slip Options	Rear Standard	Not Published
▶Chassis, Steering & Controls
Brakes	Wet Disc Type	Single Pedal
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Front Axle Type	Four-wheel drive	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat with dual armrests and seat belt	Not Published
Frame Type	—	Not Published
Drawbar Capacity	—	Not Published
Front Axle Rating	—	Not Published
▶Dimensions & Maneuverability
Wheelbase	59.8 in.	55.1 in
Overall Width	49.4 in.	46.3 in
Overall Length	110.25 in with weights; 99.33 in without weights	—
Ground Clearance	13.4 in.	6.7 in
Height to Top of ROPS	82.8 in.	86.6 in
Height to Top of Cab Model	86.6 in.	Not Applicable
Height to Top of ROPS (folded)	82.8 in.	Not Published
Min. Turn Radius without Brakes	9 ft (2.75 m)	Not Published
Overall Length with 3-Point Hitch	109.1 in. [CX2510/HST]; 111 in. [CAB]	100.4 in
▶ITC Company Accessories
Accessories that fit	Kioti CX2510 / CK2510 Brush Screen Insert $249.99	None tagged yet

Kioti CX2510 vs Mahindra 1120: Quick Answers

Which has more horsepower, the Kioti CX2510 or the Mahindra 1120?

The Kioti CX2510 leads on engine hp at 21 hp hp, compared to 20.1 hp hp for the Mahindra 1120.

Which has more PTO horsepower, the Kioti CX2510 or the Mahindra 1120?

The Kioti CX2510 leads on pto hp at 19.3 hp hp, compared to 13.9 hp hp for the Mahindra 1120.

Which is heavier, the Kioti CX2510 or the Mahindra 1120?

The Mahindra 1120 leads on weight at 2,026 lb lb, compared to 1,488 lb lb for the Kioti CX2510.

Which has more loader lift capacity, the Kioti CX2510 or the Mahindra 1120?

The Kioti CX2510 leads on loader lift at 1,092 lb lb, compared to 794 lb lb for the Mahindra 1120.

Which has more three-point hitch lift capacity, the Kioti CX2510 or the Mahindra 1120?

The Mahindra 1120 leads on 3-pt lift (24 in) at 771 lb lb, compared to 700 lb lb for the Kioti CX2510.
