Which has more horsepower, the Kioti CX2510 or the Mahindra eMax 20S HST Cab?

The Kioti CX2510 leads on engine hp at 21 hp hp, compared to 19.4 hp hp for the Mahindra eMax 20S HST Cab.

Which has more PTO horsepower, the Kioti CX2510 or the Mahindra eMax 20S HST Cab?

The Kioti CX2510 leads on pto hp at 19.3 hp hp, compared to 14.2 hp hp for the Mahindra eMax 20S HST Cab.

Which is heavier, the Kioti CX2510 or the Mahindra eMax 20S HST Cab?

The Mahindra eMax 20S HST Cab leads on weight at 2,219 lb lb, compared to 1,488 lb lb for the Kioti CX2510.

Which has more loader lift capacity, the Kioti CX2510 or the Mahindra eMax 20S HST Cab?

The Kioti CX2510 leads on loader lift at 1,092 lb lb, compared to 617 lb lb for the Mahindra eMax 20S HST Cab.

Which has more three-point hitch lift capacity, the Kioti CX2510 or the Mahindra eMax 20S HST Cab?

The Kioti CX2510 leads on 3-pt lift (24 in) at 700 lb lb, compared to 680 lb lb for the Mahindra eMax 20S HST Cab.

Kioti CX2510 vs Mahindra eMax 20S HST Cab

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Kioti CX2510 leads 7 categories to 2. Machine pages: Kioti CX2510 and Mahindra eMax 20S HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti CX2510	Mahindra eMax 20S HST Cab
Engine HP (hp)	▲ 21 hp	19.4 hp
PTO HP (hp)	▲ 19.3 hp	14.2 hp
Weight (lb)	1,488 lb	▲ 2,219 lb
Loader Lift (lb)	▲ 1,092 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 700 lb	680 lb
Lift Height (in)	▲ 87.8 in	71.3 in
Breakout Force (lbf)	▲ 1,843 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 11.3 gpm	6.2 gpm
Travel Speed (mph)	0.8 mph	▲ 7.8 mph

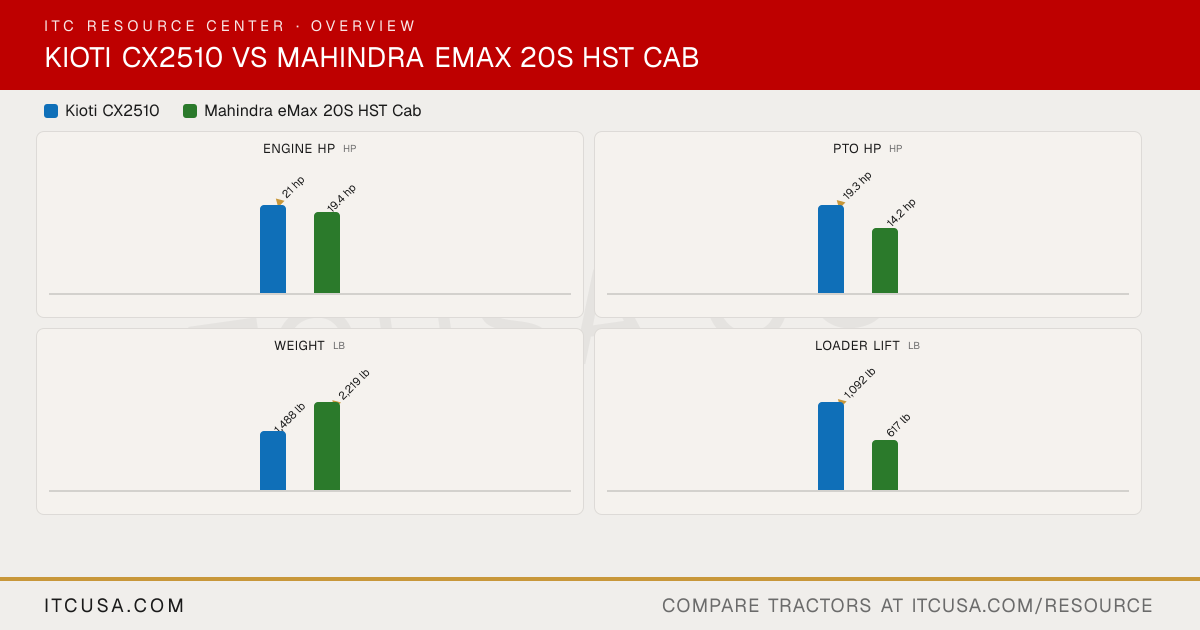

The headline numbers at a glance.

Kioti CX2510Mahindra eMax 20S HST Cab

Engine HPhp

▲21 hp

19.4 hp

PTO HPhp

▲19.3 hp

14.2 hp

Weightlb

1,488 lb

▲2,219 lb

Loader Liftlb

▲1,092 lb

617 lb

3-Pt Lift (24 in)lb

▲700 lb

680 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCX2510	MahindraeMax 20S HST Cab


PTO Power	19.3 hp	14.2 hp
Engine Type	S204.2 gal-F	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine
Fuel System	Diesel fuel (ultra-low sulfur diesel, sulfur content: 15 ppm or less)	Indirect Injection
Displacement	69 in³	60.6 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3000 rpm
Cooling System Type	Liquid cooled	Water-cooled
Engine Manufacturer	Daedong Industrial Co., LTD	Yanmar
Engine Power (Gross)	21 hp	19.4 hp
Alternator	—	45 A, 12 V
Air Cleaner	—	Not Published
Engine Emissions Constraints	—	Complies with US TIER-4 Final Norms

Tractor Weight (Base)	1,488 lbs with ROPS	—
Weight with Cab and Loader	2,804 lb	2219 lb
Weight with ROPS and Loader	2,308 lb	Not Applicable

Warranty Length & Coverage	6 year powertrain warranty	7-Year Limited Powertrain Warranty

Pump Type	Variable displacement pump	Not Published
Steering Flow	4.4 qts 1.1 gal	2.1 gpm
Implement Flow	6.86 gpm	4.1 gpm
Total Hydraulic Flow	11.3 gpm	6.2 gpm
Hydraulic System Type	open center	Open Center
System Operating Pressure	Not specified in document	—
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	11.3 gpm	6.2 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	1 Optional (CX2510/CX2510 HST); 1 Standard (CX2510 HST CAB)	Not Published

PTO Rear	540 rpm	540 @ 2942 rpm
PTO Type	Transmission (CX2510); Live (CX2510 HST/CAB)	Independent
Lift Control Type	Position	Position Control
Hitch Lift Capacity	1,203 lb.	Not Published
Mid-PTO Availability	2,000 rpm (Option on CX2510/CX2510H); 2,000 rpm (Standard on CX2510 HST CAB)	Available; 2500 @ 2958 rpm
Category, 3-Point Hitch	Category I	CAT I Narrow with Check Chains
Hitch Lift Capacity (at 24”)	700 lbs	680 lb

R3 Turf - Rear	33×12.5-16.5	26X12-12
R3 Turf - Front	23×8.5-12	18X8.5-10
Tire Size & Options	Front: 7.0-12 (AG), 23×8.5-12 (Turf/Industrial); Rear: 11.2-16 (AG), 33×12.5-16.5 (Turf), 12-16.5 (Industrial)	R1 Agriculture, R3 Turf, R4 Industrial
R4 Industrial - Rear	12-16.5	26X12-12
R4 Industrial - Front	23×8.5-12	18X8.5-10
R1 Agricultural - Rear	11.2-16	26X12-12
R1 Agricultural - Front	7.0-12	18X8.5-10

Coolant Capacity	1.0 U.S. gal	Not Published
Crankcase Capacity	0.8 U.S. gal	Not Published
Fuel Tank Capacity	6.60 gal	6.6 gal
Transmission / Hydraulic System Capacity	3.4 U.S. gal	Not Published
Front Axle Fluid Capacity	—	Not Published

Loader Lift Height	87.8 in.	71.3 in
Loader Breakout Force	1,843 lbs.	1235 lb
Quick Attach Loader System	Quick attach bucket, 50 in.	6.1 gal: Standard skid-steer style loader couplers (Quick Attach Couplers) for fast, easy front-implement connection.
Loader Lift Capacity (Full Height)	1,092 lbs.	617 lb (at pivot pin)

Clutch	Dry single	Dry-Single
No. of Speeds	6F/2R [CX2510] / Infinite, 2 range [CX2510 HST]	Infinite / 2 ranges
Transmission Type	Manual [CX2510] / Hydrostatic [CX2510 HST]	HST
Max Travel Speed (Forward)	0.75-10.8 mph (1.22-11.8 mph) [Manual]; 0-10.7 mph (0-13.5 mph) [HST]	7.8 mph
Max Travel Speed (Reverse)	0.92-4.2 mph (1.51-4.6 mph) [Manual]; 0-7.46 mph (0-9.5 mph) [HST]	Not Published
Differential Lock & Limited Slip Options	Rear Standard	Not Published

Brakes	Wet Disc Type	Wet Disc
Steering	Hydrostatic Power Steering	Power Steering
Front Axle Type	Four-wheel drive	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat with dual armrests and seat belt	Not Published
Frame Type	—	Not Published
Drawbar Capacity	—	Not Published
Front Axle Rating	—	Not Published

Wheelbase	59.8 in.	53.1 in
Overall Width	49.4 in.	44.5 in
Overall Length	110.25 in with weights; 99.33 in without weights	—
Ground Clearance	13.4 in.	8.3 in
Height to Top of ROPS	82.8 in.	Not Applicable
Height to Top of Cab Model	86.6 in.	79.6 in
Height to Top of ROPS (folded)	82.8 in.	Not Applicable
Min. Turn Radius without Brakes	9 ft (2.75 m)	Not Published
Overall Length with 3-Point Hitch	109.1 in. [CX2510/HST]; 111 in. [CAB]	94.2 in
