Across 7 measurable specs, the Massey Ferguson 1735E leads 4 categories to 3. Machine pages: Kioti DK35 and Massey Ferguson 1735E.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Kioti DK35 | Massey Ferguson 1735E |
|---|
| Engine HP (hp) | 34 hp | ▲ 34.1 hp |
| PTO HP (hp) | 28.3 hp | ▲ 29 hp |
| Weight (lb) | 3,475 lb | n/a |
| Loader Lift (lb) | 1,350 lb | ▲ 1,450 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,270 lb | 1,598 lb |
| Lift Height (in) | ▲ 103.5 in | 94.3 in |
| Breakout Force (lbf) | 2,100 lbf | ▲ 2,288 lbf |
| Hydraulic Flow (gpm) | ▲ 12.5 gpm | 9.7 gpm |
| Travel Speed (mph) | 13.9 mph | n/a |

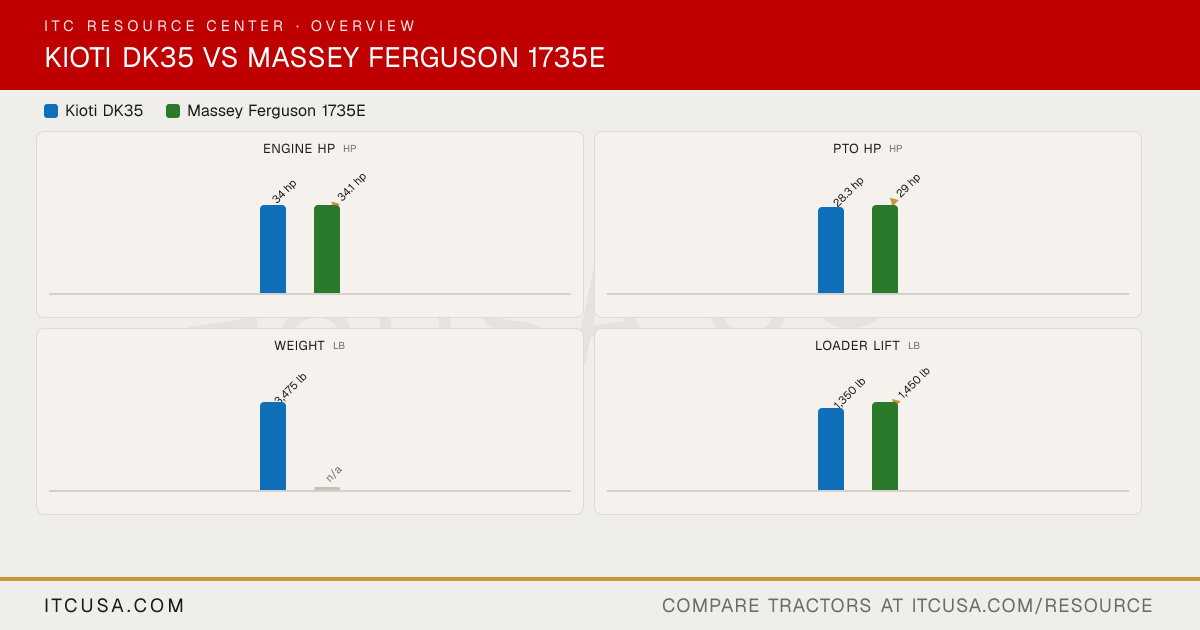

The headline numbers at a glance.
Kioti DK35Massey Ferguson 1735E
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KiotiDK35 | Massey Ferguson1735E |
|---|
|
|---|
| Engine Manufacturer | KIOTI (Daedong) | Shibaura |
|---|
| Engine Model | 3A165LXE | Not Published |
|---|
| Engine Type | Not Published | 3-cylinder turbocharged diesel, liquid-cooled |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 100.5 in³ | 91.3 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 34 hp | 34.1 hp |
|---|
| PTO Power | 28.3 hp | 29 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 4 |
|---|
| Cooling System Type | Not Published | Liquid-cooled |
|---|
| Air Cleaner | Dual stage air filter cartridge | Dry |
|---|
| Fuel System | Not Published | Indirect injection |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Dual engine-driven gear pumps |
|---|
| Implement Flow | 7.8 gpm | Not Published |
|---|
| Steering Flow | 4.7 gpm | Not Published |
|---|
| Total Hydraulic Flow | 12.5 gpm | 9.7 gpm |
|---|
| Overall Hydraulic Pump Flow | 12.5 gpm | Not Published |
|---|
| Hydraulic System Type | Not Published | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | Not Published |
|---|
| No. of Optional Remote Valves | 1 | 2 |
|---|
|
|---|
| Fuel Tank Capacity | 11.5 gal | Not Published |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Hydraulic independent | 8x8 Synchro Shuttle: independent; HST: transmission driven |
|---|
| PTO Rear | 540 rpm | 540 rpm (6-spline) |
|---|
| Mid-PTO Availability | Optional (2,000 rpm) | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 2,270 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | 1,598 lb |
|---|
| Lift Control Type | Position, Draft and Mixed control | Position control |
|---|
|
|---|
| Transmission Type | Synchronized shuttle | 8 x 8 synchro shuttle or 3-range hydrostatic |
|---|
| No. of Speeds | 8F/8R (16F/16R with optional creeper gear) | 8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite |
|---|
| Max Travel Speed (Forward) | 13.93 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Dry single plate | Not Published |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock (mechanical) | Mechanical rear differential lock |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydraulic power steering | Power steering |
|---|
| Brakes | Wet disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Adjustable seat | Not Published |
|---|
| Front Axle Type | 4WD (MFWD) | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 57.1 in | Not Published |
|---|
| Wheelbase | 65.7 in | Not Published |
|---|
| Ground Clearance | 11.4 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 125.9 in | Not Published |
|---|
| Height to Top of ROPS | 92.5 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
| Overall Length | 126.3 in (with 3-point hitch) | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3,475 lb (with ag tires) | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Agricultural, R3 Turf, R4 Industrial | Agricultural, Industrial |
|---|
| R1 Agricultural - Front | 7-16 | 7-16 |
|---|
| R1 Agricultural - Rear | 12.4-24 | 11.2-24 |
|---|
| R3 Turf - Front | 27x8.5-15 | Not Published |
|---|
| R3 Turf - Rear | 41x14-20 | Not Published |
|---|
| R4 Industrial - Front | 27x10.5-15 | 27x8.50-15 |
|---|
| R4 Industrial - Rear | 43x16-20 | 15-19.5 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | FLx2407: pin-on (skid steer quick attach optional) |
|---|
| Loader Model | KL1450 | FLx2407 |
|---|
| Loader Lift Height | KL1450: 103.5 in | FLx2407: 94.3 in (at pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | KL1450: 1,350 lb (at pivot pin) | FLx2407: 1,450 lb (at pivot pin, full height) |
|---|
| Loader Breakout Force | KL1450: 2,100 lb (at pivot pin) | FLx2407: 2,288 lb (at pivot pin) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | 5-year powertrain warranty |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Kioti DK35 vs Massey Ferguson 1735E: Quick Answers
- Which has more horsepower, the Kioti DK35 or the Massey Ferguson 1735E?
- The Massey Ferguson 1735E leads on engine hp at 34.1 hp hp, compared to 34 hp hp for the Kioti DK35.
- Which has more PTO horsepower, the Kioti DK35 or the Massey Ferguson 1735E?
- The Massey Ferguson 1735E leads on pto hp at 29 hp hp, compared to 28.3 hp hp for the Kioti DK35.
- Which has more loader lift capacity, the Kioti DK35 or the Massey Ferguson 1735E?
- The Massey Ferguson 1735E leads on loader lift at 1,450 lb lb, compared to 1,350 lb lb for the Kioti DK35.
- Which has more three-point hitch lift capacity, the Kioti DK35 or the Massey Ferguson 1735E?
- The Kioti DK35 leads on 3-pt lift (24 in) at 2,270 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.
