Bad Boy Tractors 4025 vs Massey Ferguson 1735E

Across 7 measurable specs, the Bad Boy Tractors 4025 leads 5 categories to 2. Machine pages: Bad Boy Tractors 4025 and Massey Ferguson 1735E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

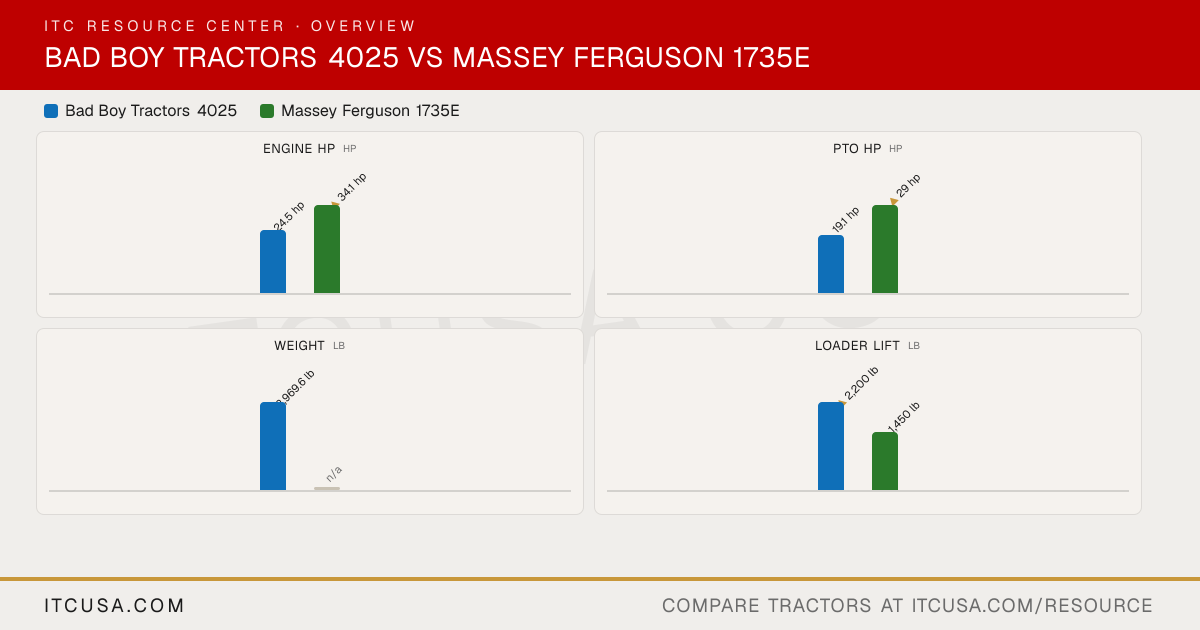

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	Massey Ferguson1735E

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A1700N6-BUTR_3	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	104.7 in³	91.3 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	24.5 hp	34.1 hp
PTO Power	19.1 hp	29 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	Not Published	Indirect injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Dual engine-driven gear pumps
Implement Flow	7.5 gpm	Not Published
Steering Flow	4 gpm	Not Published
Total Hydraulic Flow	11.5 gpm	9.7 gpm
Overall Hydraulic Pump Flow	11.5 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	Not Published
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	533 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	1,598 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	3 range (A/B/C)	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	Not Published
Overall Width	56.7 in	Not Published
Wheelbase	65.7 in	Not Published
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.85 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	8.0-16	7-16
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	27x8.50-15
R4 Industrial - Rear	15-19.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	BBL400	FLx2407
Loader Lift Height	104 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	2,200 lb	FLx2407: 1,450 lb
Loader Breakout Force	3,660 lbf	FLx2407: 2,288 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4025 vs Massey Ferguson 1735E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Massey Ferguson 1735E?

The Massey Ferguson 1735E leads on engine hp at 34.1 hp hp, compared to 24.5 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Massey Ferguson 1735E?

The Massey Ferguson 1735E leads on pto hp at 29 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Massey Ferguson 1735E?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,450 lb lb for the Massey Ferguson 1735E.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Massey Ferguson 1735E?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.
