Kioti DK40 vs Kioti DK4220SEH

Across 9 measurable specs, the Kioti DK40 leads 6 categories to 3. Machine pages: Kioti DK40 and Kioti DK4220SEH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

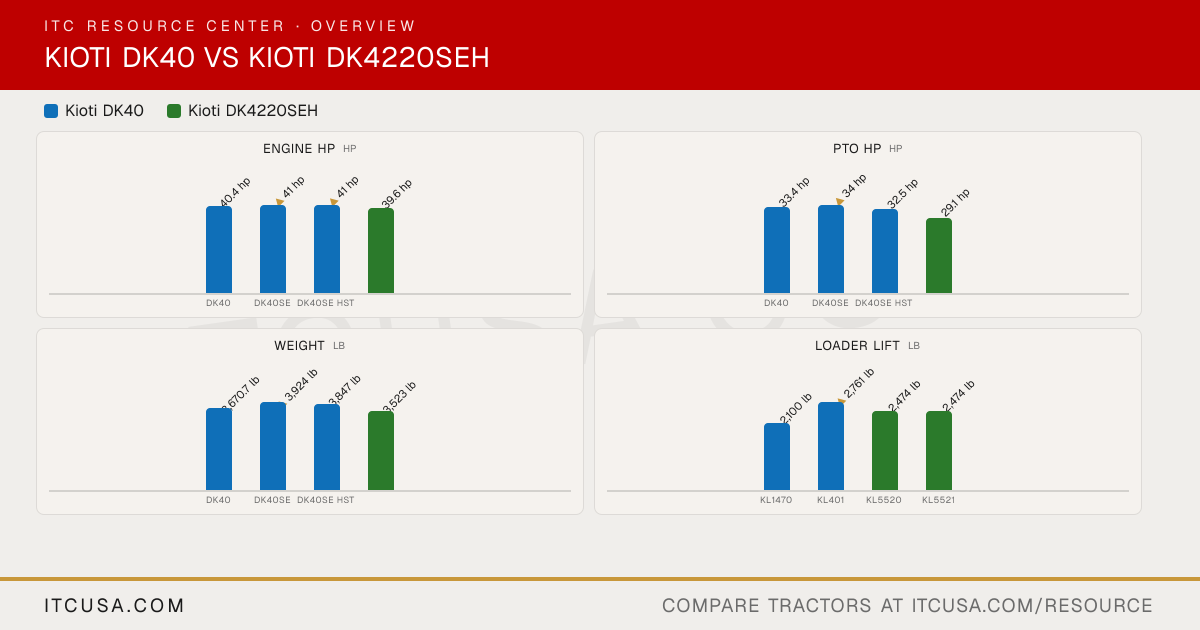

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK40	KiotiDK4220SEH

▶Engine
Engine Manufacturer	KIOTI	KIOTI (Daedong)
Engine Model	DK40: 4A200; DK40SE: 4A200LWM; DK40SE HST: 4A200LWH	3H-TH4D
Engine Type	Indirect injection, vertical, water-cooled, 4-cycle diesel	3-cylinder, liquid-cooled diesel
No. of Cylinders	4	3
Displacement	122.0 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	DK40: 40.4 hp; DK40SE: 41 hp; DK40SE HST: 41 hp	39.6 hp
PTO Power	DK40: 33.4 hp; DK40SE: 34 hp; DK40SE HST: 32.5 hp	29.1 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry element
Fuel System	Indirect injection	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	DK40SE: Gear (tandem); DK40SE HST: Gear (tandem)	Gear
Implement Flow	7.6 gpm	9.62 gpm
Steering Flow	4.5 gpm	6.87 gpm
Total Hydraulic Flow	DK40: 12.1 gpm (7.6 + 4.5, computed); DK40SE: 16.8 gpm; DK40SE HST: 16.8 gpm	16.5 gpm
Overall Hydraulic Pump Flow	DK40: 12.1 gpm (7.6 + 4.5, computed); DK40SE: 16.8 gpm; DK40SE HST: 16.8 gpm	16.5 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	2
No. of Optional Remote Valves	DK40: 1 or 2 (2 or 4 ports, option); DK40SE: 1; DK40SE HST: 1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	DK40: 10.6 gal; DK40SE: 11.9 gal; DK40SE HST: 11.9 gal	12.7 gal
Coolant Capacity	Not Published	2.1 gal
Crankcase Capacity	Not Published	1.95 gal
Transmission / Hydraulic System Capacity	11.6 gal	11.4 gal
Front Axle Fluid Capacity	2.0 gal	1.48 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Available (2,000 rpm)	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,417 lb	2,998 lb
Hitch Lift Capacity (at 24”)	DK40: 2,270.7 lb; DK40SE: 2,493 lb; DK40SE HST: 2,493 lb	2,716 lb
Lift Control Type	Position, draft, mixed control	Position
▶Transmission & Drivetrain
Transmission Type	DK40: Synchronized shuttle; DK40SE: Synchro shuttle; DK40SE HST: Hydrostatic drive	Hydrostatic (HST)
No. of Speeds	DK40: 8F/8R (16F/16R with creeper, DK40CR); DK40SE: 12F/12R; DK40SE HST: 3 range HST	3 ranges (hydrostatic, infinite speeds)
Max Travel Speed (Forward)	DK40: 14.53 mph; DK40SE: 15.7 mph; DK40SE HST: 15.6 mph	18.45 mph
Max Travel Speed (Reverse)	DK40: 13.40 mph; DK40SE: 14.8 mph; DK40SE HST: 10.9 mph	12.92 mph
Clutch	DK40: Dry single stage; DK40SE: Dry single stage; DK40SE HST: None	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Deluxe suspension seat
Front Axle Type	4WD	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb (max. drawbar load)	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	DK40: 139.8 in; DK40SE: 134.2 in; DK40SE HST: 134.2 in	125.5 in
Overall Width	DK40: 59.3 in; DK40SE: 63.9 in; DK40SE HST: 63.9 in	62.8 in
Wheelbase	DK40: 70 in; DK40SE: 74.0 in; DK40SE HST: 74.0 in	71.3 in
Ground Clearance	DK40: 10.1 in; DK40SE: 14.7 in; DK40SE HST: 14.7 in	14.5 in
Min. Turn Radius without Brakes	DK40: 112.7 in (without brake); DK40SE: 114 in (9.5 ft, with brake applied); DK40SE HST: 114 in (9.5 ft, with brake applied)	102.8 in (with brake applied)
Height to Top of ROPS	DK40: 97.0 in; DK40SE: 95.0 in; DK40SE HST: 95.0 in	96.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	96.3 in	93.0 in
▶Weight
Tractor Weight (Base)	DK40: 3,670.7 lb; DK40SE: 3,924 lb; DK40SE HST: 3,847 lb	3,523 lb (DK4220SEH); 4,043 lb (DK4220SEH CAB)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural: 8-16 front, 13.6-24 rear (standard tires)	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	8-16	8-16
R1 Agricultural - Rear	13.6-24	13.6-24
R3 Turf - Front	DK40: 27x8.50-15; DK40SE: 29x12.5-15; DK40SE HST: 29x12.5-15	29-12.5-15
R3 Turf - Rear	DK40: 41x14-20; DK40SE: 21.5L-16.1; DK40SE HST: 21.5L-16.1	21.5L-16.1
R4 Industrial - Front	10x16.5	10-16.5
R4 Industrial - Rear	14.9x24	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Quick attach (QA) bucket, 72 in	Quick attach (QA) bucket, 66 in or 72 in
Loader Model	KL1470 (DK40); KL401 (DK40SE and DK40SE HST)	KL5520; KL5521 (Cab models)
Loader Lift Height	KL1470: 111.4 in; KL401: 107.8 in	KL5520: 107.7 in; KL5521: 107.7 in
Loader Lift Capacity (Full Height)	KL1470: 2,100 lb; KL401: 2,761 lb	KL5520: 2,474 lb; KL5521: 2,474 lb
Loader Breakout Force	KL1470: 3,400 lb; KL401: 3,727 lb	KL5520: 3,895 lb; KL5521: 3,895 lb
▶Warranty
Warranty Length & Coverage	Not Published	Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a KIOTI dealer near you→

Kioti DK40 vs Kioti DK4220SEH: Quick Answers

Which has more horsepower, the Kioti DK40 or the Kioti DK4220SEH?

The Kioti DK40 leads on engine hp at 41 hp hp, compared to 39.6 hp hp for the Kioti DK4220SEH.

Which has more PTO horsepower, the Kioti DK40 or the Kioti DK4220SEH?

The Kioti DK40 leads on pto hp at 34 hp hp, compared to 29.1 hp hp for the Kioti DK4220SEH.

Which is heavier, the Kioti DK40 or the Kioti DK4220SEH?

The Kioti DK40 leads on weight at 3,924 lb lb, compared to 3,523 lb lb for the Kioti DK4220SEH.

Which has more loader lift capacity, the Kioti DK40 or the Kioti DK4220SEH?

The Kioti DK40 leads on loader lift at 2,761 lb lb, compared to 2,474 lb lb for the Kioti DK4220SEH.

Which has more three-point hitch lift capacity, the Kioti DK40 or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,493 lb lb for the Kioti DK40.
