Across 8 measurable specs, this matchup is a dead heat: 2 categories to the Kioti DK4220SEH, 2 to the Kioti DK4520, 4 tied. Machine pages: Kioti DK4220SEH and Kioti DK4520 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Kioti DK4220SEH Kioti DK4520 Engine HP (hp) 39.6 hp ▲ 44.9 hpPTO HP (hp) 29.1 hp ▲ 38.9 hpLoader Lift (lb) 2,474 lb 2,474 lb 3-Pt Lift (24 in) (lb) 2,716 lb 2,716 lb Lift Height (in) 107.7 in 107.7 in Breakout Force (lbf) 3,895 lbf 3,895 lbf Hydraulic Flow (gpm) ▲ 16.5 gpm14.6 gpm Travel Speed (mph) ▲ 18.4 mph16.7 mph

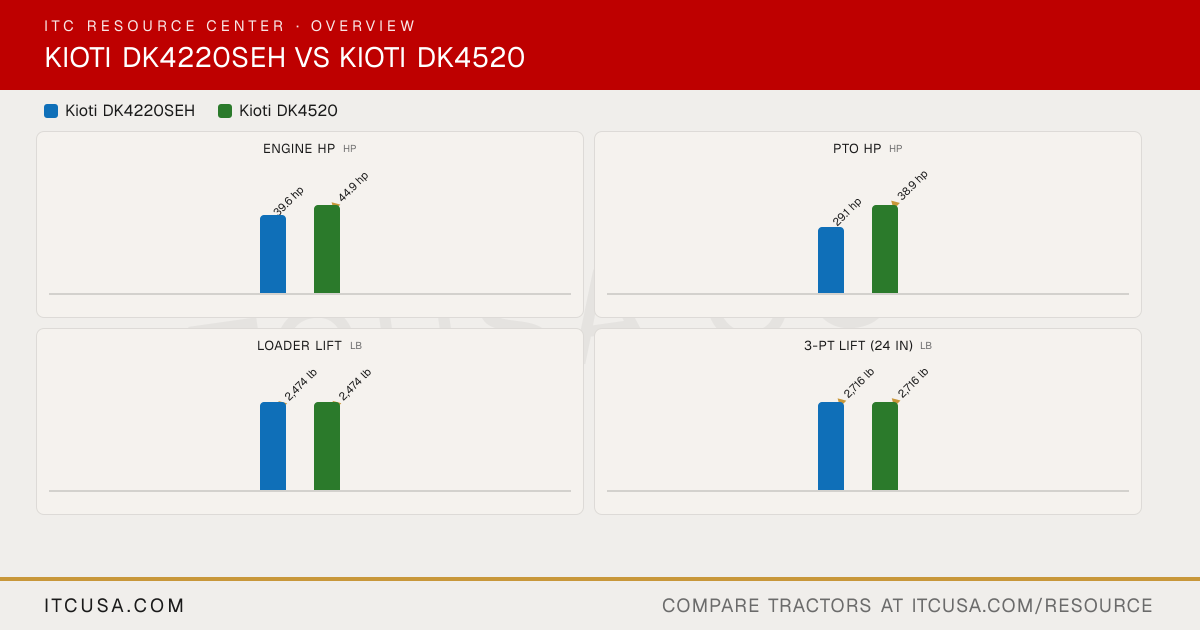

Overview Loader Work PTO Work
The headline numbers at a glance.
Kioti DK4220SEH Kioti DK4520
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kioti DK4220SEH Kioti DK4520
▶ EnginePTO Power 29.1 hp 38.9 hp Alternator Not Published Not Published Air Cleaner Dry element Not Published Engine Type 3-Cyl Diesel (Naturally Aspirated) Diesel, 4-cycle, water-cooled engine Fuel System Not Published Not Published Displacement 111.4 in³ 111.4 in³ No. of Cylinders 3 3 Rated Engine Speed 2600 rpm 2600 rpm Cooling System Type Liquid-cooled Water-cooled Engine Manufacturer KIOTI (Daedong) KIOTI (Daedong) Engine Power (Gross) 39.6 hp 44.9 hp Engine Emissions Constraints Tier 4 Not Published ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ WarrantyWarranty Length & Coverage Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor ▶ HydraulicsPump Type Gear Gear Steering Flow 6.87 gpm 4.94 gpm Implement Flow 9.62 gpm 9.62 gpm Total Hydraulic Flow 16.49 gpm 14.56 gpm Hydraulic System Type Not Published Not Published Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 16.49 gpm 14.56 gpm No. of Optional Remote Valves Not Published 2 (optional) No. of Standard Remote Valves 2 Not Published ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent Independent Lift Control Type Position Position Hitch Lift Capacity 2,998 lbs @ lower link ball 2,998 lb Mid-PTO Availability Optional (2,000 rpm) Available: 2,000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity (at 24”) 2,716 lbs @ 24 in behind 2,716 lb ▶ Tire OptionsR3 Turf - Rear 5.7 gal-16.1 5.7 gal-16.1 R3 Turf - Front 29X12.5-15 29-12.5-15 Tire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear 14.9-24 14.9-24 R4 Industrial - Front 10-16.5 10-16.5 R1 Agricultural - Rear 13.6-24 13.6-24 R1 Agricultural - Front 8.0-16 8.0-16 ▶ Fluid CapacityCoolant Capacity 2.1 gal 0.89 gal (engine only) Crankcase Capacity 1.95 gal 1.95 gal Fuel Tank Capacity 12.7 gal 11.9 gal Front Axle Fluid Capacity 1.48 gal 1.48 gal Transmission / Hydraulic System Capacity 11.4 gal 11.4 gal ▶ Loader & AttachmentsLoader Lift Height 107.7 in 107.7 in Loader Breakout Force 3,895.0 lb 3,895 lb Quick Attach Loader System Quick attach (QA) bucket Quick Attach (QA) bucket Loader Lift Capacity (Full Height) 2,474.0 lb 2,474 lb @ 59.84 in pivot pin height ▶ Transmission & DrivetrainClutch None Dry Single Stage No. of Speeds 3 ranges w/ infinite speeds 8F/8R Transmission Type Hydrostatic Synchronized Shuttle Max Travel Speed (Forward) 18.45 mph 16.70 mph Max Travel Speed (Reverse) 12.92 mph 16.30 mph Differential Lock & Limited Slip Options Differential lock: Rear standard Rear differential lock (standard) ▶ Chassis, Steering & ControlsBrakes Wet Disc Type Wet Multi Disc Steering Hydrostatic Power Steering Hydrostatic Power Steering Frame Type Not Published Not Published Front Axle Type Mechanical 4WD Mechanical 4WD Drawbar Capacity Max. Drawbar vertical load: 1,655 lbs; Max. Trailer loading weight: 9,480 lbs 1,655 lb (Vertical Load) Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Deluxe suspension seat Not Published ▶ Dimensions & ManeuverabilityWheelbase 71.3 in 71.3 in Overall Width 62.8 in 62.8 in Ground Clearance 14.5 in 14.5 in Height to Top of ROPS 96.8 in 96.8 in Height to Top of Cab Model 93.0 in Not Published Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Overall Length with 3-Point Hitch 125.5 in 124.3 in ▶ ITC Company AccessoriesAccessories that fit
Kioti DK4220SEH vs Kioti DK4520: Quick Answers
Which has more horsepower, the Kioti DK4220SEH or the Kioti DK4520? The Kioti DK4520 leads on engine hp at 44.9 hp hp, compared to 39.6 hp hp for the Kioti DK4220SEH.
Which has more PTO horsepower, the Kioti DK4220SEH or the Kioti DK4520? The Kioti DK4520 leads on pto hp at 38.9 hp hp, compared to 29.1 hp hp for the Kioti DK4220SEH.
Which has more loader lift capacity, the Kioti DK4220SEH or the Kioti DK4520? They are effectively tied: both machines are rated at 2,474 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Kioti DK4220SEH or the Kioti DK4520? They are effectively tied: both machines are rated at 2,716 lb lb for 3-pt lift (24 in). More Head-to-Heads
