Kioti DK45 vs Kioti NS4710C HST

Across 9 measurable specs, the Kioti DK45 leads 5 categories to 4. Machine pages: Kioti DK45 and Kioti NS4710C HST.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK45	KiotiNS4710C HST

▶Engine
Engine Manufacturer	KIOTI (Daedong)	KIOTI
Engine Model	4A220	3HT-S4TH45A
Engine Type	Not Published	3-cylinder, in-line vertical, water-cooled, 4-cycle turbo diesel, CRDI
No. of Cylinders	4	3
Displacement	134.1 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	44.9 hp
PTO Power	38 hp	36.3 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Dual stage air filter cartridge	Dry element
Fuel System	Not Published	Common Rail Diesel (CRDI)
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	9.9 gpm	Not Published
Steering Flow	4.3 gpm	Not Published
Total Hydraulic Flow	14.2 gpm	16.5 gpm
Overall Hydraulic Pump Flow	14.2 gpm	16.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Not Published	1
▶Fluid Capacity
Fuel Tank Capacity	11.5 gal	13.2 gal
Coolant Capacity	Not Published	2.03 gal
Crankcase Capacity	Not Published	1.95 gal
Transmission / Hydraulic System Capacity	Not Published	9.51 gal
Front Axle Fluid Capacity	Not Published	2.25 gal
▶PTO & Hitch
PTO Type	Hydraulic independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I (Category II ends optional)	Category I
Hitch Lift Capacity	3,968 lb	2,940 lb
Hitch Lift Capacity (at 24”)	2,987 lb	2,493 lb
Lift Control Type	Position, Draft and Mixed control	Position with Draft Control
▶Transmission & Drivetrain
Transmission Type	Synchronized shuttle	Hydrostatic
No. of Speeds	12F/12R	3-Range
Max Travel Speed (Forward)	15.84 mph	17.5 mph
Max Travel Speed (Reverse)	Not Published	12.2 mph
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock: rear standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydraulic power steering	Hydrostatic Power Steering
Brakes	Wet disc	Wet disc type
Seat Suspension & Adjustability	Adjustable seat	Deluxe suspension seat
Front Axle Type	4WD (MFWD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	61.0 in	70.4 in
Wheelbase	71.6 in	75.5 in
Ground Clearance	14.5 in	11.8 in
Min. Turn Radius without Brakes	123.2 in	11.2 ft (with brake applied)
Height to Top of ROPS	87.5 in	Not Published
Height to Top of ROPS (folded)	64.5 in	Not Published
Height to Top of Cab Model	91 in	93.7 in
Overall Length	130.7 in (with 3-point hitch)	136.4 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,895 lb (ag tires, ROPS)	4,422 lb (with AG tires)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Agricultural, Turf, Industrial
R1 Agricultural - Front	9.5-16	8-16
R1 Agricultural - Rear	14.9-24	13.6-24
R3 Turf - Front	29x12.5-15	29-12.5-15
R3 Turf - Rear	21.5L-16.1	21.5L-16.1
R4 Industrial - Front	12x16.5	10-16.5
R4 Industrial - Rear	17.5L-24	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Not Published	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Model	KL249; KL1470; KL1590	KL5810
Loader Lift Height	KL249: 107.5 in; KL1470: 111.44 in; KL1590: 121.06 in	KL5810: 106.3 in (to pivot pin)
Loader Lift Capacity (Full Height)	KL249: 2,050 lb; KL1470: 2,100 lb; KL1590: 2,500 lb	KL5810: 2,621 lb (at pivot pin)
Loader Breakout Force	KL249: 3,695 lb; KL1470: 3,400 lb; KL1590: 4,000 lb	KL5810: 3,896 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	Non-commercial: basic 24 months, powertrain 72 months, unlimited hours, parts and labor
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a KIOTI dealer near you→

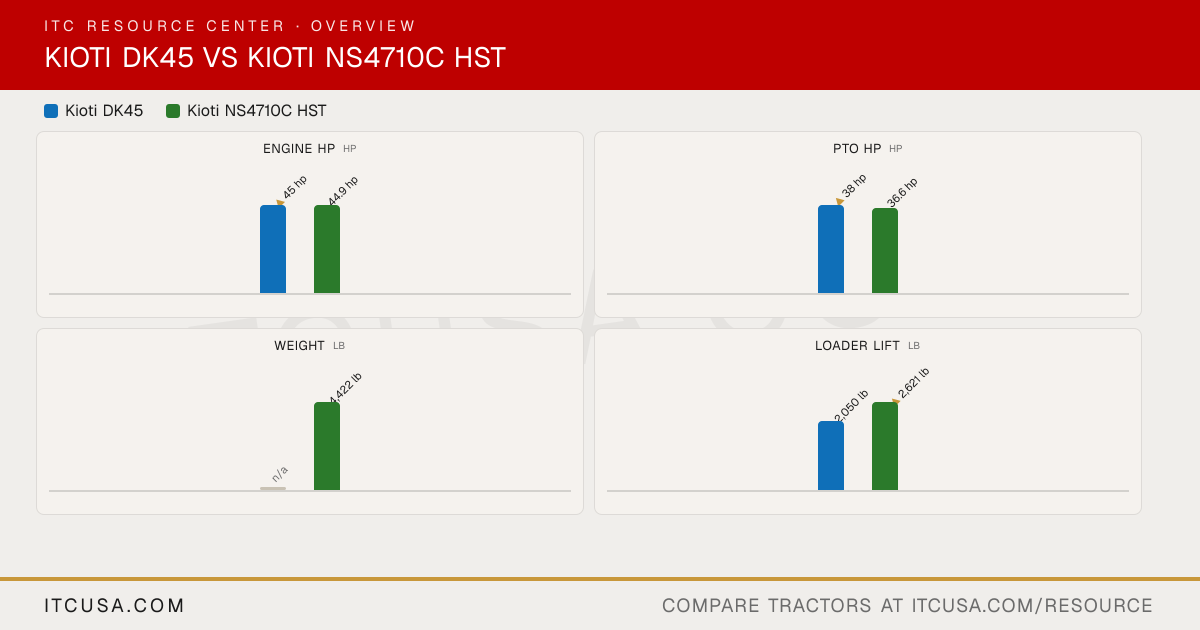

Kioti DK45 vs Kioti NS4710C HST: Quick Answers

Which has more horsepower, the Kioti DK45 or the Kioti NS4710C HST?

The Kioti DK45 leads on engine hp at 45 hp hp, compared to 44.9 hp hp for the Kioti NS4710C HST.

Which has more PTO horsepower, the Kioti DK45 or the Kioti NS4710C HST?

The Kioti DK45 leads on pto hp at 38 hp hp, compared to 36.3 hp hp for the Kioti NS4710C HST.

Which is heavier, the Kioti DK45 or the Kioti NS4710C HST?

The Kioti NS4710C HST leads on weight at 4,422 lb lb, compared to 3,895 lb lb for the Kioti DK45.

Which has more loader lift capacity, the Kioti DK45 or the Kioti NS4710C HST?

The Kioti NS4710C HST leads on loader lift at 2,621 lb lb, compared to 2,500 lb lb for the Kioti DK45.

Which has more three-point hitch lift capacity, the Kioti DK45 or the Kioti NS4710C HST?

The Kioti DK45 leads on 3-pt lift (24 in) at 2,987 lb lb, compared to 2,493 lb lb for the Kioti NS4710C HST.
