Bad Boy Tractors 4035 vs Kioti NS4710C HST

Across 9 measurable specs, the Kioti NS4710C HST leads 8 categories to 1. Machine pages: Bad Boy Tractors 4035 and Kioti NS4710C HST.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

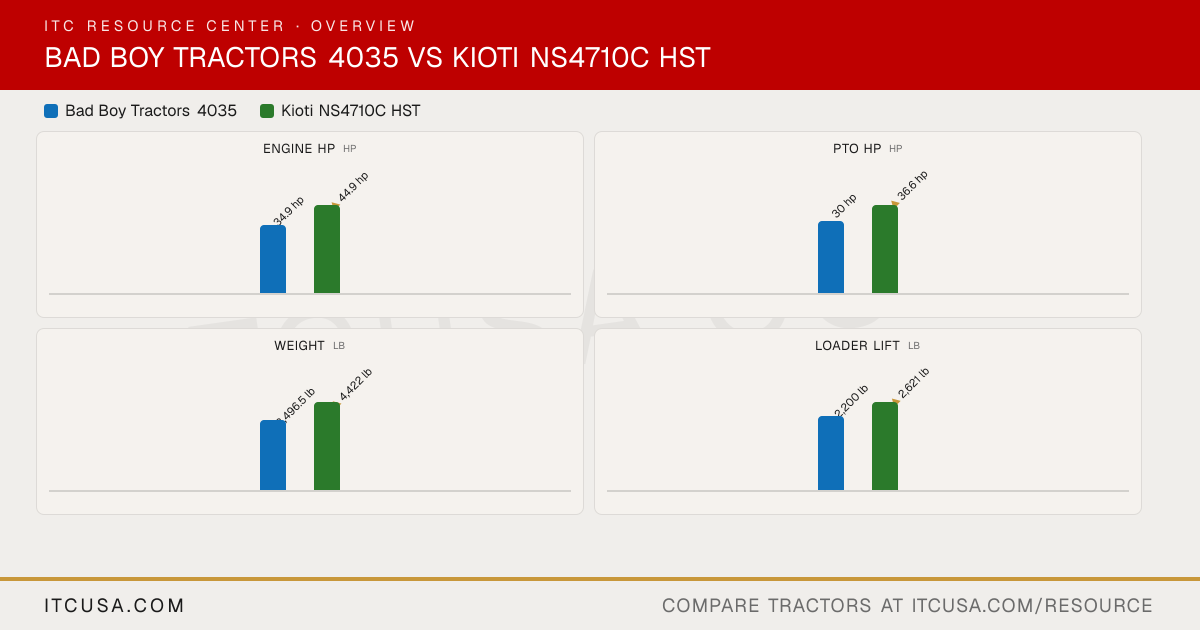

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	KiotiNS4710C HST

▶Engine
PTO Power	30 hp	36.6 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	3 Cylinder, Water-Cooled, Diesel	In-line Vertical, Water-cooled 4-cycle Turbo Diesel, CRDI (Engine model: 3HT-S4TH45A)
Fuel System	Diesel fuel	Common Rail Direct Injection (CRDI)
Displacement	104.7 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water cooled	Water-cooled
Engine Manufacturer	A1700N4-BUTC_4	KIOTI (Daedong)
Engine Power (Gross)	34.9 hp	44.9 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
▶Weight
Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	Not Applicable
Weight with Cab and Loader	3,728 lbs	4,422.0 (2,006.0) (Weight w/AG tires)
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Not Published	Gear
Steering Flow	4.4 gpm	Not Published
Implement Flow	8.2 gpm	Not Published
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	16.48 gpm
Hydraulic System Type	Open Center	Open Center
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	16.48 gpm
No. of Optional Remote Valves	Optional (up to 2)	1
No. of Standard Remote Valves	Not Published	1
▶PTO & Hitch
PTO Rear	540 RPM	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position Control	Position with Draft Control
Hitch Lift Capacity	3,306.9 lb	Not Published
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,940 lb
▶Tire Options
R3 Turf - Rear	Not Published	5.7 gal-16.1
R3 Turf - Front	Not Published	29X12.5-15
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00-20	14.9-24
R4 Industrial - Front	28X8.50-15	10-16.5
R1 Agricultural - Rear	12.4-24 6PR	13.6-24
R1 Agricultural - Front	8.0-16 4PR	8.0-16
▶Fluid Capacity
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Fuel Tank Capacity	7.13 gal	13.2 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	Not Published
▶Loader & Attachments
Loader Lift Height	104 in	106.30 in
Loader Breakout Force	3,660 lb	3,896 lb
Quick Attach Loader System	SSQA	Built-in parking stand; designed to be quickly and easily attached/detached
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	2,621 lb
▶Transmission & Drivetrain
Clutch	None (HST)	None
No. of Speeds	3 Range	3-Range / Infinite
Transmission Type	HST (3-range)	Hydrostatic (HST)
Max Travel Speed (Forward)	19.08 mph (range C)	17.5 mph
Max Travel Speed (Reverse)	19.08 mph (range C)	12.2 mph
Differential Lock & Limited Slip Options	Differential lock	Rear standard
▶Chassis, Steering & Controls
Brakes	Wet multi-disc	Wet disc type
Steering	Fully hydraulic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Deluxe suspension seat
▶Dimensions & Maneuverability
Wheelbase	65.7 in	75.5 in
Overall Width	56.7 in	70.4 in
Overall Length	134.88 in.	—
Ground Clearance	15 in	11.8 in
Height to Top of ROPS	96.85 in	Not Applicable
Height to Top of Cab Model	Not Applicable	93.7 (2,379.9) w/o Beacon
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	136.4 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Bad Boy Tractors 4035 vs Kioti NS4710C HST: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Kioti NS4710C HST?

The Kioti NS4710C HST leads on engine hp at 44.9 hp hp, compared to 34.9 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Kioti NS4710C HST?

The Kioti NS4710C HST leads on pto hp at 36.6 hp hp, compared to 30 hp hp for the Bad Boy Tractors 4035.

Which is heavier, the Bad Boy Tractors 4035 or the Kioti NS4710C HST?

The Kioti NS4710C HST leads on weight at 4,422 lb lb, compared to 3,496.5 lb lb for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Kioti NS4710C HST?

The Kioti NS4710C HST leads on loader lift at 2,621 lb lb, compared to 2,200 lb lb for the Bad Boy Tractors 4035.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Kioti NS4710C HST?

The Kioti NS4710C HST leads on 3-pt lift (24 in) at 2,940 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035.
