Kioti DK4720 vs Kioti NX4510CH

Across 9 measurable specs, the Kioti NX4510CH leads 7 categories to 2. Machine pages: Kioti DK4720 and Kioti NX4510CH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

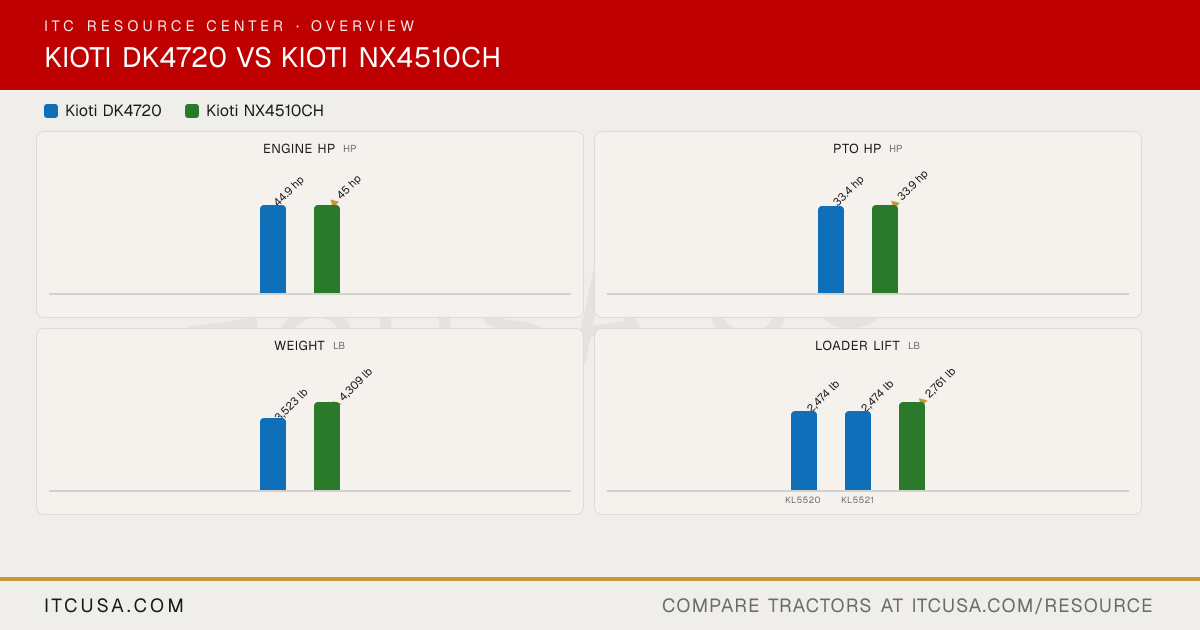

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK4720	KiotiNX4510CH

▶Engine
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Model	3HT-TH4C	3F183T
Engine Type	3-cylinder, liquid-cooled diesel	KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	44.9 hp	45 hp
PTO Power	33.4 hp	33.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry element	Dry type element
Fuel System	Not Published	Common Rail Direct Injection (CRDI)
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Gear	Gear
Implement Flow	9.62 gpm	9.6 gpm
Steering Flow	6.87 gpm	8.2 gpm
Total Hydraulic Flow	16.5 gpm	17.9 gpm
Overall Hydraulic Pump Flow	16.5 gpm	17.9 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	1
No. of Optional Remote Valves	Not Published	1
▶Fluid Capacity
Fuel Tank Capacity	12.7 gal	14.8 gal
Coolant Capacity	2.1 gal	2.0 gal
Crankcase Capacity	1.95 gal	1.58 gal
Transmission / Hydraulic System Capacity	11.4 gal	11.89 gal
Front Axle Fluid Capacity	1.48 gal	1.8 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional (2,000 rpm)	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,998 lb	3,538 lb
Hitch Lift Capacity (at 24”)	2,716 lb	3,177 lb
Lift Control Type	Position	Position with Draft Control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic
No. of Speeds	3 ranges (hydrostatic, infinite speeds)	3 Range
Max Travel Speed (Forward)	18.45 mph	16.52 mph
Max Travel Speed (Reverse)	12.92 mph	16.52 mph
Clutch	None (hydrostatic transmission)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Brakes	Wet multi-disc	Wet Multi Disc
Seat Suspension & Adjustability	Deluxe suspension seat	Adjustable Seat
Front Axle Type	Mechanical 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,655 lb (max. drawbar vertical load)	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	125.5 in	139.6 in
Overall Width	62.8 in	65.6 in
Wheelbase	71.3 in	75.6 in
Ground Clearance	14.5 in	13.8 in
Min. Turn Radius without Brakes	102.8 in (with brake applied)	9.8 ft
Height to Top of ROPS	96.8 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93.0 in	94.1 in
▶Weight
Tractor Weight (Base)	3,523 lb (DK4720SEH); 4,043 lb (DK4720SEH CAB)	4,309 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial, R14	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8-16	8-16
R1 Agricultural - Rear	13.6-24	13.6-24
R3 Turf - Front	29-12.5-15	29-12.5-15
R3 Turf - Rear	21.5L-16.1	21.5L-16.1
R4 Industrial - Front	10-16.5	10-16.5
R4 Industrial - Rear	14.9-24	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Quick attach (QA) bucket, 66 in or 72 in	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Model	KL5520; KL5521 (Cab models)	KL6010
Loader Lift Height	KL5520: 107.7 in; KL5521: 107.7 in	KL6010: 108.3 in (to pivot pin)
Loader Lift Capacity (Full Height)	KL5520: 2,474 lb; KL5521: 2,474 lb	KL6010: 2,761 lb (at pivot pin, max height)
Loader Breakout Force	KL5520: 3,895 lb; KL5521: 3,895 lb	KL6010: 3,727 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours	Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor
▶ITC Company Accessories
Accessories that fit	Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a KIOTI dealer near you→

Kioti DK4720 vs Kioti NX4510CH: Quick Answers

Which has more horsepower, the Kioti DK4720 or the Kioti NX4510CH?

The Kioti NX4510CH leads on engine hp at 45 hp hp, compared to 44.9 hp hp for the Kioti DK4720.

Which has more PTO horsepower, the Kioti DK4720 or the Kioti NX4510CH?

The Kioti NX4510CH leads on pto hp at 33.9 hp hp, compared to 33.4 hp hp for the Kioti DK4720.

Which is heavier, the Kioti DK4720 or the Kioti NX4510CH?

The Kioti NX4510CH leads on weight at 4,309 lb lb, compared to 3,523 lb lb for the Kioti DK4720.

Which has more loader lift capacity, the Kioti DK4720 or the Kioti NX4510CH?

The Kioti NX4510CH leads on loader lift at 2,761 lb lb, compared to 2,474 lb lb for the Kioti DK4720.

Which has more three-point hitch lift capacity, the Kioti DK4720 or the Kioti NX4510CH?

The Kioti NX4510CH leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,716 lb lb for the Kioti DK4720.
