Across 5 measurable specs, this matchup is a dead heat: 2 categories to the Kioti DK55, 2 to the TYM 5520C, 1 tied. Machine pages: Kioti DK55 and TYM 5520C .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Kioti DK55 TYM 5520C Engine HP (hp) 55 hp 55 hp PTO HP (hp) ▲ 45.2 hp44 hp Loader Lift (lb) — 2,701 lb 3-Pt Lift (24 in) (lb) ▲ 2,643 lb2,425 lb Lift Height (in) — 106.6 in Breakout Force (lbf) — 3,660 lbf Hydraulic Flow (gpm) 14.2 gpm ▲ 16.5 gpmTravel Speed (mph) 16.4 mph ▲ 19.5 mph

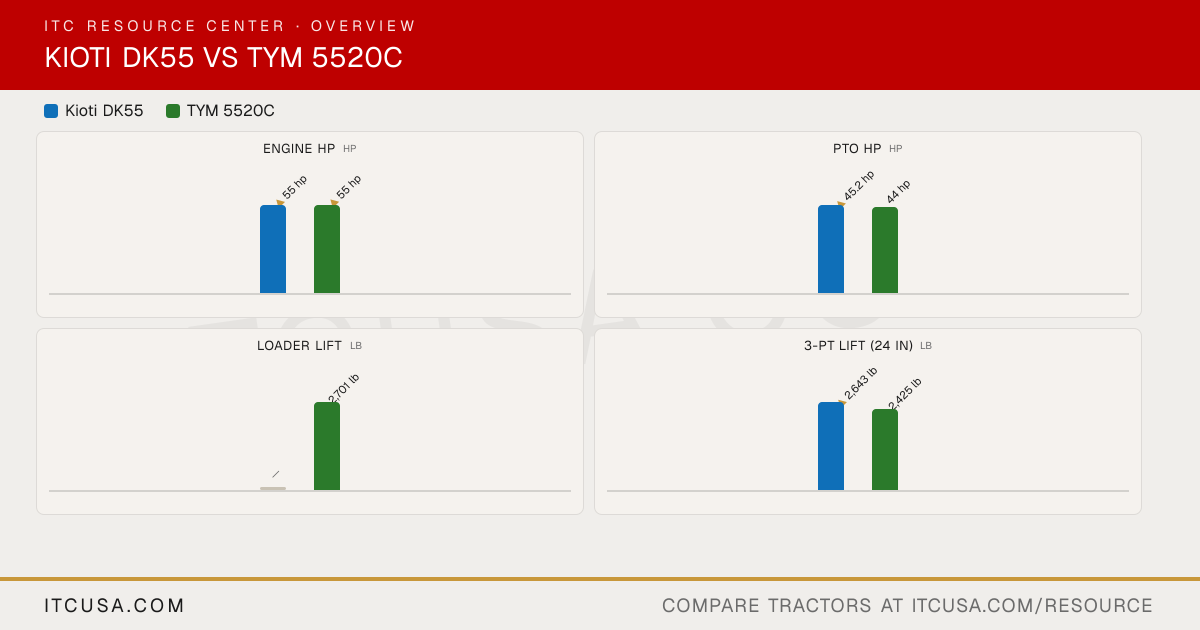

Overview Loader Work PTO Work
The headline numbers at a glance.
Kioti DK55 TYM 5520C
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
▶ EnginePTO Power 45.2 hp 44 hp Alternator 50 A, 12 V 70 A, 12 V Air Cleaner Not Published Dry element Engine Type Turbocharged diesel, liquid-cooled 4-cylinder, turbocharged diesel Fuel System In-line pump system; mechanical control; indirect injection IDI Displacement 134.1 in³ 139.5 in³ No. of Cylinders 4 4 Rated Engine Speed 2600 rpm 2600 rpm Cooling System Type Liquid-cooled Not Published Engine Manufacturer KIOTI (Daedong) TYM Engine Power (Gross) 55 hp 55 hp Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader Not Published Not Applicable Weight with Cab and Loader Not Published Not Published ▶ WarrantyWarranty Length & Coverage Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ HydraulicsPump Type Tandem gear Dual gear pump Steering Flow 4.2 gpm 5.2 gpm Implement Flow 9.9 gpm 11.4 gpm Total Hydraulic Flow 14.2 gpm 16.5 gpm Hydraulic System Type Not Published Not Published Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 14.2 gpm 16.5 gpm No. of Optional Remote Valves Not Published Not Published No. of Standard Remote Valves 2 4 ▶ PTO & HitchPTO Rear 540/1000 RPM 540/750 rpm PTO Type Independent Independent Lift Control Type Top link draft sensing Position control Hitch Lift Capacity 2,643 lbs at 24 in 3,306 lb Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II/I Category I Hitch Lift Capacity (at 24”) 2,643 lbs 2,425 lb ▶ Tire OptionsR3 Turf - Rear 21.5LX16.1/4 41x14-20 / 44x18-20 R3 Turf - Front 29X12.5X15/6 27x8.5-15 / 29x12.5-15 Tire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear 17.5X24/8 17.5Lx24 R4 Industrial - Front 12X16.5/6 12-16.5 R1 Agricultural - Rear 14.9-28 13.6-26 R1 Agricultural - Front 9.5-20/6 9.5-16 ▶ Fluid CapacityCoolant Capacity Not Published 8.3 qt Crankcase Capacity Not Published 4.8 qt Fuel Tank Capacity 18 gal 11.8 gal Front Axle Fluid Capacity Not Published 6.8 qt Transmission / Hydraulic System Capacity Not Published HST: 11.1 gal; Gear: 10.3 gal ▶ Loader & AttachmentsLoader Lift Height Not Published 106.6 in Loader Breakout Force Not Published 3,660 lb Quick Attach Loader System Not Published BL200C: Quick attach mechanism Loader Lift Capacity (Full Height) Not Published 2,701 lb ▶ Transmission & DrivetrainClutch Dry disc Dry single type (N/A) No. of Speeds 12F/12R HST: 4-Range; Gear: F16 x R16 (4-Range) Transmission Type Synchronized shuttle HST: Hydrostatic (HST); Gear: Synchromesh Max Travel Speed (Forward) 16.4 mph HST: 19.5 mph; Gear: 16 mph Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Differential lock system ▶ Chassis, Steering & ControlsBrakes Wet disc brakes Wet, multi disc Steering Power steering Hydrostatic Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Suspension seat ▶ Dimensions & ManeuverabilityWheelbase 76.8 in 71.1 in Overall Width 69.3 in 64.9 in Ground Clearance 17.5 in 15.5 in Height to Top of ROPS 106.5 in Not Applicable Height to Top of Cab Model 104 in 97 in Height to Top of ROPS (folded) 85.5 in Not Published Min. Turn Radius without Brakes Not Published L: 128.7 in; R: 126.0 in Overall Length with 3-Point Hitch 130.5 in 127.4 in ▶ ITC Company AccessoriesAccessories that fit
Kioti DK55 vs TYM 5520C: Quick Answers
Which has more horsepower, the Kioti DK55 or the TYM 5520C? They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Kioti DK55 or the TYM 5520C? The Kioti DK55 leads on pto hp at 45.2 hp hp, compared to 44 hp hp for the TYM 5520C.
Which has more three-point hitch lift capacity, the Kioti DK55 or the TYM 5520C? The Kioti DK55 leads on 3-pt lift (24 in) at 2,643 lb lb, compared to 2,425 lb lb for the TYM 5520C. More Head-to-Heads
