Which has more horsepower, the Kioti DK5520 or the Mahindra 5155 Shuttle?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Kioti DK5520 or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 46.4 hp hp for the Kioti DK5520.

Which has more loader lift capacity, the Kioti DK5520 or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,474 lb lb for the Kioti DK5520.

Which has more three-point hitch lift capacity, the Kioti DK5520 or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,716 lb lb for the Kioti DK5520.

Kioti DK5520 vs Mahindra 5155 Shuttle

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 5155 Shuttle leads 6 categories to 1 (1 tied). Machine pages: Kioti DK5520 and Mahindra 5155 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti DK5520	Mahindra 5155 Shuttle
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	46.4 hp	▲ 47 hp
Loader Lift (lb)	2,474 lb	▲ 3,100 lb
3-Pt Lift (24 in) (lb)	2,716 lb	▲ 3,748 lb
Lift Height (in)	107.7 in	▲ 122 in
Breakout Force (lbf)	3,895 lbf	▲ 5,200 lbf
Hydraulic Flow (gpm)	▲ 14.6 gpm	13.3 gpm
Travel Speed (mph)	16.7 mph	▲ 17.9 mph

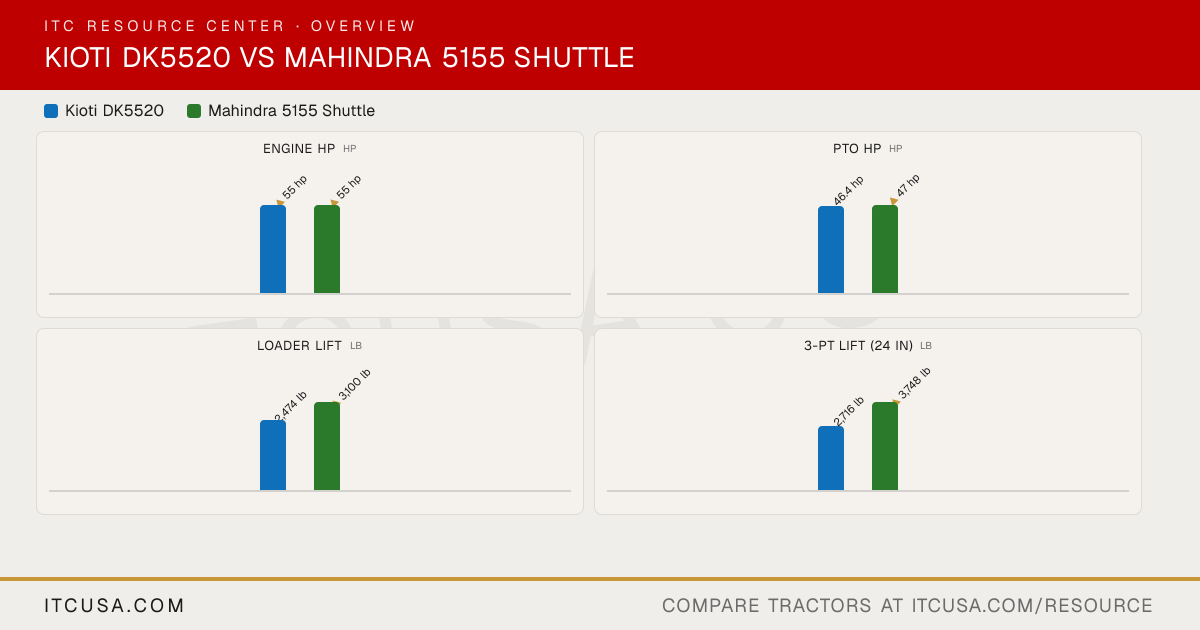

The headline numbers at a glance.

Kioti DK5520Mahindra 5155 Shuttle

Engine HPhp

▲55 hp

PTO HPhp

46.4 hp

▲47 hp

Weightlb

—

Loader Liftlb

2,474 lb

▲3,100 lb

3-Pt Lift (24 in)lb

2,716 lb

▲3,748 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK5520	Mahindra5155 Shuttle


PTO Power	46.4 hp	47 hp @ 300 rpm
Alternator	Not Published	55 A
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, 4-cycle, water-cooled engine	Four-stroke, direct-injection, turbocharged and intercooled, water-cooled diesel
Fuel System	Not Published	Direct injection
Displacement	111.4 in³	166.2 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2300 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	KIOTI (Daedong)	Mahindra
Engine Power (Gross)	55 hp	55 hp @ 300 rpm
Engine Emissions Constraints	Not Published	No DPF

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	5-Year limited powertrain warranty

Pump Type	Gear	Not Published
Steering Flow	4.94 gpm	4.62 gpm
Implement Flow	9.62 gpm	8.71 gpm
Total Hydraulic Flow	14.56 gpm	13.3 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.56 gpm	13.3 gpm
No. of Optional Remote Valves	2 (Optional)	1 additional (expandable to 2 total)
No. of Standard Remote Valves	Not Published	1 standard

PTO Rear	540 rpm	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position & draft control
Hitch Lift Capacity	2,998 lb	Not Published
Mid-PTO Availability	Optional	Not Applicable
Category, 3-Point Hitch	Category II	CAT I & II with telescopic stabilizers & flex links
Hitch Lift Capacity (at 24”)	2,716 lb	3748 lbs

R3 Turf - Rear	5.7 gal-16.1	Not Applicable
R3 Turf - Front	29X12.50-15	Not Applicable
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural or R4 Industrial
R4 Industrial - Rear	14.9-24	16.9X24
R4 Industrial - Front	10-16.5	10.5/80X18
R1 Agricultural - Rear	13.6-24	14.9X28
R1 Agricultural - Front	8.0-16	9.5X20

Coolant Capacity	0.89 gal (engine only)	Not Published
Crankcase Capacity	1.95 gal	Not Published
Fuel Tank Capacity	11.9 gal	17.1 gal
Front Axle Fluid Capacity	1.48 gal	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published

Loader Lift Height	107.7 in (to pivot point)	122 inches
Loader Breakout Force	3,895 lb (at pivot pins)	5200 lbs
Quick Attach Loader System	Quick attach (QA) bucket	5155-1.1 gal: Skid-steer style quick-attach coupler
Loader Lift Capacity (Full Height)	2,474 lb @ 59.84 in pivot pin height	3100 lbs

Clutch	Dry single stage	Dual dry, with cerametallic lining
No. of Speeds	8F/8R	12F / 12R
Transmission Type	Synchro shuttle	Full synchromesh with forward/reverse synchro shuttle & constant mesh range
Max Travel Speed (Forward)	16.71 mph	17.9 mph
Max Travel Speed (Reverse)	16.28 mph	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Not Published

Brakes	Wet disc type	Fully-enclosed 7-inch diameter dry disc
Steering	Hydrostatic Power Steering	Hydrostatic power steering with tilt steering wheel
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Not Published
Drawbar Capacity	1,655 lb (Vertical Load)	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Adjustable seat with soft-coil suspension

Wheelbase	71.3 in	74.8 inches
Overall Width	62.8 in	80.3 inches
Ground Clearance	14.5 in	16.4 inches
Height to Top of ROPS	96.8 in	60.6 inches
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	124.8 in	140.0 inches

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet

Kioti DK5520 vs Mahindra 5155 Shuttle: Quick Answers

Which has more horsepower, the Kioti DK5520 or the Mahindra 5155 Shuttle?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Kioti DK5520 or the Mahindra 5155 Shuttle?: The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 46.4 hp hp for the Kioti DK5520.
Which has more loader lift capacity, the Kioti DK5520 or the Mahindra 5155 Shuttle?: The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,474 lb lb for the Kioti DK5520.
Which has more three-point hitch lift capacity, the Kioti DK5520 or the Mahindra 5155 Shuttle?: The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,716 lb lb for the Kioti DK5520.
