Kioti NS4710C HST vs Mahindra 4530

Across 8 measurable specs, the Mahindra 4530 leads 5 categories to 3. Machine pages: Kioti NS4710C HST and Mahindra 4530.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

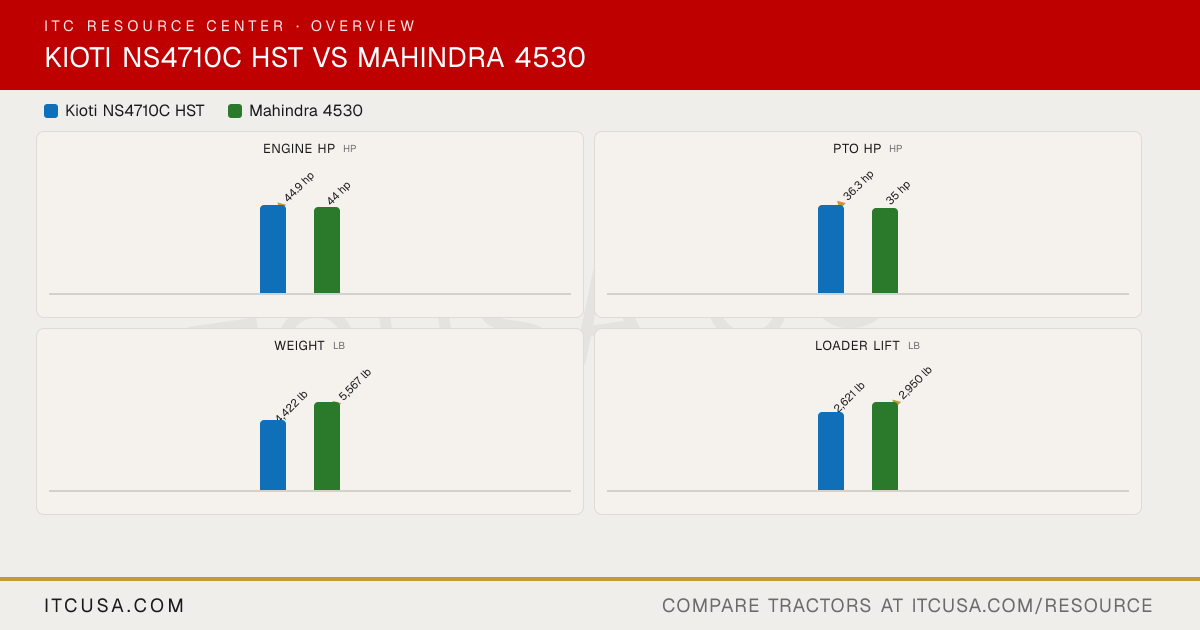

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNS4710C HST	Mahindra4530

▶Engine
Engine Manufacturer	KIOTI	Mahindra
Engine Model	3HT-S4TH45A	NE342
Engine Type	3-cylinder, in-line vertical, water-cooled, 4-cycle turbo diesel, CRDI	Four stroke, direct injection, water-cooled diesel, 3 cylinders
No. of Cylinders	3	3
Displacement	111.4 in³	152.4 in³
Rated Engine Speed	2600 rpm	2100 rpm
Engine Power (Gross)	44.9 hp	44 hp
PTO Power	36.3 hp	35 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	Not Published
Fuel System	Common Rail Diesel (CRDI)	Direct injection
Alternator	Not Published	36 A, 12 V
▶Hydraulics
Pump Type	Gear	Not Published
Implement Flow	Not Published	10.9 gpm
Steering Flow	Not Published	4.8 gpm
Total Hydraulic Flow	16.5 gpm	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	Not Published
Hydraulic System Type	Open center	Open center with position and draft control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	1	1 or 2 (optional)
▶Fluid Capacity
Fuel Tank Capacity	13.2 gal	Not Published
Coolant Capacity	2.03 gal	Not Published
Crankcase Capacity	1.95 gal	Not Published
Transmission / Hydraulic System Capacity	9.51 gal	Not Published
Front Axle Fluid Capacity	2.25 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm @ 2100 rpm
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category 1 & 2
Hitch Lift Capacity	2,940 lb	3,969 lb
Hitch Lift Capacity (at 24”)	2,493 lb	Not Published
Lift Control Type	Position with Draft Control	Position and draft control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic	Forward-reverse synchro-shuttle
No. of Speeds	3-Range	8F/8R
Max Travel Speed (Forward)	17.5 mph	Not Published
Max Travel Speed (Reverse)	12.2 mph	Not Published
Clutch	Not Published	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Mechanical differential lock: rear standard	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power
Brakes	Wet disc type	Dry disc
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	70.4 in	72.5 in
Wheelbase	75.5 in	Not Published
Ground Clearance	11.8 in	Not Published
Min. Turn Radius without Brakes	11.2 ft (with brake applied)	Not Published
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93.7 in	Not Published
Overall Length	136.4 in (with 3-point hitch)	134 in (with ag tires)
▶Weight
Tractor Weight (Base)	4,422 lb (with AG tires)	5,567 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Agricultural, Turf, Industrial	Not Published
R1 Agricultural - Front	8-16	9.5x20
R1 Agricultural - Rear	13.6-24	13.6x28
R3 Turf - Front	29-12.5-15	Not Published
R3 Turf - Rear	21.5L-16.1	Not Published
R4 Industrial - Front	10-16.5	10.5/80x18
R4 Industrial - Rear	14.9-24	16.9x24
▶Loader & Attachments
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	Not Published
Loader Model	KL5810	ML245
Loader Lift Height	KL5810: 106.3 in (to pivot pin)	ML245: 120 in (at pin)
Loader Lift Capacity (Full Height)	KL5810: 2,621 lb (at pivot pin)	ML245: 2,950 lb (full height, at pin)
Loader Breakout Force	KL5810: 3,896 lb (at pivot pin)	ML245: 4,950 lb (at pin)
▶Warranty
Warranty Length & Coverage	Non-commercial: basic 24 months, powertrain 72 months, unlimited hours, parts and labor	Not Published
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Find a KIOTI dealer near you→Find a Mahindra dealer near you→

Kioti NS4710C HST vs Mahindra 4530: Quick Answers

Which has more horsepower, the Kioti NS4710C HST or the Mahindra 4530?

The Kioti NS4710C HST leads on engine hp at 44.9 hp hp, compared to 44 hp hp for the Mahindra 4530.

Which has more PTO horsepower, the Kioti NS4710C HST or the Mahindra 4530?

The Kioti NS4710C HST leads on pto hp at 36.3 hp hp, compared to 35 hp hp for the Mahindra 4530.

Which is heavier, the Kioti NS4710C HST or the Mahindra 4530?

The Mahindra 4530 leads on weight at 5,567 lb lb, compared to 4,422 lb lb for the Kioti NS4710C HST.

Which has more loader lift capacity, the Kioti NS4710C HST or the Mahindra 4530?

The Mahindra 4530 leads on loader lift at 2,950 lb lb, compared to 2,621 lb lb for the Kioti NS4710C HST.

Which has more three-point hitch lift capacity, the Kioti NS4710C HST or the Mahindra 4530?

The Mahindra 4530 leads on 3-pt lift (24 in) at 3,969 lb lb, compared to 2,493 lb lb for the Kioti NS4710C HST.
