Kioti NX4510 vs Yanmar YT347

Across 9 measurable specs, the Yanmar YT347 leads 6 categories to 3. Machine pages: Kioti NX4510 and Yanmar YT347.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

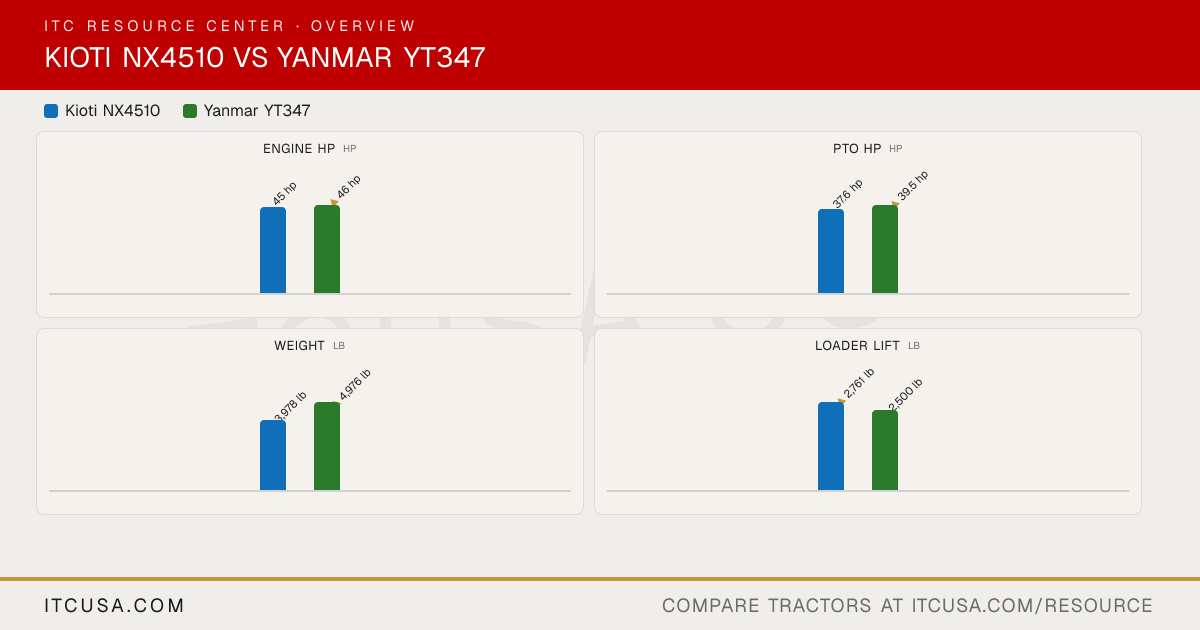

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX4510	YanmarYT347

▶Engine
PTO Power	37.6 hp	39.5 hp
Alternator	Not Published	55 A, 12 V
Air Cleaner	Not Published	Dual stage cyclonic (resin 5.5")
Engine Type	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI	4-cylinder, naturally aspirated diesel
Fuel System	Common Rail Direct Injection (CRDI)	Common rail direct injection
Displacement	111.4 in³	133.6 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Water-cooled	Liquid cooled
Engine Manufacturer	KIOTI (Daedong)	YANMAR
Engine Power (Gross)	45 hp	46 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	3,978 lb	4,976 lb
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
▶Hydraulics
Pump Type	Gear	Not Published
Steering Flow	8.2 gpm	5.7 gpm
Implement Flow	8.2 gpm	10.1 gpm
Total Hydraulic Flow	16.50 gpm	15.8 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.50 gpm	15.8 gpm
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	1	2
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent (electro-hydraulic)
Lift Control Type	Position with Draft Control	Position control
Hitch Lift Capacity	3,177 lbs (at 24 in)	3,307 lb
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	3,177 lbs	2,756 lb
▶Tire Options
R3 Turf - Rear	21.5lx16.1	44 x 18 - 20.0
R3 Turf - Front	29x12.5-15	27.0 - 10.5
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	14.9-24	4.6 gal - 24.0
R4 Industrial - Front	10-16.5	10.0 - 16.5
R1 Agricultural - Rear	13.6-24	14.9 - 24.0
R1 Agricultural - Front	8.0-16	8.0 - 16.0
▶Fluid Capacity
Coolant Capacity	2.0 gal	6.2 qt
Crankcase Capacity	1.58 gal	7.0 qt
Fuel Tank Capacity	14.8 gal	12.7 gal
Front Axle Fluid Capacity	1.8 gal	2.4 gal
Transmission / Hydraulic System Capacity	14.53 gal	7.7 gal
▶Loader & Attachments
Loader Lift Height	108.3 in	113 in
Loader Breakout Force	3,727 lb	3,969 lb
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	YL610: Skid-steer-style loader quick attachment system
Loader Lift Capacity (Full Height)	2,761 lb	2,500 lb
▶Transmission & Drivetrain
Clutch	Dry Type Single Stage	Clutch-less shifting (i-HMT)
No. of Speeds	24X24	3 ranges (variable speed)
Transmission Type	Synchro Shuttle	I-HMT (Integrated Hydro Mechanical Transmission)
Max Travel Speed (Forward)	15.71 mph	18 mph
Max Travel Speed (Reverse)	13.96 mph	18 mph
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Rear differential lock (foot pedal engagement)
▶Chassis, Steering & Controls
Brakes	Wet Multi Disc	Mechanical wet disc
Steering	Hydrostatic Power Steering	Fully hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Selectable 2WD/4WD engagement
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable Seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	75.6 in	75.9 in
Overall Width	65.6 in	70.6 in
Ground Clearance	13.7 in	12.8 in
Height to Top of ROPS	103.1 in	95.7 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	9.81 ft (2.99 m)	Not Published
Overall Length with 3-Point Hitch	139.6 in	130.9 in
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Kioti NX4510 vs Yanmar YT347: Quick Answers

Which has more horsepower, the Kioti NX4510 or the Yanmar YT347?

The Yanmar YT347 leads on engine hp at 46 hp hp, compared to 45 hp hp for the Kioti NX4510.

Which has more PTO horsepower, the Kioti NX4510 or the Yanmar YT347?

The Yanmar YT347 leads on pto hp at 39.5 hp hp, compared to 37.6 hp hp for the Kioti NX4510.

Which is heavier, the Kioti NX4510 or the Yanmar YT347?

The Yanmar YT347 leads on weight at 4,976 lb lb, compared to 3,978 lb lb for the Kioti NX4510.

Which has more loader lift capacity, the Kioti NX4510 or the Yanmar YT347?

The Kioti NX4510 leads on loader lift at 2,761 lb lb, compared to 2,500 lb lb for the Yanmar YT347.

Which has more three-point hitch lift capacity, the Kioti NX4510 or the Yanmar YT347?

The Kioti NX4510 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,756 lb lb for the Yanmar YT347.
