Kioti NX4510C vs New Holland TC45DA

Across 8 measurable specs, the Kioti NX4510C leads 6 categories to 1 (1 tied). Machine pages: Kioti NX4510C and New Holland TC45DA.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

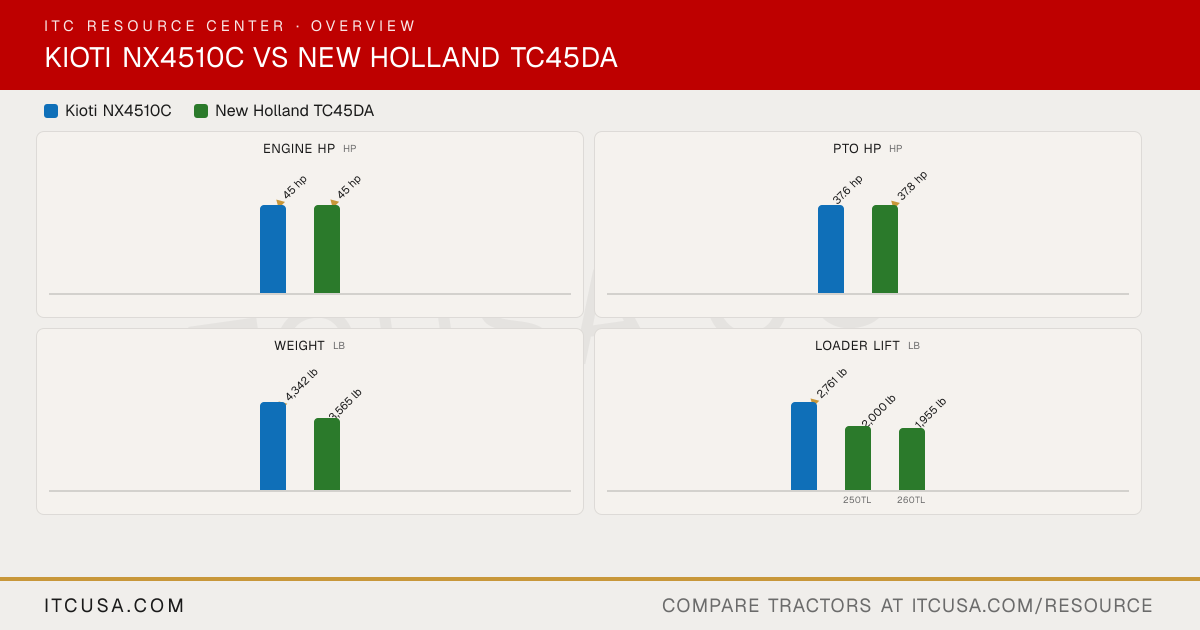

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX4510C	New HollandTC45DA

▶Engine
Engine Manufacturer	KIOTI (Daedong)	Shibaura
Engine Model	3F183T	N844L
Engine Type	KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI	4-cylinder diesel
No. of Cylinders	3	4
Displacement	111.4 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	45 hp
PTO Power	37.6 hp	37.8 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry type element	Dual dry element
Fuel System	Common Rail Direct Injection (CRDI)	Not Published
Alternator	Not Published	40 A
▶Hydraulics
Pump Type	Gear	Gear pump
Implement Flow	8.2 gpm	9.8 gpm
Steering Flow	8.2 gpm	5.1 gpm
Total Hydraulic Flow	16.5 gpm	14.9 gpm
Overall Hydraulic Pump Flow	16.5 gpm	14.9 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	1	3 rear (optional); 2 mid (optional)
▶Fluid Capacity
Fuel Tank Capacity	14.8 gal	13 gal
Coolant Capacity	2.0 gal	8.4 qt
Crankcase Capacity	1.58 gal	6.3 qt
Transmission / Hydraulic System Capacity	14.53 gal	38 qt
Front Axle Fluid Capacity	1.8 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm (1.375 in) at 2400 engine rpm
Mid-PTO Availability	Optional (2,000 rpm)	Optional (with hydrostatic transmission)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,538 lb	Not Published
Hitch Lift Capacity (at 24”)	3,177 lb	2,330 lb
Lift Control Type	Position with Draft Control	Deluxe 3-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)
▶Transmission & Drivetrain
Transmission Type	Synchro Shuttle	2-range hydrostatic with DualPower Hi/Lo powershift
No. of Speeds	24x24	Infinite (2 hydrostatic ranges, each with DualPower High/Low)
Max Travel Speed (Forward)	15.71 mph	Not Published
Max Travel Speed (Reverse)	13.96 mph	Not Published
Clutch	Dry Type Single Stage	Not Published
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Brakes	Wet Multi Disc	Wet disc
Seat Suspension & Adjustability	Adjustable Seat	Accommodator seat on an inclined sliding track, 3 in of vertical suspension, swivels up to 20 degrees (5 positions); cab: cloth seat with weight-adjustable suspension
Front Axle Type	Not Published	FWD (standard); SuperSteer FWD with Sensitrak automatic 4WD engagement (optional); 2WD not available
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,655 lb (max. drawbar vertical load)	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	139.6 in	FWD: 125.2 in; SuperSteer FWD: 129.5 in
Overall Width	65.6 in	66.6 in (ag tires)
Wheelbase	75.6 in	FWD: 73.5 in; SuperSteer FWD: 81.0 in
Ground Clearance	13.8 in	Not Published
Min. Turn Radius without Brakes	9.8 ft	Not Published
Height to Top of ROPS	Not Published	95 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94.1 in	90.1 in (R4 tires)
▶Weight
Tractor Weight (Base)	4,342 lb	3,565 lb (FWD ROPS, R4 tires); 4,115 lb (TC45DA CAB)
Weight with ROPS and Loader	Not Published	4,770 lb
Weight with Cab and Loader	Not Published	5,320 lb
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Agricultural, industrial or turf tires; Galaxy Turf Special available from the factory
R1 Agricultural - Front	8-16	2WD: 5.50-16 or 7.50-15; 4WD: 7-16 or 8-16
R1 Agricultural - Rear	13.6-24	13.6-24 or 14.9-24
R3 Turf - Front	29-12.5-15	2WD: 25x8.50-14; 4WD: 27x8.50-15
R3 Turf - Rear	21.5L-16.1	44x18-20
R4 Industrial - Front	10-16.5	10-16.5
R4 Industrial - Rear	14.9-24	17.5-24
▶Loader & Attachments
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	Quick-Mount loader mounting; pin-on or quick-attach buckets
Loader Model	KL6010	250TL (non SuperSteer); 260TL (with SuperSteer)
Loader Lift Height	KL6010: 108.3 in (to pivot pin)	250TL: 105 in; 260TL: 106 in
Loader Lift Capacity (Full Height)	KL6010: 2,761 lb (at pivot pin, max height)	250TL: 2,000 lb; 260TL: 1,955 lb (at pins, max height)
Loader Breakout Force	KL6010: 3,727 lb (at pivot pin)	250TL: 3,540 lb; 260TL: 3,254 lb (at pins)
▶Warranty
Warranty Length & Coverage	Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor	Not Published
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Find a KIOTI dealer near you→Find a New Holland dealer near you→

Kioti NX4510C vs New Holland TC45DA: Quick Answers

Which has more horsepower, the Kioti NX4510C or the New Holland TC45DA?

They are effectively tied: both machines are rated at 45 hp hp for engine hp.

Which has more PTO horsepower, the Kioti NX4510C or the New Holland TC45DA?

The New Holland TC45DA leads on pto hp at 37.8 hp hp, compared to 37.6 hp hp for the Kioti NX4510C.

Which is heavier, the Kioti NX4510C or the New Holland TC45DA?

The Kioti NX4510C leads on weight at 4,342 lb lb, compared to 3,565 lb lb for the New Holland TC45DA.

Which has more loader lift capacity, the Kioti NX4510C or the New Holland TC45DA?

The Kioti NX4510C leads on loader lift at 2,761 lb lb, compared to 2,000 lb lb for the New Holland TC45DA.

Which has more three-point hitch lift capacity, the Kioti NX4510C or the New Holland TC45DA?

The Kioti NX4510C leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,330 lb lb for the New Holland TC45DA.
