Kioti NX5510CH vs New Holland Boomer 55

Across 9 measurable specs, the Kioti NX5510CH leads 5 categories to 3 (1 tied). Machine pages: Kioti NX5510CH and New Holland Boomer 55.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

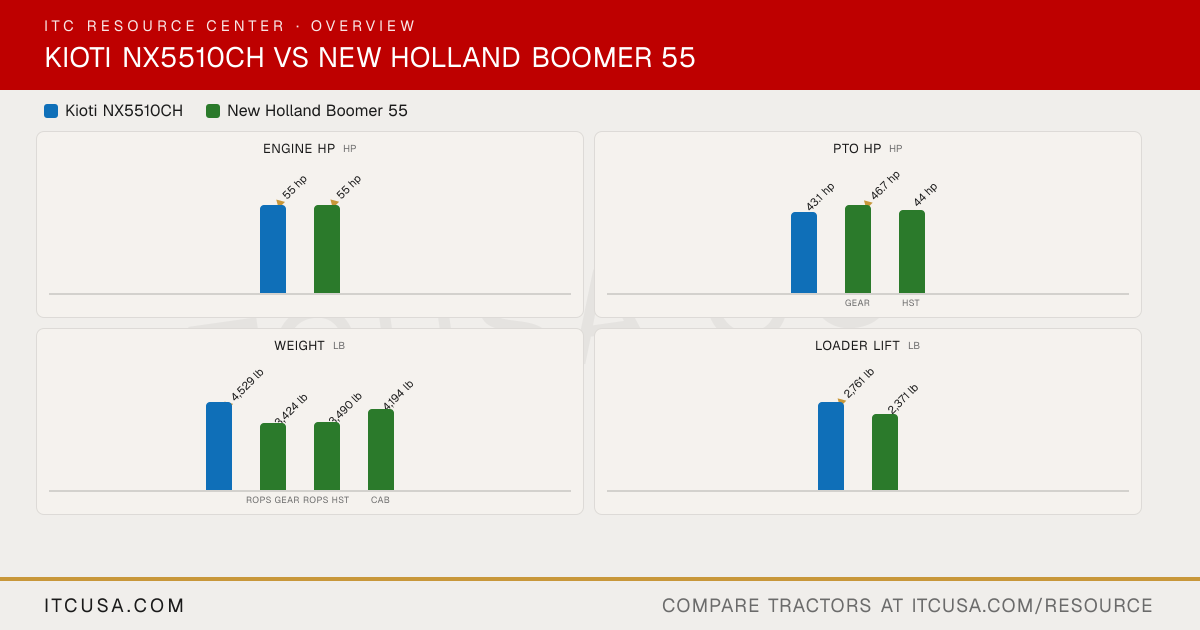

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX5510CH	New HollandBoomer 55

▶Engine
Engine Manufacturer	KIOTI (Daedong)	LS Mtron
Engine Model	3F183T	L3CRV-T7
Engine Type	KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	55 hp	55 hp
PTO Power	43.1 hp	Gear: 46.7 hp; HST: 44 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry type element	Replaceable primary and inner elements
Fuel System	Common Rail Direct Injection (CRDI)	Electronically controlled common rail direct injection
Alternator	Not Published	ROPS: 70 A, 12 V; Cab: 85 A, 12 V
▶Hydraulics
Pump Type	Gear	Gear
Implement Flow	9.6 gpm	8.2 gpm
Steering Flow	8.2 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	17.9 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	17.9 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	1	Up to 2 (second valve optional)
▶Fluid Capacity
Fuel Tank Capacity	14.8 gal	ROPS: 10.5 gal; Cab: 12.4 gal
Coolant Capacity	2.0 gal	2.3 gal
Crankcase Capacity	1.58 gal	5.8 qt
Transmission / Hydraulic System Capacity	11.89 gal	11.4 gal
Front Axle Fluid Capacity	1.8 gal	2.2 gal
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional (2,000 rpm)	Standard (2000 rpm)
Category, 3-Point Hitch	Category I & II	Category I
Hitch Lift Capacity	3,538 lb	2,756 lb
Hitch Lift Capacity (at 24”)	3,177 lb	2,116 lb
Lift Control Type	Position with Draft Control	Position control (draft control optional)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic	Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	3 Range	Gear: 16F/16R; HST: 3-range
Max Travel Speed (Forward)	18.26 mph	Gear: 17.0 mph; HST: 17.9 mph
Max Travel Speed (Reverse)	18.26 mph	Gear: 15.3 mph; HST: 11.37 mph
Clutch	Not Published	Gear: dry single disc (10.8 in); HST: n/a
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Mechanical rear differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Power steering
Brakes	Wet Multi Disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable Seat	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests
Front Axle Type	Not Published	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,655 lb (max. drawbar vertical load)	Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	139.6 in	128.1 in
Overall Width	65.7 in	69.1 in
Wheelbase	75.6 in	73.2 in
Ground Clearance	15.7 in	15 in
Min. Turn Radius without Brakes	10.0 ft	111.8 in (right turn); 123.2 in (left turn) (with brake applied)
Height to Top of ROPS	Not Published	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94.1 in	94 in
▶Weight
Tractor Weight (Base)	4,529 lb	ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5-16	9.5-16
R1 Agricultural - Rear	16.9-24	13.6-24
R3 Turf - Front	29-12.5-15	28x8.50-15
R3 Turf - Rear	21.5L-16.1	41x14.00-20
R4 Industrial - Front	10-16.5	12x16.5
R4 Industrial - Rear	17.5-24	17.5Lx24
▶Loader & Attachments
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	New Holland Quick Mount loader; optional skid steer quick attach plates
Loader Model	KL6010	260TLA
Loader Lift Height	KL6010: 108.3 in (to pivot pin)	260TLA: 109 in
Loader Lift Capacity (Full Height)	KL6010: 2,761 lb (at pivot pin, max height)	260TLA: 2,371 lb
Loader Breakout Force	KL6010: 3,727 lb (at pivot pin)	260TLA: 4,081 lb
▶Warranty
Warranty Length & Coverage	Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor	Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Find a KIOTI dealer near you→Find a New Holland dealer near you→

Kioti NX5510CH vs New Holland Boomer 55: Quick Answers

Which has more horsepower, the Kioti NX5510CH or the New Holland Boomer 55?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Kioti NX5510CH or the New Holland Boomer 55?

The New Holland Boomer 55 leads on pto hp at 46.7 hp hp, compared to 43.1 hp hp for the Kioti NX5510CH.

Which is heavier, the Kioti NX5510CH or the New Holland Boomer 55?

The Kioti NX5510CH leads on weight at 4,529 lb lb, compared to 4,194 lb lb for the New Holland Boomer 55.

Which has more loader lift capacity, the Kioti NX5510CH or the New Holland Boomer 55?

The Kioti NX5510CH leads on loader lift at 2,761 lb lb, compared to 2,371 lb lb for the New Holland Boomer 55.

Which has more three-point hitch lift capacity, the Kioti NX5510CH or the New Holland Boomer 55?

The Kioti NX5510CH leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,116 lb lb for the New Holland Boomer 55.
