Kioti NX5510H vs Kubota MX5200
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kioti NX5510H leads 6 categories to 2. Machine pages: Kioti NX5510H and Kubota MX5200.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

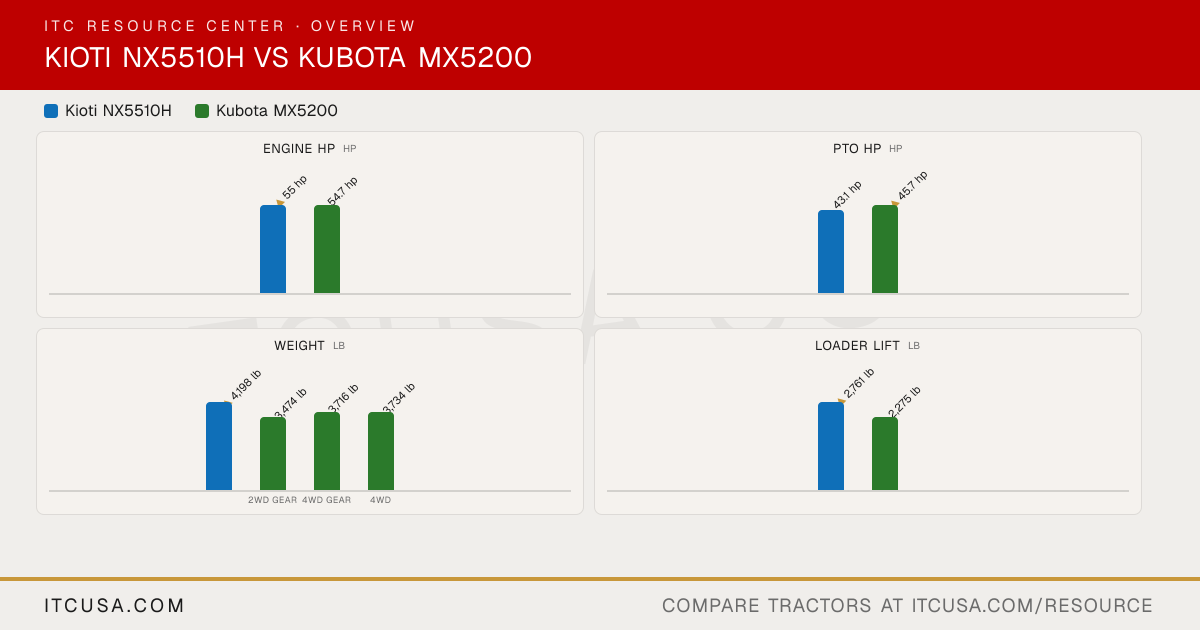

Category Verdict
| Spec | Kioti NX5510H | Kubota MX5200 |
|---|---|---|
| Engine HP (hp) | ▲ 55 hp | 54.7 hp |
| PTO HP (hp) | 43.1 hp | ▲ 45.7 hp |
| Weight (lb) | ▲ 4,198 lb | 3,734 lb |
| Loader Lift (lb) | ▲ 2,761 lb | 2,275 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,177 lb | 2,310 lb |
| Lift Height (in) | 108.3 in | ▲ 111.2 in |
| Breakout Force (lbf) | 3,727 lbf | n/a |
| Hydraulic Flow (gpm) | ▲ 17.9 gpm | 14.4 gpm |
| Travel Speed (mph) | ▲ 18.3 mph | 16 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KiotiNX5510H | KubotaMX5200 |
|---|
| Engine Manufacturer | KIOTI (Daedong) | Kubota |
|---|---|---|
| Engine Model | 3F183T | V2403CR-T |
| Engine Type | KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI | Common rail direct injection, liquid-cooled, turbocharged 4-cylinder diesel |
| No. of Cylinders | 3 | 4 |
| Displacement | 111.4 in³ | 148.6 in³ |
| Rated Engine Speed | 2600 rpm | 2700 rpm |
| Engine Power (Gross) | 55 hp | 54.7 hp |
| PTO Power | 43.1 hp | F (2WD gear), DT (4WD gear): 45.7 hp; HST (4WD): 44.2 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Water-cooled | Liquid-cooled |
| Air Cleaner | Dry type element | Dry, dual element |
| Fuel System | Common Rail Direct Injection (CRDI) | Common rail direct injection |
| Alternator | Not Published | 45 A |
Kioti NX5510H vs Kubota MX5200: Quick Answers
- Which has more horsepower, the Kioti NX5510H or the Kubota MX5200?
- The Kioti NX5510H leads on engine hp at 55 hp hp, compared to 54.7 hp hp for the Kubota MX5200.
- Which has more PTO horsepower, the Kioti NX5510H or the Kubota MX5200?
- The Kubota MX5200 leads on pto hp at 45.7 hp hp, compared to 43.1 hp hp for the Kioti NX5510H.
- Which is heavier, the Kioti NX5510H or the Kubota MX5200?
- The Kioti NX5510H leads on weight at 4,198 lb lb, compared to 3,734 lb lb for the Kubota MX5200.
- Which has more loader lift capacity, the Kioti NX5510H or the Kubota MX5200?
- The Kioti NX5510H leads on loader lift at 2,761 lb lb, compared to 2,275 lb lb for the Kubota MX5200.
- Which has more three-point hitch lift capacity, the Kioti NX5510H or the Kubota MX5200?
- The Kioti NX5510H leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,310 lb lb for the Kubota MX5200.
