Across 8 measurable specs, the Kubota B26 leads 8 categories to 0. Machine pages: Kubota B2400 and Kubota B26.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Kubota B2400 | Kubota B26 |
|---|
| Engine HP (hp) | 24 hp | ▲ 26 hp |
| PTO HP (hp) | 18 hp | ▲ 19.5 hp |
| Weight (lb) | 1,570 lb | ▲ 2,606 lb |
| Loader Lift (lb) | 770 lb | ▲ 1,301 lb |
| 3-Pt Lift (24 in) (lb) | 1,015 lb | ▲ 1,676 lb |
| Lift Height (in) | 70.5 in | ▲ 94.5 in |
| Breakout Force (lbf) | 1,335 lbf | ▲ 2,343 lbf |
| Hydraulic Flow (gpm) | 5.8 gpm | ▲ 11.1 gpm |
| Travel Speed (mph) | n/a | 11.1 mph |

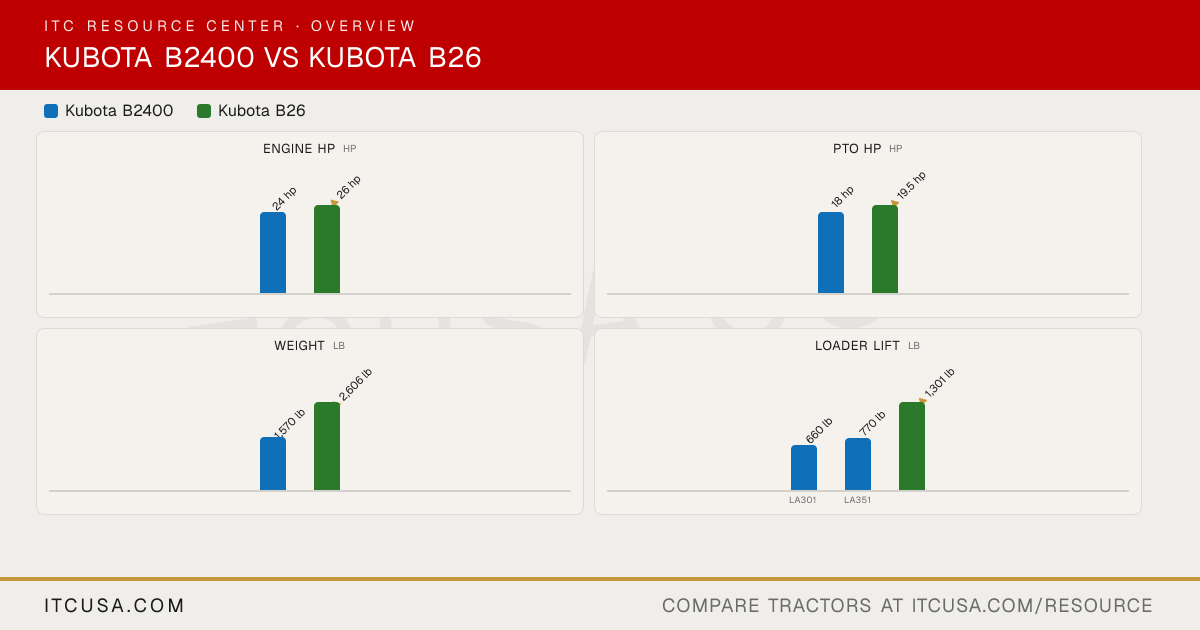

The headline numbers at a glance.
Kubota B2400Kubota B26
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
|
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | D1105-D10 | D1105-E4-TLB-1 |
|---|
| Engine Type | Diesel, 3-cylinder, liquid-cooled, indirect injection | E-TVCS, 3-cylinder, liquid-cooled diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 68.5 in³ | 68.5 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2800 rpm |
|---|
| Engine Power (Gross) | 24 hp | 26 hp |
|---|
| PTO Power | 18 hp | 19.5 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Single element |
|---|
| Fuel System | Indirect injection | Indirect injection (E-TVCS) |
|---|
| Alternator | Not Published | 40 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 5.8 gpm | 7.0 gpm |
|---|
| Steering Flow | Not Published | 4.2 gpm |
|---|
| Total Hydraulic Flow | Not Published | 11.1 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 11.1 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | Not Published | Up to 3 |
|---|
|
|---|
| Fuel Tank Capacity | 6.3 gal | 8.1 gal |
|---|
| Coolant Capacity | 3.6 qt | 4.7 qt |
|---|
| Crankcase Capacity | 3.6 qt | 3.2 qt |
|---|
| Transmission / Hydraulic System Capacity | 3.2 gal | 6.9 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 4.7 qt |
|---|
|
|---|
| PTO Type | Live | Independent |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Mid-PTO, 2537 rpm (Kubota 10-tooth) | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I (optional) |
|---|
| Hitch Lift Capacity | 1280 lb | 2139 lb |
|---|
| Hitch Lift Capacity (at 24”) | 1015 lb | 1676 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | Hydrostatic transmission, 2-range | HST Plus hydrostatic transmission, 3-range |
|---|
| No. of Speeds | 2-range | 3-range (infinite) |
|---|
| Max Travel Speed (Forward) | Not Published | 11.1 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | 9.8 mph |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Rear axle differential lock standard |
|---|
|
|---|
| Frame Type | Two-post ROPS | Four-post ROPS/FOPS standard |
|---|
| Steering | Power steering | Hydrostatic power steering |
|---|
| Brakes | Wet disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Reversible seat; tilt steering standard |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | 1100 lb |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 91.7 in | 100.7 in (w/o 3P) (without 3-point hitch) |
|---|
| Overall Width | 46.3 in | 53.7 in |
|---|
| Wheelbase | 59.4 in | 62.2 in |
|---|
| Ground Clearance | 12.8 in | 13.8 in |
|---|
| Min. Turn Radius without Brakes | Not Published | 8.2 ft |
|---|
| Height to Top of ROPS | 77.4 in | 89.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 1570 lb | 2606 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Ag: 6.50-10 (2WD) or 7.00-12 (4WD) front, 11.2-16 rear | Industrial (R4): 23x8.5-14 R4 front, 12.4-16 R4 rear; turf 24x8.50-14 front, 13.6-16 rear |
|---|
| R1 Agricultural - Front | 2WD: 6.50-10; 4WD: 7.00-12 | Not Published |
|---|
| R1 Agricultural - Rear | 11.2-16 | Not Published |
|---|
| R3 Turf - Front | Not Published | 24x8.50-14 |
|---|
| R3 Turf - Rear | Not Published | 13.6-16 |
|---|
| R4 Industrial - Front | Not Published | 23x8.50-14 R4 |
|---|
| R4 Industrial - Rear | Not Published | 12.4-16 R4 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | TL500: 2-lever quick coupler standard |
|---|
| Loader Model | LA301; LA351 | TL500 |
|---|
| Loader Lift Height | LA301: 70.5 in; LA351: 70.5 in | TL500: 94.5 in |
|---|
| Loader Lift Capacity (Full Height) | LA301: 660 lb; LA351: 770 lb | TL500: 1301 lb |
|---|
| Loader Breakout Force | LA301: 1150 lbf; LA351: 1335 lbf | TL500: 2343 lbf |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
Kubota B2400 vs Kubota B26: Quick Answers
- Which has more horsepower, the Kubota B2400 or the Kubota B26?
- The Kubota B26 leads on engine hp at 26 hp hp, compared to 24 hp hp for the Kubota B2400.
- Which has more PTO horsepower, the Kubota B2400 or the Kubota B26?
- The Kubota B26 leads on pto hp at 19.5 hp hp, compared to 18 hp hp for the Kubota B2400.
- Which is heavier, the Kubota B2400 or the Kubota B26?
- The Kubota B26 leads on weight at 2,606 lb lb, compared to 1,570 lb lb for the Kubota B2400.
- Which has more loader lift capacity, the Kubota B2400 or the Kubota B26?
- The Kubota B26 leads on loader lift at 1,301 lb lb, compared to 770 lb lb for the Kubota B2400.
- Which has more three-point hitch lift capacity, the Kubota B2400 or the Kubota B26?
- The Kubota B26 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,015 lb lb for the Kubota B2400.
