Bad Boy Tractors 3026 vs Kubota B2400

Across 8 measurable specs, the Bad Boy Tractors 3026 leads 5 categories to 1 (2 tied). Machine pages: Bad Boy Tractors 3026 and Kubota B2400.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

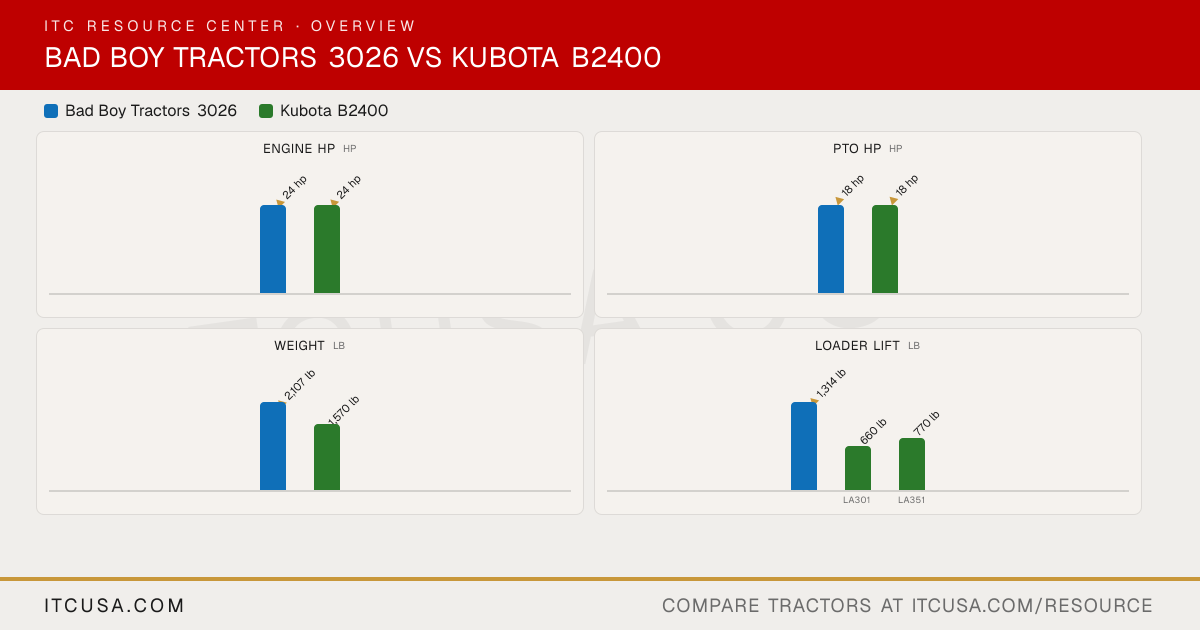

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KubotaB2400

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1100N2	D1105-D10
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	Diesel, 3-cylinder, liquid-cooled, indirect injection
No. of Cylinders	3	3
Displacement	70.7 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	18 hp	18 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Indirect injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	5.8 gpm
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	Not Published
Overall Hydraulic Pump Flow	7.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	6.3 gal
Coolant Capacity	1.21 gal	3.6 qt
Crankcase Capacity	0.79 gal	3.6 qt
Transmission / Hydraulic System Capacity	2.90 gal	3.2 gal
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Live
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Mid-PTO, 2537 rpm (Kubota 10-tooth)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1280 lb
Hitch Lift Capacity (at 24”)	974 lb	1015 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission, 2-range
No. of Speeds	3 range (L/M/H)	2-range
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Two-post ROPS
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	91.7 in
Overall Width	53.9 in	46.3 in
Wheelbase	65.7 in	59.4 in
Ground Clearance	16.4 in	12.8 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	77.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	1570 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	Ag: 6.50-10 (2WD) or 7.00-12 (4WD) front, 11.2-16 rear
R1 Agricultural - Front	7-16 6PR	2WD: 6.50-10; 4WD: 7.00-12
R1 Agricultural - Rear	11.2-20	11.2-16
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	14-17.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	LA301; LA351
Loader Lift Height	87.5 in	LA301: 70.5 in; LA351: 70.5 in
Loader Lift Capacity (Full Height)	1,314 lb	LA301: 660 lb; LA351: 770 lb
Loader Breakout Force	1,960 lbf	LA301: 1150 lbf; LA351: 1335 lbf
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 3026 vs Kubota B2400: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Kubota B2400?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kubota B2400?

They are effectively tied: both machines are rated at 18 hp hp for pto hp.

Which is heavier, the Bad Boy Tractors 3026 or the Kubota B2400?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,570 lb lb for the Kubota B2400.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kubota B2400?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 770 lb lb for the Kubota B2400.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kubota B2400?

The Kubota B2400 leads on 3-pt lift (24 in) at 1,015 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
