Kubota B2400 vs Kubota BX2360

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota B2400 leads 5 categories to 3. Machine pages: Kubota B2400 and Kubota BX2360.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota B2400	Kubota BX2360
Engine HP (hp)	▲ 24 hp	23 hp
PTO HP (hp)	▲ 18 hp	17.7 hp
Weight (lb)	▲ 1,570 lb	1,322 lb
Loader Lift (lb)	▲ 770 lb	750 lb
3-Pt Lift (24 in) (lb)	▲ 1,015 lb	670 lb
Lift Height (in)	70.5 in	▲ 71.3 in
Breakout Force (lbf)	1,335 lbf	▲ 1,415 lbf
Hydraulic Flow (gpm)	5.8 gpm	▲ 6.3 gpm
Travel Speed (mph)	n/a	8.4 mph

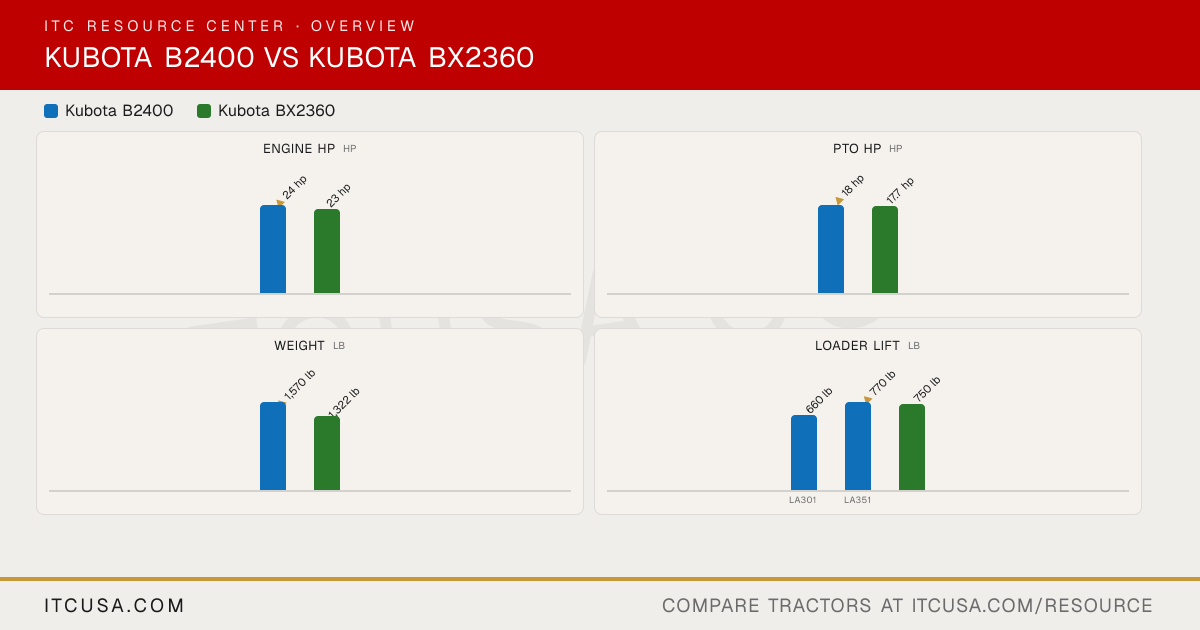

The headline numbers at a glance.

Kubota B2400Kubota BX2360

Engine HPhp

▲24 hp

23 hp

PTO HPhp

▲18 hp

17.7 hp

Weightlb

▲1,570 lb

1,322 lb

Loader Liftlb

660 lb

▲770 lb

750 lb

LA301LA351

3-Pt Lift (24 in)lb

▲1,015 lb

670 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2400	KubotaBX2360


Engine Manufacturer	Kubota	Kubota
Engine Model	D1105-D10	D902
Engine Type	Diesel, 3-cylinder, liquid-cooled, indirect injection	Liquid-cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	68.5 in³	54.8 in³
Rated Engine Speed	2600 rpm	3200 rpm
Engine Power (Gross)	24 hp	23 hp
PTO Power	18 hp	17.7 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect injection	Indirect injection
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	5.8 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	Not Published	6.3 gpm
Overall Hydraulic Pump Flow	Not Published	6.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.3 gal	6.6 gal
Coolant Capacity	3.6 qt	2.8 qt
Crankcase Capacity	3.6 qt	3.3 qt
Transmission / Hydraulic System Capacity	3.2 gal	3.06 gal
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Live	Live independent, wet hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Mid-PTO, 2537 rpm (Kubota 10-tooth)	Standard mid-PTO, 2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1280 lb	1210 lb
Hitch Lift Capacity (at 24”)	1015 lb	670 lb
Lift Control Type	Position control	Directional control with auto-return lever

Transmission Type	Hydrostatic transmission, 2-range	Hydrostatic transmission with High-Low gear shift, 2-range
No. of Speeds	2-range	2-range
Max Travel Speed (Forward)	Not Published	8.4 mph
Max Travel Speed (Reverse)	Not Published	6.2 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Rear differential lock standard

Frame Type	Two-post ROPS	Two-post ROPS (foldable ROPS on BX25 only)
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Selectable 2WD and 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	91.7 in	95.5 in
Overall Width	46.3 in	44.5 in
Wheelbase	59.4 in	55.1 in
Ground Clearance	12.8 in	8.7 in
Min. Turn Radius without Brakes	Not Published	7.5 ft
Height to Top of ROPS	77.4 in	70.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1570 lb	1322 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag: 6.50-10 (2WD) or 7.00-12 (4WD) front, 11.2-16 rear	Turf, bar (ag) or industrial: 18x8.5-10 front, 26x12-12 rear
R1 Agricultural - Front	2WD: 6.50-10; 4WD: 7.00-12	18x8.5-10
R1 Agricultural - Rear	11.2-16	26x12-12
R3 Turf - Front	Not Published	18x8.5-10
R3 Turf - Rear	Not Published	26x12-12
R4 Industrial - Front	Not Published	18x8.5-10
R4 Industrial - Rear	Not Published	26x12-12

Quick Attach Loader System	Not Published	Not Published
Loader Model	LA301; LA351	LA243
Loader Lift Height	LA301: 70.5 in; LA351: 70.5 in	LA243: 71.3 in
Loader Lift Capacity (Full Height)	LA301: 660 lb; LA351: 770 lb	LA243: 750 lb
Loader Breakout Force	LA301: 1150 lbf; LA351: 1335 lbf	LA243: 1415 lbf

Warranty Length & Coverage	Not Published	Not Published

Find a Kubota dealer near you

Kubota B2400 vs Kubota BX2360: Quick Answers

Which has more horsepower, the Kubota B2400 or the Kubota BX2360?: The Kubota B2400 leads on engine hp at 24 hp hp, compared to 23 hp hp for the Kubota BX2360.
Which has more PTO horsepower, the Kubota B2400 or the Kubota BX2360?: The Kubota B2400 leads on pto hp at 18 hp hp, compared to 17.7 hp hp for the Kubota BX2360.
Which is heavier, the Kubota B2400 or the Kubota BX2360?: The Kubota B2400 leads on weight at 1,570 lb lb, compared to 1,322 lb lb for the Kubota BX2360.
Which has more loader lift capacity, the Kubota B2400 or the Kubota BX2360?: The Kubota B2400 leads on loader lift at 770 lb lb, compared to 750 lb lb for the Kubota BX2360.
Which has more three-point hitch lift capacity, the Kubota B2400 or the Kubota BX2360?: The Kubota B2400 leads on 3-pt lift (24 in) at 1,015 lb lb, compared to 670 lb lb for the Kubota BX2360.
