Across 8 measurable specs, the Kubota LX2610 leads 8 categories to 0. Machine pages: Kubota B2400 and Kubota LX2610 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

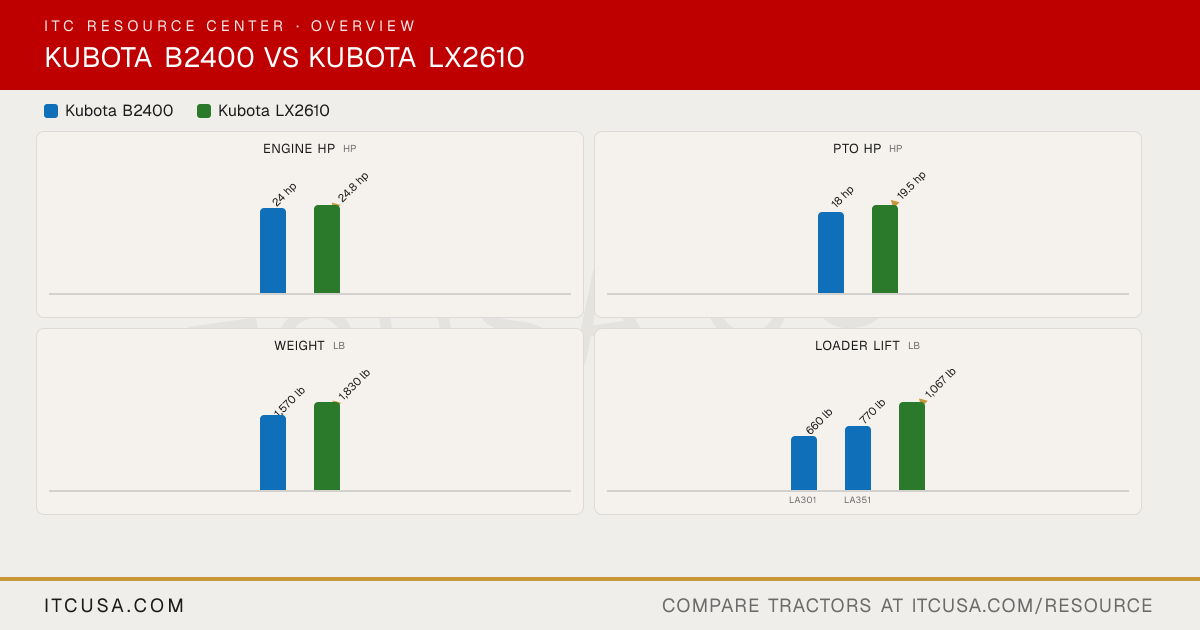

Category Verdict Spec Kubota B2400 Kubota LX2610 Engine HP (hp) 24 hp ▲ 24.8 hpPTO HP (hp) 18 hp ▲ 19.5 hpWeight (lb) 1,570 lb ▲ 1,830 lbLoader Lift (lb) 770 lb ▲ 1,067 lb3-Pt Lift (24 in) (lb) 1,015 lb ▲ 1,676 lbLift Height (in) 70.5 in ▲ 84 inBreakout Force (lbf) 1,335 lbf ▲ 2,245 lbfHydraulic Flow (gpm) 5.8 gpm ▲ 8.7 gpmTravel Speed (mph) n/a 11.2 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
Kubota B2400 Kubota LX2610
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kubota B2400 Kubota LX2610
▶ EngineEngine Manufacturer Kubota Kubota Engine Model D1105-D10 D1305-E4-D36-R Engine Type Diesel, 3-cylinder, liquid-cooled, indirect injection E-TVCS, liquid cooled, 3-cylinder, diesel No. of Cylinders 3 3 Displacement 68.5 in³ 77 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 24 hp 24.8 hp PTO Power 18 hp 19.5 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Pressurized radiator Air Cleaner Not Published 4.5 in Dual paper element Fuel System Indirect injection Indirect injection Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Not Published Dual pump Implement Flow 5.8 gpm 5.0 gpm Steering Flow Not Published 3.7 gpm Total Hydraulic Flow Not Published 8.7 gpm Overall Hydraulic Pump Flow Not Published 8.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 0 No. of Optional Remote Valves Not Published Optional, up to 2 ▶ Fluid CapacityFuel Tank Capacity 6.3 gal 7.1 gal Coolant Capacity 3.6 qt 4.5 qt Crankcase Capacity 3.6 qt 4.2 qt Transmission / Hydraulic System Capacity 3.2 gal 4.0 gal Front Axle Fluid Capacity Not Published 5.0 qt ▶ PTO & HitchPTO Type Live Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Mid-PTO, 2537 rpm (Kubota 10-tooth) 2500 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1280 lb 2139 lb Hitch Lift Capacity (at 24”) 1015 lb 1676 lb Lift Control Type Position control Position control valve ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission, 2-range Hydrostatic transmission No. of Speeds 2-range 3 ranges Max Travel Speed (Forward) Not Published 11.2 mph Max Travel Speed (Reverse) Not Published 8.4 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Differential lock standard ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS Not Published Steering Power steering Hydraulic power steering Brakes Wet disc Multi-plate wet disc Seat Suspension & Adjustability Not Published Deluxe high-back suspension seat Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1100 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 91.7 in 101.8 in (without 3-point hitch) Overall Width 46.3 in 53.7 in Wheelbase 59.4 in 65.6 in Ground Clearance 12.8 in 14.6 in Min. Turn Radius without Brakes Not Published 6.9 ft (with brake applied) Height to Top of ROPS 77.4 in 88.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 84.6 in ▶ WeightTractor Weight (Base) 1570 lb 1830 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag: 6.50-10 (2WD) or 7.00-12 (4WD) front, 11.2-16 rear R1 Agricultural, R4 Industrial, R14 R1 Agricultural - Front 2WD: 6.50-10; 4WD: 7.00-12 7.0-12 R1 Agricultural - Rear 11.2-16 12.4-16 R3 Turf - Front Not Published 24x8.50-14 R3 Turf - Rear Not Published 13.6-16 R4 Industrial - Front Not Published 23X8.50-14 / 25X8.50-14 R4 Industrial - Rear Not Published 12.4-16 / 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT)) Loader Model LA301; LA351 LA535 Loader Lift Height LA301: 70.5 in; LA351: 70.5 in 84 in Loader Lift Capacity (Full Height) LA301: 660 lb; LA351: 770 lb 1067 lb Loader Breakout Force LA301: 1150 lbf; LA351: 1335 lbf 2245 lb ▶ WarrantyWarranty Length & Coverage Not Published Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Kubota B2400 vs Kubota LX2610: Quick Answers
Which has more horsepower, the Kubota B2400 or the Kubota LX2610? The Kubota LX2610 leads on engine hp at 24.8 hp hp, compared to 24 hp hp for the Kubota B2400.
Which has more PTO horsepower, the Kubota B2400 or the Kubota LX2610? The Kubota LX2610 leads on pto hp at 19.5 hp hp, compared to 18 hp hp for the Kubota B2400.
Which is heavier, the Kubota B2400 or the Kubota LX2610? The Kubota LX2610 leads on weight at 1,830 lb lb, compared to 1,570 lb lb for the Kubota B2400.
Which has more loader lift capacity, the Kubota B2400 or the Kubota LX2610? The Kubota LX2610 leads on loader lift at 1,067 lb lb, compared to 770 lb lb for the Kubota B2400.
Which has more three-point hitch lift capacity, the Kubota B2400 or the Kubota LX2610? The Kubota LX2610 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,015 lb lb for the Kubota B2400. More Head-to-Heads
