Kubota B2400 vs Kubota LX2610SU

Across 8 measurable specs, the Kubota LX2610SU leads 8 categories to 0. Machine pages: Kubota B2400 and Kubota LX2610SU.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

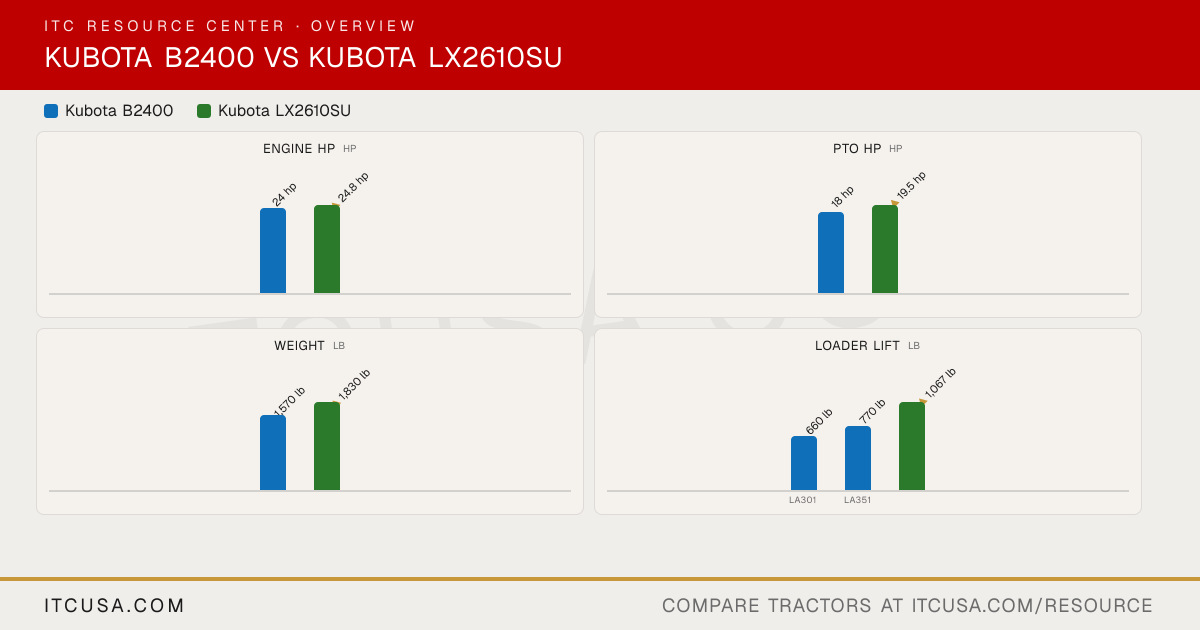

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2400	KubotaLX2610SU

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1105-D10	D1305-E4-D36-R
Engine Type	Diesel, 3-cylinder, liquid-cooled, indirect injection	3-cylinder, indirect injection, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	68.5 in³	77 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	24 hp	24.8 hp
PTO Power	18 hp	19.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Pressurized radiator
Air Cleaner	Not Published	4.5 in Dual paper element
Fuel System	Indirect injection	Indirect injection
Alternator	Not Published	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual pump
Implement Flow	5.8 gpm	5.0 gpm
Steering Flow	Not Published	3.7 gpm
Total Hydraulic Flow	Not Published	8.7 gpm
Overall Hydraulic Pump Flow	Not Published	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None (remote valves optional)
No. of Optional Remote Valves	Not Published	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	6.3 gal	7.1 gal
Coolant Capacity	3.6 qt	4.5 qt
Crankcase Capacity	3.6 qt	4.2 qt
Transmission / Hydraulic System Capacity	3.2 gal	4.0 gal
Front Axle Fluid Capacity	Not Published	5.0 qt
▶PTO & Hitch
PTO Type	Live	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Mid-PTO, 2537 rpm (Kubota 10-tooth)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,280 lb	2,139 lb
Hitch Lift Capacity (at 24”)	1,015 lb	1,676 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission, 2-range	Hydrostatic transmission
No. of Speeds	2-range	3 ranges
Max Travel Speed (Forward)	Not Published	11.2 mph
Max Travel Speed (Reverse)	Not Published	8.4 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Two-post ROPS	Not Published
Steering	Power steering	Hydraulic power steering
Brakes	Wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	Standard seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	91.7 in	101.8 in (without 3-point hitch)
Overall Width	46.3 in	53.7 in
Wheelbase	59.4 in	65.6 in
Ground Clearance	12.8 in	14.6 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	77.4 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1,570 lb	1,830 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Ag: 6.50-10 (2WD) or 7.00-12 (4WD) front, 11.2-16 rear	R1 Agricultural, R4 Industrial, R14
R1 Agricultural - Front	2WD: 6.50-10; 4WD: 7.00-12	7-12
R1 Agricultural - Rear	11.2-16	12.4-16
R3 Turf - Front	Not Published	24x8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	Not Published	23X8.50-14 / 25X8.50-14
R4 Industrial - Rear	Not Published	12.4-16 / 15-19.5
▶Loader & Attachments
Quick Attach Loader System	Not Published	LA535: 2-lever quick coupler, standard; Swift-Tach, optional
Loader Model	LA301; LA351	LA535
Loader Lift Height	LA301: 70.5 in; LA351: 70.5 in	84 in
Loader Lift Capacity (Full Height)	LA301: 660 lb; LA351: 770 lb	1,067 lb
Loader Breakout Force	LA301: 1,150 lbf; LA351: 1,335 lbf	2,245 lb
▶Warranty
Warranty Length & Coverage	Not Published	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota LX2610/LX3310 Brush Guard Insert $259.00

Find a Kubota dealer near you→

Kubota B2400 vs Kubota LX2610SU: Quick Answers

Which has more horsepower, the Kubota B2400 or the Kubota LX2610SU?

The Kubota LX2610SU leads on engine hp at 24.8 hp hp, compared to 24 hp hp for the Kubota B2400.

Which has more PTO horsepower, the Kubota B2400 or the Kubota LX2610SU?

The Kubota LX2610SU leads on pto hp at 19.5 hp hp, compared to 18 hp hp for the Kubota B2400.

Which is heavier, the Kubota B2400 or the Kubota LX2610SU?

The Kubota LX2610SU leads on weight at 1,830 lb lb, compared to 1,570 lb lb for the Kubota B2400.

Which has more loader lift capacity, the Kubota B2400 or the Kubota LX2610SU?

The Kubota LX2610SU leads on loader lift at 1,067 lb lb, compared to 770 lb lb for the Kubota B2400.

Which has more three-point hitch lift capacity, the Kubota B2400 or the Kubota LX2610SU?

The Kubota LX2610SU leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,015 lb lb for the Kubota B2400.
