Across 8 measurable specs, the Kubota B2401 leads 6 categories to 2. Machine pages: Kubota B2401 and Kubota BX25D .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Kubota B2401 Kubota BX25D Engine HP (hp) 21.9 hp ▲ 23 hpPTO HP (hp) ▲ 19.2 hp17.5 hp Weight (lb) 1,521 lb ▲ 1,587 lbLoader Lift (lb) ▲ 948 lb745 lb 3-Pt Lift (24 in) (lb) ▲ 1,290 lb670 lb Lift Height (in) ▲ 78.5 in71.3 in Breakout Force (lbf) ▲ 2,146 lbf992 lbf Hydraulic Flow (gpm) ▲ 7 gpm6.2 gpm Travel Speed (mph) 11.7 mph n/a
Overview Loader Work PTO Work

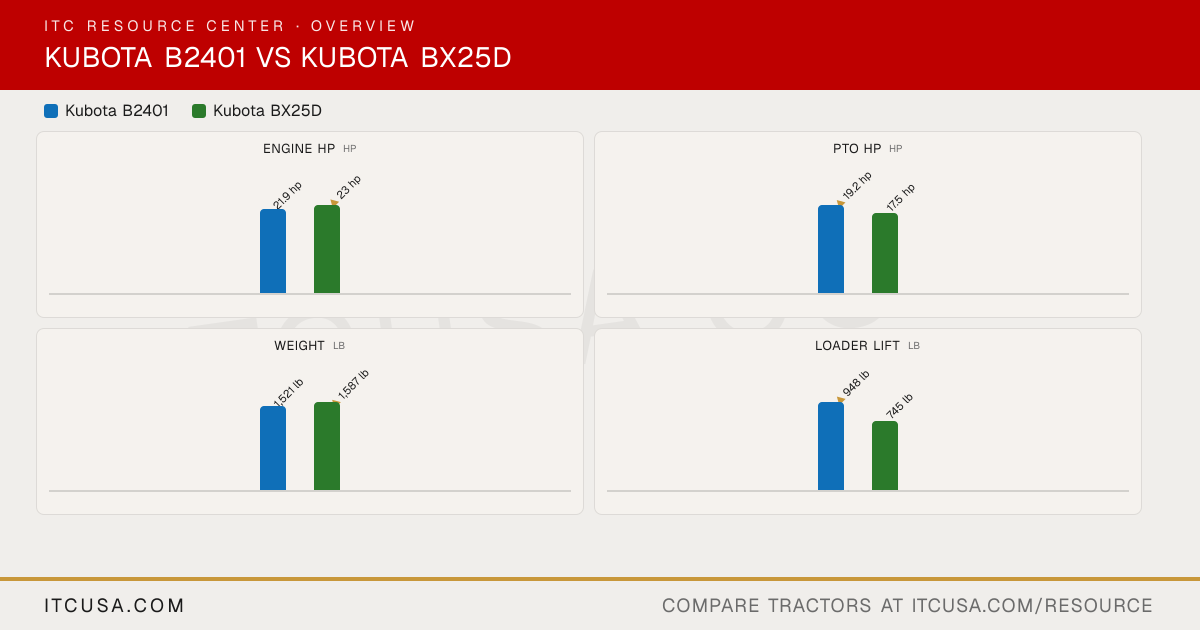

The headline numbers at a glance.
Kubota B2401 Kubota BX25D
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kubota B2401 Kubota BX25D
▶ EngineEngine Manufacturer Kubota Kubota Engine Model D1105 D902 Engine Type E-TVCS, liquid cooled, 3-cylinder diesel Diesel, 3-cylinder, liquid-cooled inline No. of Cylinders 3 3 Displacement 68.5 in³ 54.8 in³ Rated Engine Speed 2600 rpm 3200 rpm Engine Power (Gross) 21.9 hp 23 hp PTO Power 19.2 hp 17.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid Cooled Liquid-cooled Air Cleaner Dual paper element Not Published Fuel System Not Published Not Published Alternator 40 A Not Published ▶ HydraulicsPump Type Dual pump Not Published Implement Flow 4.4 gpm 6.2 gpm Steering Flow 2.6 gpm Not Published Total Hydraulic Flow 7.0 gpm Not Published Overall Hydraulic Pump Flow 7.0 gpm 6.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 Not Published No. of Optional Remote Valves 1 Not Published ▶ Fluid CapacityFuel Tank Capacity 6.1 gal 6.6 gal Coolant Capacity 4.0 qt 2.8 qt Crankcase Capacity 3.3 qt 3.3 qt Transmission / Hydraulic System Capacity 3.3 gal Not Published Front Axle Fluid Capacity 0.9 gal Not Published ▶ PTO & HitchPTO Type Transmission driven with one way clutch Independent (rear); independent (mid) PTO Rear 540, 1000 rpm 540 rpm Mid-PTO Availability 2500 rpm Mid-PTO, 2500 rpm Category, 3-Point Hitch Category I Category I (optional) Hitch Lift Capacity 1653 lb 992 lb Hitch Lift Capacity (at 24”) 1290 lb 670 lb Lift Control Type Position control valve Position control ▶ Transmission & DrivetrainTransmission Type Gear (9 Forward, 3 Reverse) Not Published No. of Speeds 9 Forward, 3 Reverse Not Published Max Travel Speed (Forward) 11.7 mph Not Published Max Travel Speed (Reverse) 6.0 mph Not Published Clutch Dry single plate Not Published Differential Lock & Limited Slip Options Standard Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post folding ROPS (canopy optional) Steering Integral type power steering Hydrostatic type power steering Brakes Multi-plate wet disc Wet disc Seat Suspension & Adjustability Fore and aft slide adjustment (position adjust lever) Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 660 lb 551 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 93.9 in (without 3-point hitch) 95.5 in (tractor alone) Overall Width 44.3 in 44.5 in Wheelbase 61.4 in 55.1 in Ground Clearance 12.0 in 8.7 in (front axle) Min. Turn Radius without Brakes 6.9 ft (with brake applied) Not Published Height to Top of ROPS 83.9 in 87.2 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1521 lb 1587 lb (tractor only) Weight with ROPS and Loader Not Published 2475 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear; R14: 23x8.50-12 front, 12-16.5 rear 18x8.5-10 front, 26x12-12 rear (Turf/Bar/Industrial) R1 Agricultural - Front 6-12 Not Published R1 Agricultural - Rear 9.5-16 Not Published R3 Turf - Front 23x8.50-12 Not Published R3 Turf - Rear 33x12.5-15 Not Published R4 Industrial - Front 23x8.50-12 18x8.5-10 R4 Industrial - Rear 12-16.5 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System LA435 Swift-Tach Loader; 1-lever Quick Coupler (standard); 2-Lever Quick Coupler (optional) LA240A quick attach loader Loader Model LA435 LA240A; LA240A AU-SG (spill guard) Loader Lift Height 78.5 in LA240A: 71.3 in (at pin) Loader Lift Capacity (Full Height) 948 lb LA240A: 745 lb (at pin) Loader Breakout Force 2,146 lbf LA240A: 992 lb (at 19.7 in) (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Kubota B2401 vs Kubota BX25D: Quick Answers
Which has more horsepower, the Kubota B2401 or the Kubota BX25D? The Kubota BX25D leads on engine hp at 23 hp hp, compared to 21.9 hp hp for the Kubota B2401.
Which has more PTO horsepower, the Kubota B2401 or the Kubota BX25D? The Kubota B2401 leads on pto hp at 19.2 hp hp, compared to 17.5 hp hp for the Kubota BX25D.
Which is heavier, the Kubota B2401 or the Kubota BX25D? The Kubota BX25D leads on weight at 1,587 lb lb, compared to 1,521 lb lb for the Kubota B2401.
Which has more loader lift capacity, the Kubota B2401 or the Kubota BX25D? The Kubota B2401 leads on loader lift at 948 lb lb, compared to 745 lb lb for the Kubota BX25D.
Which has more three-point hitch lift capacity, the Kubota B2401 or the Kubota BX25D? The Kubota B2401 leads on 3-pt lift (24 in) at 1,290 lb lb, compared to 670 lb lb for the Kubota BX25D. More Head-to-Heads
