Across 0 measurable specs, this matchup is a dead heat: 0 categories to the Kubota B2401, 0 to the Kubota L2502. Machine pages: Kubota B2401 and Kubota L2502 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

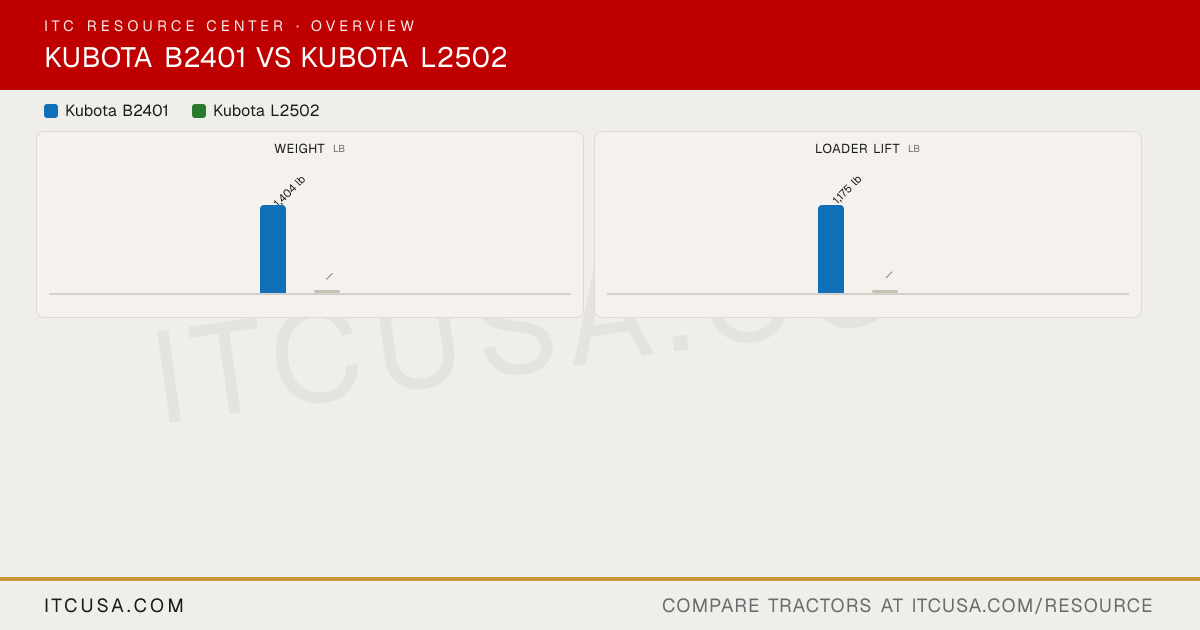

Category Verdict Spec Kubota B2401 Kubota L2502 Weight (lb) 1,404 lb — Loader Lift (lb) 1,175 lb — Lift Height (in) 78.5 in — Breakout Force (lbf) 2,146 lbf — Hydraulic Flow (gpm) 7 gpm —
Overview Loader Work PTO Work
The headline numbers at a glance.
Kubota B2401 Kubota L2502
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kubota B2401 Kubota L2502
▶ EnginePTO Power 19.2 (14.3) HP (kW) — Alternator 40 A — Air Cleaner Dual paper element — Engine Type E-TVCS, liquid cooled, 3-cylinder diesel — Fuel System Radial air flow — Displacement 68.5 (1123) cu. in. (cc) — No. of Cylinders 3 — Rated Engine Speed 2600 rpm — Cooling System Type Liquid Cooled — Engine Manufacturer Kubota — Engine Power (Gross) 21.9 (16.3) HP (kW) — Engine Emissions Constraints Tier 4 — ▶ WeightTractor Weight (Base) 1,404 lbs. — Weight with ROPS and Loader 1,521 lbs. — ▶ WarrantyWarranty Length & Coverage Full warranty: 2 years / 2,000 hours; Powertrain warranty: 6 years / 2,000 hours — ▶ HydraulicsPump Type Dual pump — Steering Flow 2.6 gpm 9.8 lpm — Implement Flow 4.0 gpm — Total Hydraulic Flow 7.0 (26.4) gpm (ℓ/min.) — Hydraulic System Type Open center — System Operating Pressure 2500 psi — Rear Remote Hydraulic Flow Front & Rear outlet — Overall Hydraulic Pump Flow 7.0 (26.4) gpm (ℓ/min.) — No. of Optional Remote Valves 1 — No. of Standard Remote Valves 0 — ▶ PTO & HitchPTO Rear 540, 1000 rpm — PTO Type Transmission driven with one way clutch — Lift Control Type Position control valve — Hitch Lift Capacity 1653 (750) lbs. (kg) — Mid-PTO Availability 2500 rpm — Category, 3-Point Hitch Category I — Hitch Lift Capacity (at 24”) 1808 (820) lbs. (kg); 1411 (640) lbs. (kg); 1290 (585) lbs. (kg) — ▶ Tire OptionsR3 Turf - Rear 33x12.5-15 — R3 Turf - Front 23x8.50-12 — R1 Agricultural - Rear 9.5-16 — R1 Agricultural - Front 6-12 — ▶ Fluid CapacityCoolant Capacity 4.0 (3.8) qts. (ℓ) — Crankcase Capacity 3.3 (3.1) qts. (ℓ) — Fuel Tank Capacity 6.1 gal. — Transmission / Hydraulic System Capacity 3.3 (12.5) gal (ℓ) — ▶ Loader & AttachmentsLoader Lift Height 78.5" — Loader Breakout Force 2,146 lbf. — Quick Attach Loader System LA435 Swift-Tach Loader; 1-lever Quick Coupler (standard); 2-Lever Quick Coupler (optional) — Loader Lift Capacity (Full Height) 1,175 lbs. — ▶ Transmission & DrivetrainClutch Dry single plate — No. of Speeds 9 Forward, 3 Reverse — Transmission Type Gear (9 Forward, 3 Reverse) — Max Travel Speed (Forward) 0-11.7 (0-18.8) mph (km/h) — Max Travel Speed (Reverse) 0-6.0 (0-9.6) mph (km/h) — Differential Lock & Limited Slip Options Standard — ▶ Chassis, Steering & ControlsBrakes Multi-plate wet disc — Steering Integral type power steering — Front Axle Type Cast-iron front axle — Drawbar Capacity 661.4 lb (660 lbs) — Seat Suspension & Adjustability High-back seat (absorbs shock); NOTE: Deluxe seat with armrests and seat suspension listed for HST models only - not explicitly confirmed for B2401 gear-drive (DT) in spec sheet — ▶ Dimensions & ManeuverabilityWheelbase 61.4 (1560) in. (mm) — Overall Width 44.3 (1125) in. (mm) — Overall Length 93.9 in / 93.9 in — Ground Clearance 12.0 (305) in. (mm) — Height to Top of ROPS 83.9 in. — Min. Turn Radius without Brakes 6.9 (2.1) feet (m) — Overall Length with 3-Point Hitch 93.9 in. —
