Kubota B2401 vs Massey Ferguson GC1710

Across 9 measurable specs, the Kubota B2401 leads 7 categories to 2. Machine pages: Kubota B2401 and Massey Ferguson GC1710.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

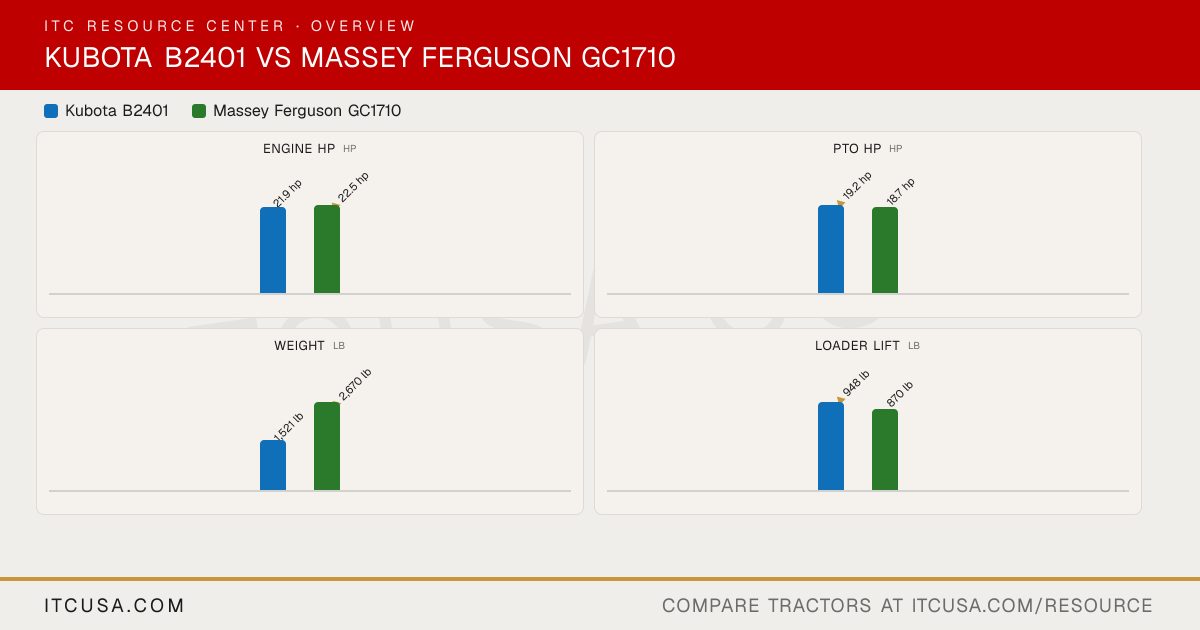

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2401	Massey FergusonGC1710

▶Engine
Engine Manufacturer	Kubota	Iseki
Engine Model	D1105	Not Published
Engine Type	E-TVCS, liquid cooled, 3-cylinder diesel	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	68.5 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	21.9 hp	22.5 hp
PTO Power	19.2 hp	18.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid Cooled	Liquid-cooled
Air Cleaner	Dual paper element	Not Published
Fuel System	Not Published	Not Published
Alternator	40 A	Not Published
▶Hydraulics
Pump Type	Dual pump	Not Published
Implement Flow	4.4 gpm	4.3 gpm
Steering Flow	2.6 gpm	2 gpm
Total Hydraulic Flow	7.0 gpm	6.3 gpm
Overall Hydraulic Pump Flow	7.0 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.1 gal	6.6 gal
Coolant Capacity	4.0 qt	Not Published
Crankcase Capacity	3.3 qt	Not Published
Transmission / Hydraulic System Capacity	3.3 gal	Not Published
Front Axle Fluid Capacity	0.9 gal	Not Published
▶PTO & Hitch
PTO Type	Transmission driven with one way clutch	Independent
PTO Rear	540, 1000 rpm	540 rpm
Mid-PTO Availability	2500 rpm	Independent, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1653 lb	1,190 lb
Hitch Lift Capacity (at 24”)	1290 lb	Not Published
Lift Control Type	Position control valve	Rate of drop control (standard)
▶Transmission & Drivetrain
Transmission Type	Gear (9 Forward, 3 Reverse)	2-range hydrostatic with side-by-side foot pedals and cruise control
No. of Speeds	9 Forward, 3 Reverse	Infinite forward and reverse (2-range hydrostatic)
Max Travel Speed (Forward)	11.7 mph	9.1 mph (with R1 tires)
Max Travel Speed (Reverse)	6.0 mph	Not Published
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Standard	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Power steering
Brakes	Multi-plate wet disc	Wet disc
Seat Suspension & Adjustability	Fore and aft slide adjustment (position adjust lever)	Coil spring seat, reversible; retractable seat belt
Front Axle Type	Not Published	4WD front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	660 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	93.9 in (without 3-point hitch)	177 in (without 3-point hitch)
Overall Width	44.3 in	53.94 in
Wheelbase	61.4 in	57.1 in
Ground Clearance	12.0 in	6.7 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	Not Published
Height to Top of ROPS	83.9 in	86 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1521 lb	Not Published
Weight with ROPS and Loader	Not Published	2,670 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear; R14: 23x8.50-12 front, 12-16.5 rear	Ag, turf or industrial: front 18x8.50-10, rear 26x12.00-12
R1 Agricultural - Front	6-12	18x8.50-10
R1 Agricultural - Rear	9.5-16	26x12.00-12
R3 Turf - Front	23x8.50-12	18x8.50-10
R3 Turf - Rear	33x12.5-15	26x12.00-12
R4 Industrial - Front	23x8.50-12	18x8.50-10
R4 Industrial - Rear	12-16.5	26x12.00-12
▶Loader & Attachments
Quick Attach Loader System	LA435 Swift-Tach Loader; 1-lever Quick Coupler (standard); 2-Lever Quick Coupler (optional)	DL95: pin-on (factory or dealer installation)
Loader Model	LA435	DL95
Loader Lift Height	78.5 in	DL95: 72.8 in
Loader Lift Capacity (Full Height)	948 lb	DL95: 870 lb
Loader Breakout Force	2,146 lbf	DL95: 920 lb
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00	None tagged yet

Find a Kubota dealer near you→Find a dealer near you→

Kubota B2401 vs Massey Ferguson GC1710: Quick Answers

Which has more horsepower, the Kubota B2401 or the Massey Ferguson GC1710?

The Massey Ferguson GC1710 leads on engine hp at 22.5 hp hp, compared to 21.9 hp hp for the Kubota B2401.

Which has more PTO horsepower, the Kubota B2401 or the Massey Ferguson GC1710?

The Kubota B2401 leads on pto hp at 19.2 hp hp, compared to 18.7 hp hp for the Massey Ferguson GC1710.

Which is heavier, the Kubota B2401 or the Massey Ferguson GC1710?

The Massey Ferguson GC1710 leads on weight at 2,670 lb lb, compared to 1,521 lb lb for the Kubota B2401.

Which has more loader lift capacity, the Kubota B2401 or the Massey Ferguson GC1710?

The Kubota B2401 leads on loader lift at 948 lb lb, compared to 870 lb lb for the Massey Ferguson GC1710.

Which has more three-point hitch lift capacity, the Kubota B2401 or the Massey Ferguson GC1710?

The Kubota B2401 leads on 3-pt lift (24 in) at 1,290 lb lb, compared to 1,190 lb lb for the Massey Ferguson GC1710.
