Kubota B2401DTN vs Kubota BX2380

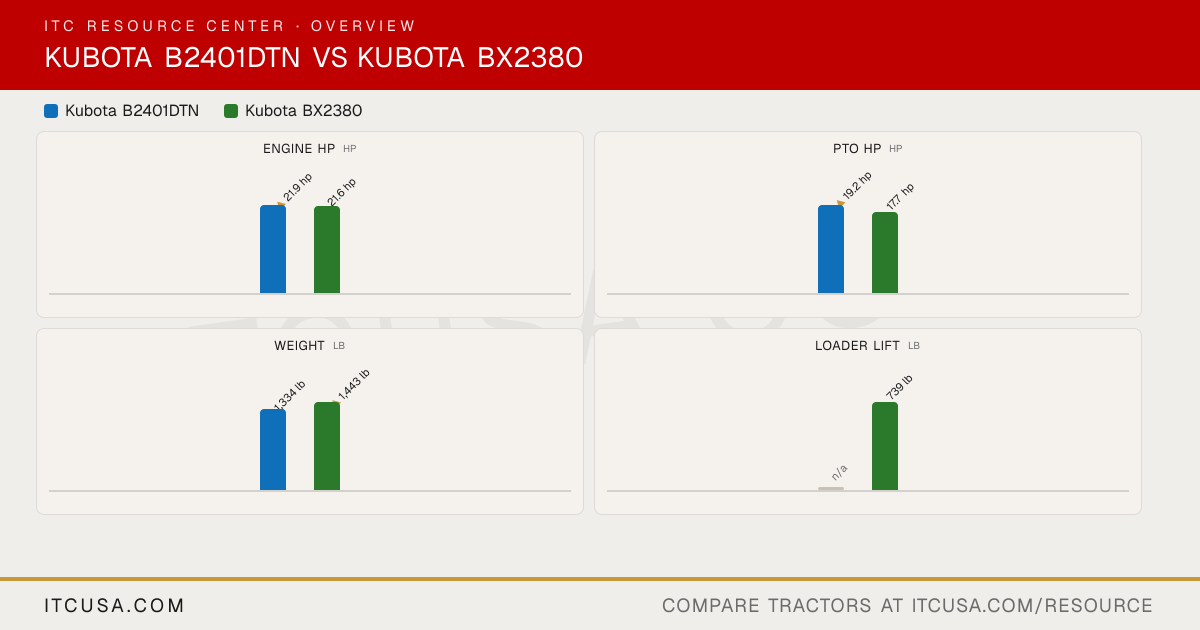

Across 6 measurable specs, the Kubota B2401DTN leads 5 categories to 1. Machine pages: Kubota B2401DTN and Kubota BX2380.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2401DTN	KubotaBX2380

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1105	D902
Engine Type	E-TVCS, liquid cooled, 3-cylinder diesel	Liquid cooled, 4-cycle, diesel
No. of Cylinders	3	3
Displacement	68.5 in³	54.8 in³
Rated Engine Speed	2600 rpm	3200 rpm
Engine Power (Gross)	21.9 hp	21.6 hp
PTO Power	19.2 hp	17.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid Cooled	Water with pressurized radiator, reverse air-flow design
Air Cleaner	Dual paper element	Dry element
Fuel System	Not Published	Direct injection
Alternator	40 A	40 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Open center tandem pump gear type
Implement Flow	4.4 gpm	5.2 gpm
Steering Flow	2.6 gpm	1.0 gpm
Total Hydraulic Flow	7.0 gpm	6.2 gpm
Overall Hydraulic Pump Flow	7.0 gpm	6.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0 standard (2-valve rear remote coupler optional)
No. of Optional Remote Valves	1	2 (optional; ISO 7241-1 series A or B)
▶Fluid Capacity
Fuel Tank Capacity	6.1 gal	6.6 gal
Coolant Capacity	4.0 qt	3.3 qt
Crankcase Capacity	3.3 qt	3.5 qt
Transmission / Hydraulic System Capacity	3.3 gal	3.0 gal
Front Axle Fluid Capacity	0.8 gal	3.8 qt
▶PTO & Hitch
PTO Type	Transmission driven with one way clutch	Live independent PTO (with hydraulic clutch)
PTO Rear	540, 980 rpm	STD (540 rpm)
Mid-PTO Availability	Not Published	STD (2500 rpm)
Category, 3-Point Hitch	Category I	SAE Category I Optional
Hitch Lift Capacity	1653 lb	1,213 lb
Hitch Lift Capacity (at 24”)	1290 lb	680 lb
Lift Control Type	Position control valve	Quarter-inching valve
▶Transmission & Drivetrain
Transmission Type	Gear (9 Forward, 3 Reverse)	Hydrostatic transmission
No. of Speeds	9 Forward, 3 Reverse	2 Range (Low-High)
Max Travel Speed (Forward)	10.9 mph	8.4 mph
Max Travel Speed (Reverse)	5.6 mph	6.5 mph
Clutch	Dry single plate	Dry type single plate - Main clutch 9.45 in.
Differential Lock & Limited Slip Options	Standard	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Two-post foldable ROPS
Steering	Integral type power steering	Integral power steering
Brakes	Multi-plate wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Fore and aft slide adjustment (position adjust lever)	High-back deluxe seat with armrests; fore/aft slide and backrest tilt adjustment
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	660 lb	Max. drawbar load @ hitch: 550 lb.
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	92.9 in (without 3-point hitch)	95.5 in
Overall Width	35.4 in	45.1 in
Wheelbase	61.4 in	55.1 in
Ground Clearance	11.8 in	6.5 in (minimum; 8.4 in at front axle)
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	7.5 ft
Height to Top of ROPS	75.2 in	83.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1334 lb	1443 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Farm (R1): 5-12 front, 8-16 rear	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	5-12	18X8.5-10
R1 Agricultural - Rear	8-16	26X12-12
R3 Turf - Front	Not Published	18X8.5-10
R3 Turf - Rear	Not Published	26X12-12
R4 Industrial - Front	Not Published	18X8.5-10
R4 Industrial - Rear	Not Published	26X12-12
▶Loader & Attachments
Quick Attach Loader System	Not Published	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Model	Not Published	LA344S (standard, quick attach); LA344 (pin-on option)
Loader Lift Height	Not Published	71.0 in
Loader Lift Capacity (Full Height)	Not Published	739 lb (LA344 pin-on); 613 lb (LA344S quick attach)
Loader Breakout Force	Not Published	1,407 lbf (LA344 pin-on); 1,286 lbf (LA344S quick attach)
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00	Kubota BX80 Series Brush Guard Insert (S/N C1630 and up) $259.00 S/N C1630 and after Kubota BX80 Series Brush Guard Insert (S/N before C1630) $299.00 S/N before C1630

Find a Kubota dealer near you→

Kubota B2401DTN vs Kubota BX2380: Quick Answers

Which has more horsepower, the Kubota B2401DTN or the Kubota BX2380?

The Kubota B2401DTN leads on engine hp at 21.9 hp hp, compared to 21.6 hp hp for the Kubota BX2380.

Which has more PTO horsepower, the Kubota B2401DTN or the Kubota BX2380?

The Kubota B2401DTN leads on pto hp at 19.2 hp hp, compared to 17.7 hp hp for the Kubota BX2380.

Which is heavier, the Kubota B2401DTN or the Kubota BX2380?

The Kubota BX2380 leads on weight at 1,443 lb lb, compared to 1,334 lb lb for the Kubota B2401DTN.

Which has more three-point hitch lift capacity, the Kubota B2401DTN or the Kubota BX2380?

The Kubota B2401DTN leads on 3-pt lift (24 in) at 1,290 lb lb, compared to 680 lb lb for the Kubota BX2380.
