Bad Boy Tractors 4025 vs Kubota B2401DTN

Across 5 measurable specs, the Bad Boy Tractors 4025 leads 4 categories to 1. Machine pages: Bad Boy Tractors 4025 and Kubota B2401DTN.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	KubotaB2401DTN

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1700N6-BUTR_3	D1105
Engine Type	Vertical, 4-stroke, water-cooled diesel	E-TVCS, liquid cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	104.7 in³	68.5 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	24.5 hp	21.9 hp
PTO Power	19.1 hp	19.2 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid Cooled
Air Cleaner	Dry	Dual paper element
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Dual pump
Implement Flow	7.5 gpm	4.4 gpm
Steering Flow	4 gpm	2.6 gpm
Total Hydraulic Flow	11.5 gpm	7.0 gpm
Overall Hydraulic Pump Flow	11.5 gpm	7.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	2	1
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	6.1 gal
Coolant Capacity	1.32 gal	4.0 qt
Crankcase Capacity	1.14 gal	3.3 qt
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	3.3 gal
Front Axle Fluid Capacity	Not Published	0.8 gal
▶PTO & Hitch
PTO Type	Independent	Transmission driven with one way clutch
PTO Rear	533 rpm	540, 980 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	1653 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1290 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Gear (9 Forward, 3 Reverse)
No. of Speeds	3 range (A/B/C)	9 Forward, 3 Reverse
Max Travel Speed (Forward)	Not Published	10.9 mph
Max Travel Speed (Reverse)	Not Published	5.6 mph
Clutch	None (HST)	Dry single plate
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Standard
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Integral type power steering
Brakes	Wet multi-disc	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	Fore and aft slide adjustment (position adjust lever)
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	660 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	92.9 in (without 3-point hitch)
Overall Width	56.7 in	35.4 in
Wheelbase	65.7 in	61.4 in
Ground Clearance	15 in	11.8 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	96.85 in	75.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	1334 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	Farm (R1): 5-12 front, 8-16 rear
R1 Agricultural - Front	8.0-16	5-12
R1 Agricultural - Rear	12.4-24	8-16
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	15-19.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	Not Published
Loader Lift Height	104 in	Not Published
Loader Lift Capacity (Full Height)	2,200 lb	Not Published
Loader Breakout Force	3,660 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 4025 vs Kubota B2401DTN: Quick Answers

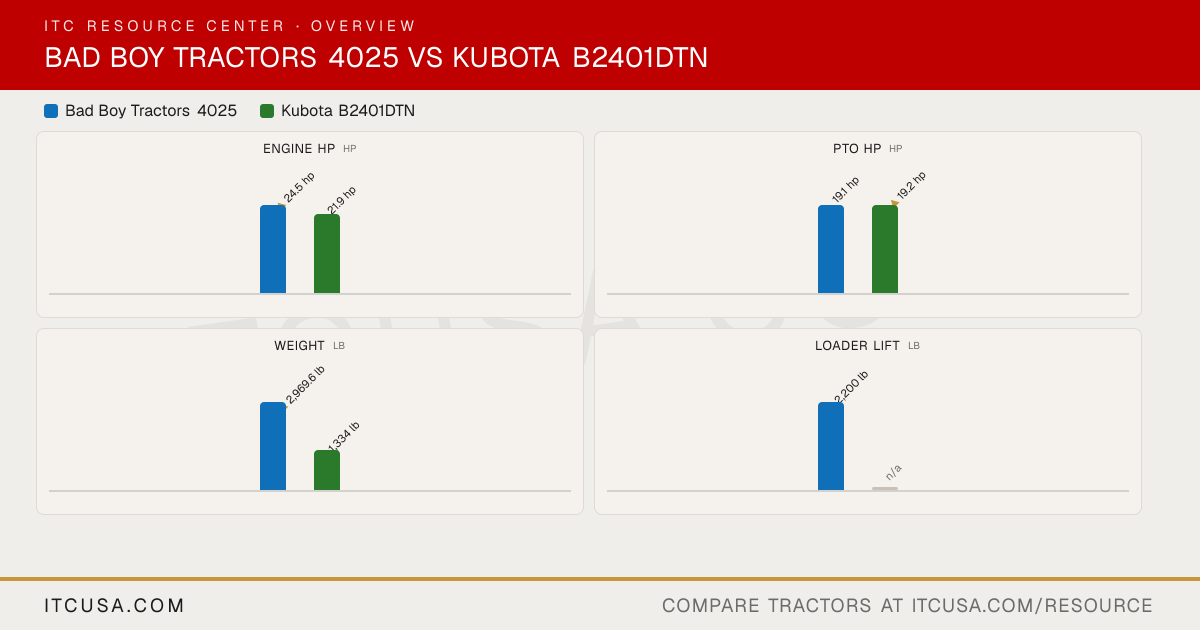

Which has more horsepower, the Bad Boy Tractors 4025 or the Kubota B2401DTN?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 21.9 hp hp for the Kubota B2401DTN.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Kubota B2401DTN?

The Kubota B2401DTN leads on pto hp at 19.2 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the Kubota B2401DTN?

The Bad Boy Tractors 4025 leads on weight at 2,969.6 lb lb, compared to 1,334 lb lb for the Kubota B2401DTN.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Kubota B2401DTN?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,290 lb lb for the Kubota B2401DTN.
