Kubota B2920 vs TYM 3015

Across 9 measurable specs, the TYM 3015 leads 9 categories to 0. Machine pages: Kubota B2920 and TYM 3015.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2920	TYM3015

▶Engine
Engine Manufacturer	Kubota	TYM
Engine Model	D1305-E3-D22	T1700N3
Engine Type	E-TVCS, liquid-cooled, 3-cylinder diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.0 in³	104.5 in³
Rated Engine Speed	2800 rpm	2600 rpm
Engine Power (Gross)	29 hp	30 hp
PTO Power	21 hp	25 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled, pressurized radiator	Not Published
Air Cleaner	Not Published	Dry element
Fuel System	Indirect injection (E-TVCS)	IDI (indirect injection)
Alternator	14.5 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Dual pump (3-point + power steering)	Dual gear pump
Implement Flow	4.7 gpm	7.7 gpm
Steering Flow	3.6 gpm	4.2 gpm
Total Hydraulic Flow	8.3 gpm (4.7 + 3.6, computed)	11.9 gpm
Overall Hydraulic Pump Flow	Not Published	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 or 2	Loader: 2 / Rear: 0
No. of Optional Remote Valves	Not Published	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	6.9 gal (6.9 U.S. gal, all models)	7.1 gal
Coolant Capacity	4.1 qt	5.3 qt
Crankcase Capacity	3.7 qt	4.5 qt
Transmission / Hydraulic System Capacity	4.0 gal	3015R: 9 gal; 3015H: 9.8 gal
Front Axle Fluid Capacity	Not Published	6.8 qt
▶PTO & Hitch
PTO Type	Live	Independent
PTO Rear	540/960 rpm	540 rpm
Mid-PTO Availability	Optional mid-PTO, 2500 rpm (USA No. 5, Kubota 10-tooth)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1356 lb	3,306 lb
Hitch Lift Capacity (at 24”)	1058 lb	2,425 lb
Lift Control Type	Position control valve, quarter inching valve	Position control
▶Transmission & Drivetrain
Transmission Type	Main-hydrostatic transmission, 3-range	3015R: Synchromesh; 3015H: HST
No. of Speeds	3-range (3 forward, 3 reverse)	3015R: F12 x R12; 3015H: 3-Range
Max Travel Speed (Forward)	12.6 mph	3015R: 14.4 mph; 3015H: 18.8 mph
Max Travel Speed (Reverse)	10.0 mph	3015R: 14.3 mph; 3015H: 18.7 mph
Clutch	Not Published	3015R: Dry single plate; 3015H: None (HST)
Differential Lock & Limited Slip Options	Rear differential lock standard	Differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS (sunshade optional)	Not Published
Steering	Integral type power steering	Hydrostatic power steering
Brakes	Wet disk type	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	95.1 in (w/o 3P) (without 3-point hitch)	120.9 in
Overall Width	49.0 in	56.3 in
Wheelbase	61.5 in	65.7 in
Ground Clearance	12.8 in	14.4 in
Min. Turn Radius without Brakes	6.9 ft (w/brake) (with brake applied)	L: 124.8 in; R: 121.3 in
Height to Top of ROPS	85.0 in	97.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1554 lb	3015R: 3,183 lb; 3015H: 3,163 lb
Weight with ROPS and Loader	Not Published	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard farm 7-12 front, 11.2-16 rear	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24; optional R1 8.0-16 / 12.4-24 and R4 25x8.50-14 / 15x19.5
R1 Agricultural - Front	7-12	8-16
R1 Agricultural - Rear	11.2-16	12.4-24
R3 Turf - Front	Not Published	27x8.5-15, 6PR
R3 Turf - Rear	Not Published	41x14.00, 4PR
R4 Industrial - Front	23x8.50-12	10-16.5, 6PR
R4 Industrial - Rear	12-16.5	420/70-24, 6PR
▶Loader & Attachments
Quick Attach Loader System	Not Published	BL150: Quick attach assembly (lever-lock)
Loader Model	LA364	BL150
Loader Lift Height	LA364: 78.6 in	BL150: 104.9 in
Loader Lift Capacity (Full Height)	LA364: 952 lb	BL150: 2,200 lb
Loader Breakout Force	LA364: 2144 lbf	BL150: 3,422 lb
▶Warranty
Warranty Length & Coverage	Not Published	24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00

Find a Kubota dealer near you→Find a TYM dealer near you→

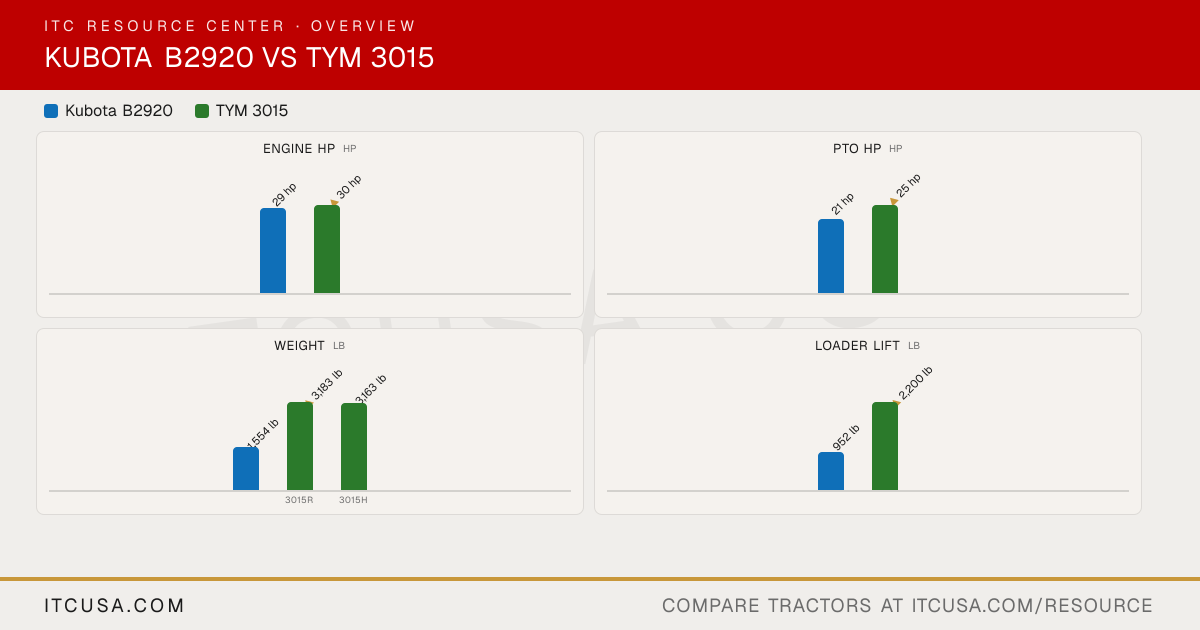

Kubota B2920 vs TYM 3015: Quick Answers

Which has more horsepower, the Kubota B2920 or the TYM 3015?

The TYM 3015 leads on engine hp at 30 hp hp, compared to 29 hp hp for the Kubota B2920.

Which has more PTO horsepower, the Kubota B2920 or the TYM 3015?

The TYM 3015 leads on pto hp at 25 hp hp, compared to 21 hp hp for the Kubota B2920.

Which is heavier, the Kubota B2920 or the TYM 3015?

The TYM 3015 leads on weight at 3,183 lb lb, compared to 1,554 lb lb for the Kubota B2920.

Which has more loader lift capacity, the Kubota B2920 or the TYM 3015?

The TYM 3015 leads on loader lift at 2,200 lb lb, compared to 952 lb lb for the Kubota B2920.

Which has more three-point hitch lift capacity, the Kubota B2920 or the TYM 3015?

The TYM 3015 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,058 lb lb for the Kubota B2920.
