Across 8 measurable specs, the Kubota LX3310 leads 6 categories to 2. Machine pages: Kubota B3300SU and Kubota LX3310 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Kubota B3300SU Kubota LX3310 Engine HP (hp) ▲ 33 hp30.8 hp PTO HP (hp) 25 hp ▲ 27 hpWeight (lb) 1,764 lb ▲ 2,072 lbLoader Lift (lb) 1,065 lb ▲ 1,067 lb3-Pt Lift (24 in) (lb) 1,400 lb ▲ 1,676 lbLift Height (in) 82.6 in ▲ 84 inBreakout Force (lbf) n/a 2,245 lbf Hydraulic Flow (gpm) ▲ 9.9 gpm8.7 gpm Travel Speed (mph) 11.9 mph ▲ 13.6 mph

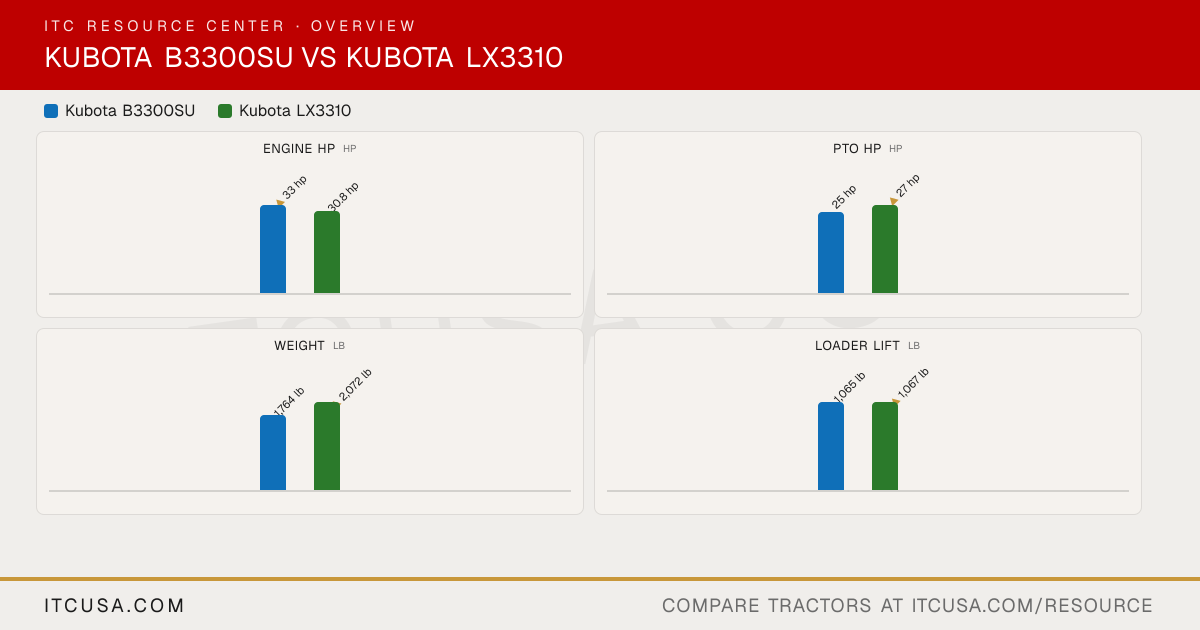

Overview Loader Work PTO Work
The headline numbers at a glance.
Kubota B3300SU Kubota LX3310
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kubota B3300SU Kubota LX3310
▶ EngineEngine Manufacturer Kubota Kubota Engine Model V1505-E3-D24H V1505-CR-TE5-D36R1 Engine Type Indirect injection, vertical, water-cooled, 4-cycle diesel E-CDIS, liquid cooled, 4-cylinder, diesel No. of Cylinders 4 4 Displacement 91.5 in³ 91.5 in³ Rated Engine Speed 2700 rpm 2500 rpm Engine Power (Gross) 33 hp 30.8 hp PTO Power 25 hp 27 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled Pressurized radiator Air Cleaner Dual paper element 6.0 in Dual paper element Fuel System Indirect injection Common Rail System (CRS) Alternator 14.5 A, 12 V 60 A, 12 V ▶ HydraulicsPump Type Not Published Dual pump Implement Flow 6.7 gpm 5.0 gpm Steering Flow 3.2 gpm 3.7 gpm Total Hydraulic Flow 9.9 gpm 8.7 gpm Overall Hydraulic Pump Flow 9.9 gpm 8.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 0 No. of Optional Remote Valves 1 (optional rear valve) Optional, up to 2 ▶ Fluid CapacityFuel Tank Capacity 8.1 gal 7.1 gal Coolant Capacity 4.7 qt 4.5 qt Crankcase Capacity 5.7 qt 5.0 qt Transmission / Hydraulic System Capacity 3.83 gal 4.0 gal Front Axle Fluid Capacity Not Published 5.0 qt ▶ PTO & HitchPTO Type Live Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability None (no mid-PTO) 2500 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1786 lb 2139 lb Hitch Lift Capacity (at 24”) 1400 lb 1676 lb Lift Control Type Quarter inching valve Position control valve ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission, 3-range Hydrostatic transmission No. of Speeds 3-range 3 ranges Max Travel Speed (Forward) 11.9 mph 13.6 mph Max Travel Speed (Reverse) 9.5 mph 10.3 mph Clutch Dry single plate Not Published Differential Lock & Limited Slip Options Rear differential lock standard Differential lock standard ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS (sunshade optional) Not Published Steering Integral type power steering Hydraulic power steering Brakes Wet disc type Multi-plate wet disc Seat Suspension & Adjustability Not Published Deluxe high-back suspension seat Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 1100 lb 1100 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 99.2 in (w/o 3P) (without 3-point hitch) 101.8 in (without 3-point hitch) Overall Width 53.7 in 53.7 in Wheelbase 66.8 in 65.6 in Ground Clearance 14.6 in 14.6 in Min. Turn Radius without Brakes 7.9 ft (w/brake) (with brake applied) 6.9 ft (with brake applied) Height to Top of ROPS 88.4 in 88.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 84.6 in ▶ WeightTractor Weight (Base) 1764 lb (farm tires); 1786 lb (industrial tires) 2072 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural, R4 Industrial, R14 R1 Agricultural - Front 7-12 7.0-12 R1 Agricultural - Rear 12.4-16 12.4-16 R3 Turf - Front Not Published 24x8.50-14 R3 Turf - Rear 13.6-16 13.6-16 R4 Industrial - Front Not Published 23X8.50-14 / 25X8.50-14 R4 Industrial - Rear Not Published 12.4-16 / 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT)) Loader Model LA504 LA535 Loader Lift Height LA504: 82.6 in 84 in Loader Lift Capacity (Full Height) LA504: 1065 lb 1067 lb Loader Breakout Force Not Published 2245 lb ▶ WarrantyWarranty Length & Coverage Not Published Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Kubota B3300SU vs Kubota LX3310: Quick Answers
Which has more horsepower, the Kubota B3300SU or the Kubota LX3310? The Kubota B3300SU leads on engine hp at 33 hp hp, compared to 30.8 hp hp for the Kubota LX3310.
Which has more PTO horsepower, the Kubota B3300SU or the Kubota LX3310? The Kubota LX3310 leads on pto hp at 27 hp hp, compared to 25 hp hp for the Kubota B3300SU.
Which is heavier, the Kubota B3300SU or the Kubota LX3310? The Kubota LX3310 leads on weight at 2,072 lb lb, compared to 1,764 lb lb for the Kubota B3300SU.
Which has more loader lift capacity, the Kubota B3300SU or the Kubota LX3310? The Kubota LX3310 leads on loader lift at 1,067 lb lb, compared to 1,065 lb lb for the Kubota B3300SU.
Which has more three-point hitch lift capacity, the Kubota B3300SU or the Kubota LX3310? The Kubota LX3310 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,400 lb lb for the Kubota B3300SU. More Head-to-Heads
