Kubota B3350SU vs Kubota L3560

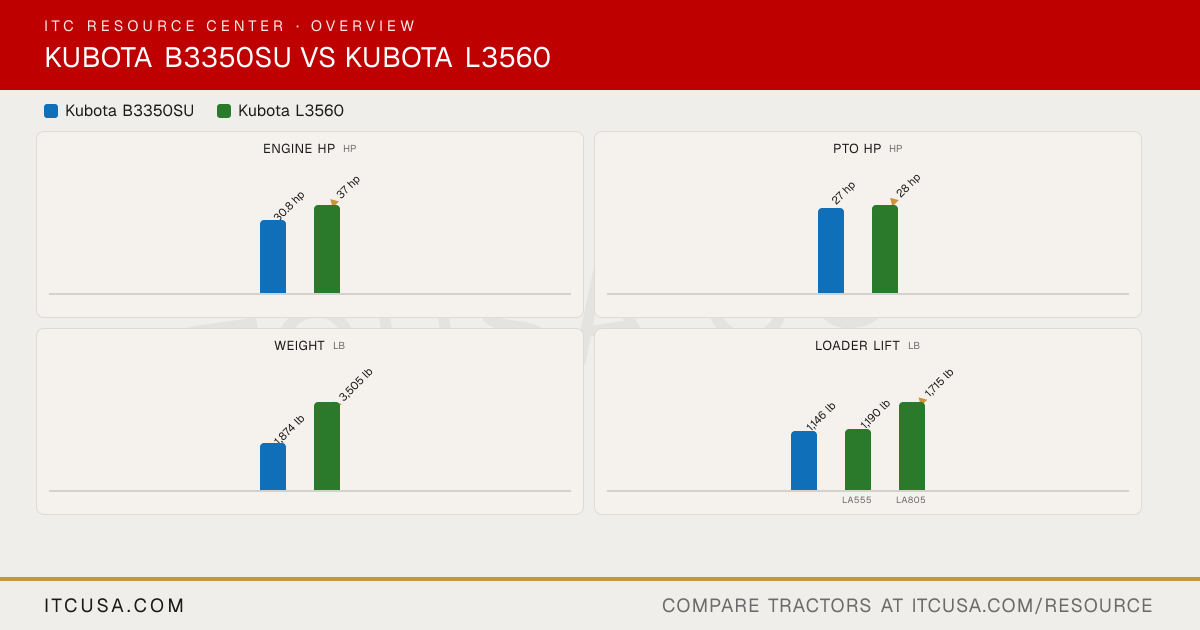

Across 9 measurable specs, the Kubota L3560 leads 9 categories to 0. Machine pages: Kubota B3350SU and Kubota L3560.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB3350SU	KubotaL3560

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V1505-T-E4-D26-R	D1803-CR-E4-GL2
Engine Type	E-TVCS, liquid cooled, 4-cylinder diesel	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
No. of Cylinders	4	3
Displacement	91.5 in³	111.4 in³
Rated Engine Speed	2500 rpm	2600 rpm
Engine Power (Gross)	30.8 hp	37 hp
PTO Power	27 hp	28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Pressurized radiator	Liquid-cooled
Air Cleaner	4.5 in dual paper element	Dry paper, dual element
Fuel System	Indirect injection	Electronic CRS (Common Rail System)
Alternator	60 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Tandem pump - gear type
Implement Flow	5 gpm	8.1 gpm
Steering Flow	3.7 gpm	4.7 gpm
Total Hydraulic Flow	8.7 gpm	12.8 gpm
Overall Hydraulic Pump Flow	8.7 gpm	12.8 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	5.0 gpm	Not Published
No. of Standard Remote Valves	1	None standard (up to 3 optional)
No. of Optional Remote Valves	Not Published	Optional, up to 3 (double-acting valve or float detent valve options, any position)
▶Fluid Capacity
Fuel Tank Capacity	7.3 gal	13.5 gal
Coolant Capacity	4.5 qt	7.9 qt
Crankcase Capacity	5.1 qt	7.1 qt
Transmission / Hydraulic System Capacity	4.0 gal	11.1 gal
Front Axle Fluid Capacity	5.0 qt	6.9 qt
▶PTO & Hitch
PTO Type	Independent	Live independent (hydraulic clutch)
PTO Rear	540 rpm	540 rpm @ 2476 engine rpm
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category I	SAE Category 1
Hitch Lift Capacity	2139 lb	3,750 lb
Hitch Lift Capacity (at 24”)	1676 lb	2646 lb
Lift Control Type	Quarter inching valve	Position control
▶Transmission & Drivetrain
Transmission Type	HST (3 ranges)	Hydrostatic
No. of Speeds	3 ranges (HST)	3-Range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	14.3 mph	16.5 mph
Max Travel Speed (Reverse)	11.4 mph	14.9 mph
Clutch	N/A (hydrostatic transmission)	Not Published
Differential Lock & Limited Slip Options	Differential lock standard	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS	Not Published
Steering	Hydraulic power steering	Hydrostatic power steering
Brakes	Multi-plate wet disc	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Coil spring suspension seat	Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Front Axle Type	4WD, selectable (front wheel drive lever)	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Max. drawbar load: 1100 lb	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	101.2 in (without 3-point hitch)	115.0 in (without 3-point hitch)
Overall Width	53.7 in	59.8 in
Wheelbase	65.6 in	71.1 in
Ground Clearance	14.6 in	13.5 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	8.9 ft (with brake applied)
Height to Top of ROPS	88.4 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1874 lb	3505 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-12	7.0-16
R1 Agricultural - Rear	12.4-16	12.4-24
R3 Turf - Front	24x8.50-14	27x10.50-15
R3 Turf - Rear	13.6-16	41x18LL-16.1
R4 Industrial - Front	23x8.50-14 or 25x8.50-14	10-16.5
R4 Industrial - Rear	12.4-16 or 15-19.5	420/70-24
▶Loader & Attachments
Quick Attach Loader System	LA534A loader; 2-lever quick coupler optional	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model	LA534A	LA555 or LA805
Loader Lift Height	84.6 in	LA555: 96.4 in; LA805: 104.7 in
Loader Lift Capacity (Full Height)	1146 lb	LA555: 1190 lb; LA805: 1715 lb
Loader Breakout Force	2321 lbf	LA555: 2030 lb; LA805: 2549 lb (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota B2650/B3350 Brush Guard Insert $259.00	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a Kubota dealer near you→

Kubota B3350SU vs Kubota L3560: Quick Answers

Which has more horsepower, the Kubota B3350SU or the Kubota L3560?

The Kubota L3560 leads on engine hp at 37 hp hp, compared to 30.8 hp hp for the Kubota B3350SU.

Which has more PTO horsepower, the Kubota B3350SU or the Kubota L3560?

The Kubota L3560 leads on pto hp at 28 hp hp, compared to 27 hp hp for the Kubota B3350SU.

Which is heavier, the Kubota B3350SU or the Kubota L3560?

The Kubota L3560 leads on weight at 3,505 lb lb, compared to 1,874 lb lb for the Kubota B3350SU.

Which has more loader lift capacity, the Kubota B3350SU or the Kubota L3560?

The Kubota L3560 leads on loader lift at 1,715 lb lb, compared to 1,146 lb lb for the Kubota B3350SU.

Which has more three-point hitch lift capacity, the Kubota B3350SU or the Kubota L3560?

The Kubota L3560 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,676 lb lb for the Kubota B3350SU.
