Kubota B7500 vs Kubota BX23S

Across 8 measurable specs, the Kubota BX23S leads 5 categories to 3. Machine pages: Kubota B7500 and Kubota BX23S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB7500	KubotaBX23S

▶Engine
Engine Manufacturer	Kubota	KUBOTA
Engine Model	D1005-E-D16	D902
Engine Type	Diesel, 3-cylinder, liquid-cooled	Liquid-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	61.1 in³	54.8 in³
Rated Engine Speed	2600 rpm	3200 rpm
Engine Power (Gross)	21 hp	21.6 hp
PTO Power	Gear: 17 hp; Hydro: 16 hp	17.7 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dual paper element	Dry element
Fuel System	Not Published	Direct injection
Alternator	Not Published	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Open center tandem pump gear type
Implement Flow	Not Published	5.2 gpm
Steering Flow	Not Published	1.0 gpm
Total Hydraulic Flow	7 gpm	6.2 gpm
Overall Hydraulic Pump Flow	Not Published	6.2 gpm
Hydraulic System Type	Open center	Open center tandem pump gear type
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0 standard (2-valve rear remote coupler optional)
No. of Optional Remote Valves	Not Published	2 (optional; ISO 7241-1 series A or B)
▶Fluid Capacity
Fuel Tank Capacity	5 gal	6.6 gal
Coolant Capacity	4 qt	0.8 gal (3.3 U.S.qts.)
Crankcase Capacity	3.2 qt	0.9 gal (3.4 U.S.qts.)
Transmission / Hydraulic System Capacity	Not Published	2.98 U.S. gals.
Front Axle Fluid Capacity	3.4 qt	3.8 qt
▶PTO & Hitch
PTO Type	Gear: transmission-driven; Hydro: independent	Live independent PTO (with hydraulic clutch)
PTO Rear	540 rpm	STD 540 rpm
Mid-PTO Availability	Mid-PTO, 2500 rpm	USA No.5 (KUBOTA 10-tooth) involute spline, 2500 rpm
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	1356 lb	1,213 lb.
Hitch Lift Capacity (at 24”)	1058 lb	680 lb
Lift Control Type	Directional control	Quarter-inching valve
▶Transmission & Drivetrain
Transmission Type	6-speed gear; hydrostatic	Hydrostatic transmission, High-Low gear shift (2 forward, 2 reverse)
No. of Speeds	Gear: 6 forward, 2 reverse; Hydro: infinite (2-range)	2 Range (Low-High)
Max Travel Speed (Forward)	Not Published	0 mph to 8.4 mph
Max Travel Speed (Reverse)	Not Published	0 mph to 6.5 mph
Clutch	Dry disc (gear)	Dry type single plate - Main clutch 9.45"
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	Two-post ROPS	Two-post foldable ROPS
Steering	Power steering	Hydrostatic Power Steering
Brakes	Wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Not Published	High-back reversible seat (rotates for backhoe operation); fore/aft slide and backrest tilt adjustment
Front Axle Type	Spur gear final drives	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Maximum tongue weight 550 lb.
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	90.4 in	99.0 in. w/3-Pt., w/ Front guard
Overall Width	42.4 in	45.1 in
Wheelbase	59 in	55.1 in
Ground Clearance	12 in	5.8 in (minimum; 8.4 in at front axle)
Min. Turn Radius without Brakes	Not Published	7.5 feet
Height to Top of ROPS	76.4 in	86.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	Gear: 1323 lb; Hydro: 1367 lb	1600 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard farm 6-12 front, 9.5-16 rear	Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A
R1 Agricultural - Front	6-12	Not Published
R1 Agricultural - Rear	9.5-16	Not Published
R3 Turf - Front	Not Published	18×8.5-10
R3 Turf - Rear	Not Published	26×12-12
R4 Industrial - Front	Not Published	18×8.5-10
R4 Industrial - Rear	Not Published	26×12-12
▶Loader & Attachments
Quick Attach Loader System	LA272 and LA302 loaders offered	Kubota Swift-Tach (Quick attach)
Loader Model	LA272; LA302	LA340S (standard, quick attach); LA340 (pin-on option)
Loader Lift Height	LA272: 69.7 in; LA302: 69.5 in	71.0 in
Loader Lift Capacity (Full Height)	LA272: 685 lb; LA302: 770 lb	739 lb (LA340 pin-on); 613 lb (LA340S quick attach)
Loader Breakout Force	LA272: 1003 lbf; LA302: 1120 lbf	1,407 lbf (LA340 pin-on); 1,286 lbf (LA340S quick attach)
▶Warranty
Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota BX80 Series Brush Guard Insert (S/N C1630 and up) $259.00 S/N C1630 and after Kubota BX80 Series Brush Guard Insert (S/N before C1630) $299.00 S/N before C1630

Find a Kubota dealer near you→

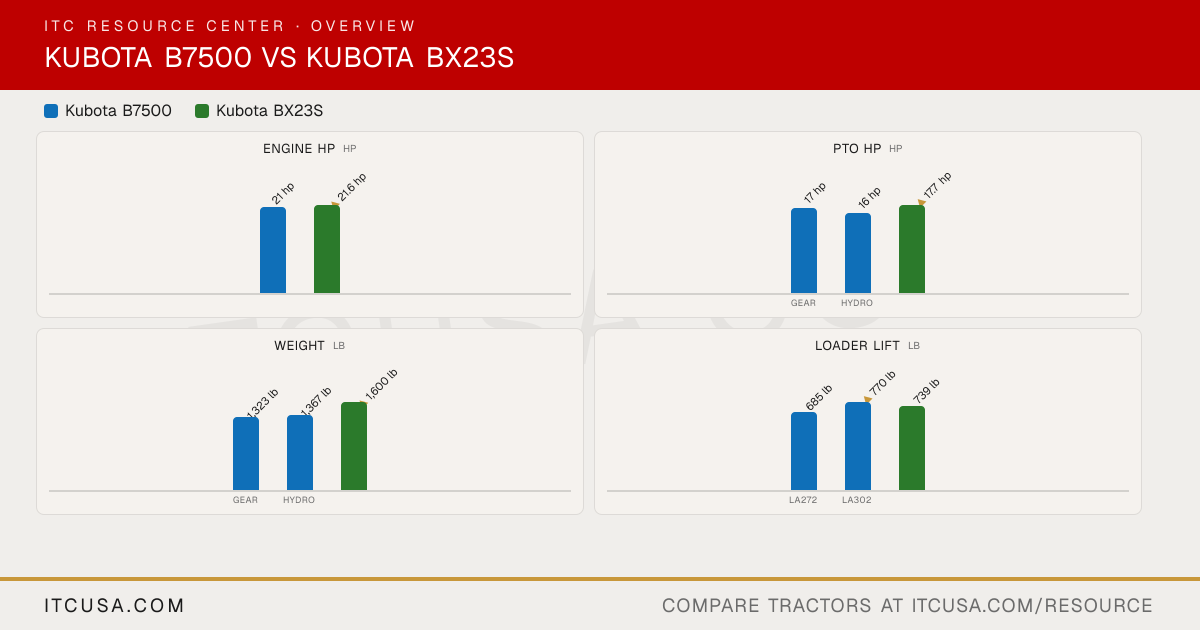

Kubota B7500 vs Kubota BX23S: Quick Answers

Which has more horsepower, the Kubota B7500 or the Kubota BX23S?

The Kubota BX23S leads on engine hp at 21.6 hp hp, compared to 21 hp hp for the Kubota B7500.

Which has more PTO horsepower, the Kubota B7500 or the Kubota BX23S?

The Kubota BX23S leads on pto hp at 17.7 hp hp, compared to 17 hp hp for the Kubota B7500.

Which is heavier, the Kubota B7500 or the Kubota BX23S?

The Kubota BX23S leads on weight at 1,600 lb lb, compared to 1,367 lb lb for the Kubota B7500.

Which has more loader lift capacity, the Kubota B7500 or the Kubota BX23S?

The Kubota B7500 leads on loader lift at 770 lb lb, compared to 739 lb lb for the Kubota BX23S.

Which has more three-point hitch lift capacity, the Kubota B7500 or the Kubota BX23S?

The Kubota B7500 leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 680 lb lb for the Kubota BX23S.
