Which has more horsepower, the Bad Boy Tractors 3026 or the Kubota BX23S?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 23 hp hp for the Kubota BX23S.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kubota BX23S?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 17.7 hp hp for the Kubota BX23S.

Which is heavier, the Bad Boy Tractors 3026 or the Kubota BX23S?

The Bad Boy Tractors 3026 leads on weight at 1,829.8 lb lb, compared to 1,598.3 lb lb for the Kubota BX23S.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kubota BX23S?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 738.5 lb lb for the Kubota BX23S.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kubota BX23S?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 680 lb lb for the Kubota BX23S.

Bad Boy Tractors 3026 vs Kubota BX23S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 3026 leads 8 categories to 1. Machine pages: Bad Boy Tractors 3026 and Kubota BX23S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 3026	Kubota BX23S
Engine HP (hp)	▲ 24 hp	23 hp
PTO HP (hp)	▲ 18 hp	17.7 hp
Weight (lb)	▲ 1,829.8 lb	1,598.3 lb
Loader Lift (lb)	▲ 1,314 lb	738.5 lb
3-Pt Lift (24 in) (lb)	▲ 974 lb	680 lb
Lift Height (in)	▲ 86 in	71 in
Breakout Force (lbf)	1,960 lbf	▲ 6,258 lbf
Hydraulic Flow (gpm)	▲ 7.4 gpm	6.2 gpm
Travel Speed (mph)	▲ 14.8 mph	0 mph

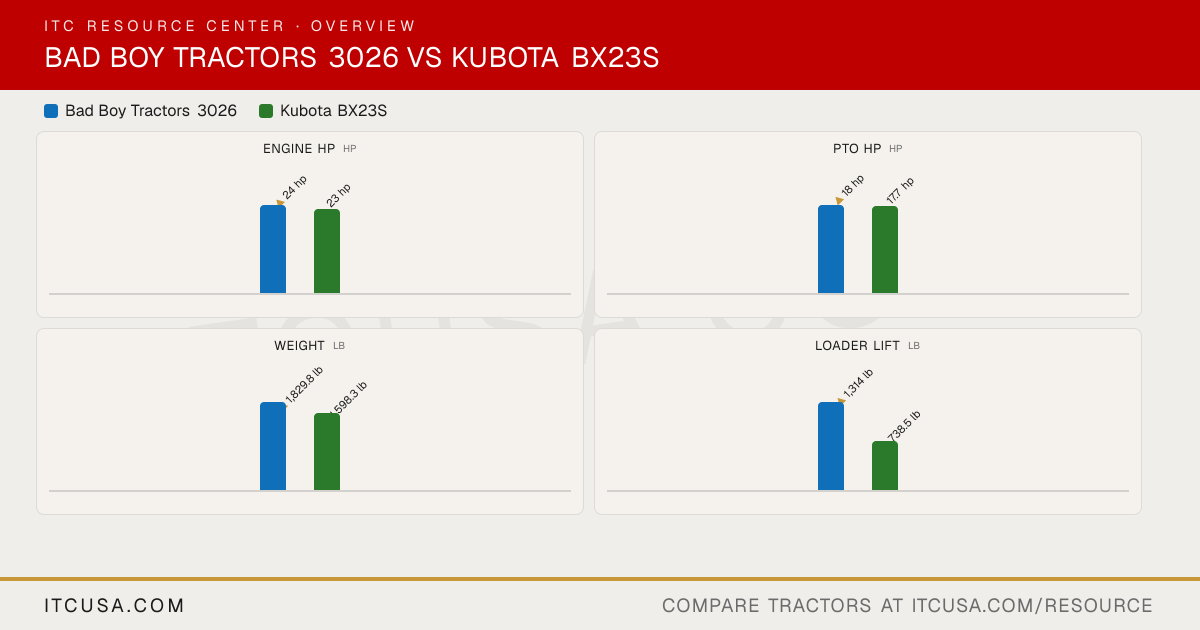

The headline numbers at a glance.

Bad Boy Tractors 3026Kubota BX23S

Engine HPhp

▲24 hp

23 hp

PTO HPhp

▲18 hp

17.7 hp

Weightlb

▲1,829.8 lb

1,598.3 lb

Loader Liftlb

▲1,314 lb

738.5 lb

3-Pt Lift (24 in)lb

▲974 lb

680 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KubotaBX23S


PTO Power	18 hp	17.7 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Dry, Element	Sheet net and replaceable treated paper element, spin on oil filter
Engine Type	3 CYL, Water Cooled, Diesel	Liquid-cooled, 4-cycle diesel
Fuel System	Diesel	Diesel fuel No.2 [above -10 ℃ (14 ℉)] Diesel fuel No.1 [below -10 ℃ (14 ℉)]
Displacement	71.7 in³	54.8 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3200 rpm
Cooling System Type	Water Cooled	Liquid-cooled
Engine Manufacturer	TYM	KUBOTA
Engine Power (Gross)	24 hp	23 hp
Engine Emissions Constraints	Final Tier4	Not Published

Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	1,598.3 lb (1600 lbs.)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours.

Pump Type	Gear type pump with primary and secondary pumps	Hydrostatic transmission
Steering Flow	3.1 gpm	1.0 gpm
Implement Flow	4.3 gpm	6.2 gpm (23.5 l/min.)
Total Hydraulic Flow	7.4 gpm 28.0 lpm	6.2 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Open center tandem pump gear type
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	12.3 MPa to 12.8 MPa
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	6.2 gpm
No. of Optional Remote Valves	Optional (Up To 1)	2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves	0	2 valves

PTO Rear	540 / 960 rpm @ 2,600 rpm	STD 540 rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Live independent PTO (with hydraulic clutch)
Lift Control Type	Position control	Quarter-inching valve
Hitch Lift Capacity	1,433 lbs	1,213 lbs.
Mid-PTO Availability	Option: 2,500 rpm (Mid)	STD (2500rpm)
Category, 3-Point Hitch	Cat 1	SAE Category 1
Hitch Lift Capacity (at 24”)	974 lb	680 lb

R3 Turf - Rear	Not Published	26×12-12
R3 Turf - Front	Not Published	18×8.5-10
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A
R4 Industrial - Rear	14X17.5	26×12-12
R4 Industrial - Front	25X8.50-14	18×8.5-10
R1 Agricultural - Rear	11.2-20 8PR	Not Applicable
R1 Agricultural - Front	7-16 6PR	Not Applicable

Coolant Capacity	1.21 gal	0.8 gal (3.3 U.S.qts.)
Crankcase Capacity	0.79 gal	0.9 gal (3.4 U.S.qts.)
Fuel Tank Capacity	6.08 gal	6.6 gal (6.6 U.S.gals.)
Front Axle Fluid Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	2.98 U.S. gals.

Loader Lift Height	86 in.	71.0 in
Loader Breakout Force	1,960 lbs.	6258 N (1407 lbs) [LA340] / 5719 N (1286 lbs) [LA340S]
Quick Attach Loader System	SSQA	Kubota Swift-Tach (Quick attach)
Loader Lift Capacity (Full Height)	1,314 lbs.	738.5 lb (739 lbs) [LA340] / 612.9 lb (613 lbs) [LA340S]

Clutch	Dry Single Plate	Dry type single plate - Main clutch 9.45"
No. of Speeds	3 Range	2 Range (Low-High)
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission, High-Low gear shift (2 forward, 2 reverse)
Max Travel Speed (Forward)	14.8 mph	0 mph to 8.4 mph
Max Travel Speed (Reverse)	14.8 mph	0 mph to 6.5 mph
Differential Lock & Limited Slip Options	Differential Lock	Rear differential lock standard

Brakes	Wet, Multi-Disc	Mechanical, wet disc type
Steering	Hydrostatic	Hydrostatic Power Steering
Frame Type	Steel frame with cast iron axles	Two-post foldable ROPS
Front Axle Type	4 Wheel Drive	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	Maximum tongue weight 550 lb.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Not Published

Wheelbase	65.7"	55.1 in (55.1 in.)
Overall Width	53.8"	45.1 in (45.1 in.)
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	87 in (87.0 in.) w / Front guard (without 3P), 99 in (99.0 in.) w / Front guard (with 3P)
Ground Clearance	16.4"	5.8 in (5.83 in.)
Height to Top of ROPS	91.4"	86.2 in (86.2 in.)
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	Not Published
Min. Turn Radius without Brakes	46°	7.5 feet
Overall Length with 3-Point Hitch	110 in	99.0 in. w/3-Pt., w/ Front guard
