Kubota BX23S vs Kubota L2502

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 0 measurable specs, this matchup is a dead heat: 0 categories to the Kubota BX23S, 0 to the Kubota L2502. Machine pages: Kubota BX23S and Kubota L2502.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota BX23S	Kubota L2502
Engine HP (hp)	23 hp	—
PTO HP (hp)	17.7 hp	—
Weight (lb)	1,598.3 lb	—
Loader Lift (lb)	738.5 lb	—
3-Pt Lift (24 in) (lb)	680 lb	—
Lift Height (in)	71 in	—
Breakout Force (lbf)	6,258 lbf	—
Hydraulic Flow (gpm)	6.2 gpm	—
Travel Speed (mph)	0 mph	—

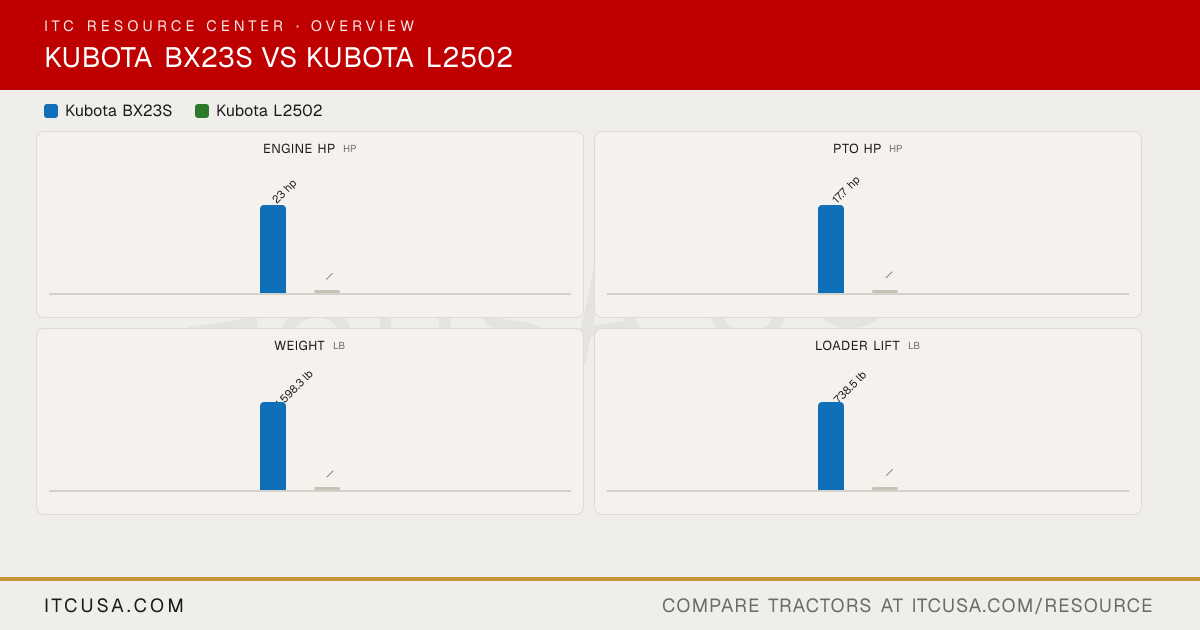

The headline numbers at a glance.

Kubota BX23SKubota L2502

Engine HPhp

23 hp

—

PTO HPhp

17.7 hp

—

Weightlb

1,598.3 lb

—

Loader Liftlb

738.5 lb

—

3-Pt Lift (24 in)lb

680 lb

—

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX23S	KubotaL2502


PTO Power	17.7 hp	—
Alternator	40 A, 12 V	—
Air Cleaner	Sheet net and replaceable treated paper element, spin on oil filter	—
Engine Type	Liquid-cooled, 4-cycle diesel	—
Fuel System	Diesel fuel No.2 [above -10 ℃ (14 ℉)] Diesel fuel No.1 [below -10 ℃ (14 ℉)]	—
Displacement	54.8 in³	—
No. of Cylinders	3	—
Rated Engine Speed	3200 rpm	—
Cooling System Type	Liquid-cooled	—
Engine Manufacturer	KUBOTA	—
Engine Power (Gross)	23 hp	—
Engine Emissions Constraints	Not Published	—

Tractor Weight (Base)	1,598.3 lb (1600 lbs.)	—
Weight with ROPS and Loader	Not Published	—
Weight with Cab and Loader	Not Applicable	—

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours.	—

Pump Type	Hydrostatic transmission	—
Steering Flow	1.0 gpm	—
Implement Flow	6.2 gpm (23.5 l/min.)	—
Total Hydraulic Flow	6.2 gpm	—
Hydraulic System Type	Open center tandem pump gear type	—
System Operating Pressure	12.3 MPa to 12.8 MPa	—
Rear Remote Hydraulic Flow	Not Published	—
Overall Hydraulic Pump Flow	6.2 gpm	—
No. of Optional Remote Valves	2 (optional; ISO 7241-1 series A or B)	—
No. of Standard Remote Valves	2 valves	—

PTO Rear	STD 540 rpm	—
PTO Type	Live independent PTO (with hydraulic clutch)	—
Lift Control Type	Quarter-inching valve	—
Hitch Lift Capacity	1,213 lbs.	—
Mid-PTO Availability	STD (2500rpm)	—
Category, 3-Point Hitch	SAE Category 1	—
Hitch Lift Capacity (at 24”)	680 lb	—

R3 Turf - Rear	26×12-12	—
R3 Turf - Front	18×8.5-10	—
Tire Size & Options	Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A	—
R4 Industrial - Rear	26×12-12	—
R4 Industrial - Front	18×8.5-10	—
R1 Agricultural - Rear	Not Applicable	—
R1 Agricultural - Front	Not Applicable	—

Coolant Capacity	0.8 gal (3.3 U.S.qts.)	—
Crankcase Capacity	0.9 gal (3.4 U.S.qts.)	—
Fuel Tank Capacity	6.6 gal (6.6 U.S.gals.)	—
Front Axle Fluid Capacity	Not Published	—
Transmission / Hydraulic System Capacity	2.98 U.S. gals.	—

Loader Lift Height	71.0 in	—
Loader Breakout Force	6258 N (1407 lbs) [LA340] / 5719 N (1286 lbs) [LA340S]	—
Quick Attach Loader System	Kubota Swift-Tach (Quick attach)	—
Loader Lift Capacity (Full Height)	738.5 lb (739 lbs) [LA340] / 612.9 lb (613 lbs) [LA340S]	—

Clutch	Dry type single plate - Main clutch 9.45"	—
No. of Speeds	2 Range (Low-High)	—
Transmission Type	Hydrostatic transmission, High-Low gear shift (2 forward, 2 reverse)	—
Max Travel Speed (Forward)	0 mph to 8.4 mph	—
Max Travel Speed (Reverse)	0 mph to 6.5 mph	—
Differential Lock & Limited Slip Options	Rear differential lock standard	—

Brakes	Mechanical, wet disc type	—
Steering	Hydrostatic Power Steering	—
Frame Type	Two-post foldable ROPS	—
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	—
Drawbar Capacity	Maximum tongue weight 550 lb.	—
Front Axle Rating	Not Published	—
Seat Suspension & Adjustability	Not Published	—

Wheelbase	55.1 in (55.1 in.)	—
Overall Width	45.1 in (45.1 in.)	—
Overall Length	87 in (87.0 in.) w / Front guard (without 3P), 99 in (99.0 in.) w / Front guard (with 3P)	—
Ground Clearance	5.8 in (5.83 in.)	—
Height to Top of ROPS	86.2 in (86.2 in.)	—
Height to Top of Cab Model	Not Applicable	—
Height to Top of ROPS (folded)	Not Published	—
Min. Turn Radius without Brakes	7.5 feet	—
Overall Length with 3-Point Hitch	99.0 in. w/3-Pt., w/ Front guard	—
