Kubota L2502 vs Kubota L2502F

Across 8 measurable specs, this matchup is a dead heat: 0 categories to the Kubota L2502, 0 to the Kubota L2502F, 8 tied. Machine pages: Kubota L2502 and Kubota L2502F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL2502	KubotaL2502F

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1703-M-DI-E4 / D1703-M-DI-E4K	D1703-M-DI-E4 / D1703-M-DI-E4K
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	100.5 in³	100.5 in³
Rated Engine Speed	2200 rpm	2200 rpm
Engine Power (Gross)	23.3 hp	23.3 hp
PTO Power	18.4 hp	18.4 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry type, single element	Dry type, single element
Fuel System	Direct injection	Direct injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	5.2 gpm	5.2 gpm
Steering Flow	3.1 gpm	3.1 gpm
Total Hydraulic Flow	8.28 gpm (5.15 + 3.13, computed)	8.28 gpm (5.15 + 3.13, computed)
Overall Hydraulic Pump Flow	8.28 gpm (5.15 + 3.13, computed)	8.28 gpm (5.15 + 3.13, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.1 gal	11.1 gal
Coolant Capacity	6.3 qt	6.3 qt
Crankcase Capacity	6.0 qt	6.0 qt
Transmission / Hydraulic System Capacity	HST (4WD): 6.9 gal; DT (2WD): 7.4 gal; DT (4WD): 7.5 gal	7.4 gal
Front Axle Fluid Capacity	4.8 qt	Not Published
▶PTO & Hitch
PTO Type	DT (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-independent hydraulic PTO with PTO brake, wet	Transmission driven with overrunning clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	SAE Category I	SAE Category I
Hitch Lift Capacity	1874 lb	1874 lb
Hitch Lift Capacity (at 24”)	1389 lb	1389 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	DT (2WD), DT (4WD): Constant mesh with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	Constant mesh with synchronized shuttle
No. of Speeds	DT (2WD), DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	8 forward, 8 reverse
Max Travel Speed (Forward)	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 11.5 mph	10.7 mph
Max Travel Speed (Reverse)	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 10.3 mph	10.7 mph
Clutch	DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Integral type power steering
Brakes	Mechanical, wet disc type	Mechanical, wet disc type
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Cast-iron front axle	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	730 lb	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	DT (2WD): 110.6 in; DT (4WD), HST (4WD): 108.5 in (without 3-point hitch)	110.6 in (without 3-point hitch)
Overall Width	55.1 in	55.1 in
Wheelbase	DT (2WD): 63.8 in; DT (4WD), HST (4WD): 63.4 in	63.8 in
Ground Clearance	DT (2WD): 13.6 in; DT (4WD), HST (4WD): 13.4 in	13.6 in
Min. Turn Radius without Brakes	DT (2WD): 7.9 ft; DT (4WD), HST (4WD): 8.2 ft (with brake applied)	7.9 ft (with brake applied)
Height to Top of ROPS	91.7 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	DT (2WD): 2601 lb; DT (4WD): 2811 lb; HST (4WD): 2833 lb	2601 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural; R3 Turf
R1 Agricultural - Front	DT (2WD): 5.0-15; DT (4WD), HST (4WD): 7.2-16	5.0-15
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	DT (2WD): 23X8.50-12; DT (4WD), HST (4WD): 25X8.50-14	23X8.50-12
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 27X8.50-15	Not Published
R4 Industrial - Rear	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 15-19.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA526	LA526
Loader Lift Height	LA526: 94.8 in	94.8 in
Loader Lift Capacity (Full Height)	LA526: 1,096 lb	1096 lb
Loader Breakout Force	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	Not Published	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

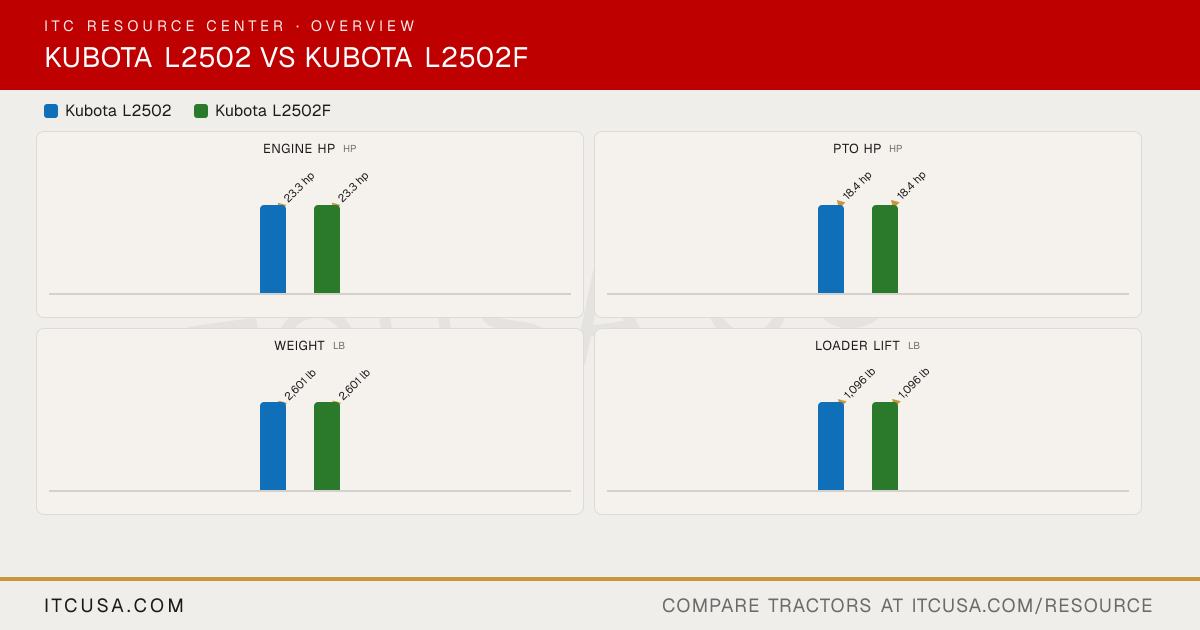

Kubota L2502 vs Kubota L2502F: Quick Answers

Which has more horsepower, the Kubota L2502 or the Kubota L2502F?

They are effectively tied: both machines are rated at 23.3 hp hp for engine hp.

Which has more PTO horsepower, the Kubota L2502 or the Kubota L2502F?

They are effectively tied: both machines are rated at 18.4 hp hp for pto hp.

Which is heavier, the Kubota L2502 or the Kubota L2502F?

They are effectively tied: both machines are rated at 2,601 lb lb for weight.

Which has more loader lift capacity, the Kubota L2502 or the Kubota L2502F?

They are effectively tied: both machines are rated at 1,096 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kubota L2502 or the Kubota L2502F?

They are effectively tied: both machines are rated at 1,389 lb lb for 3-pt lift (24 in).
