Bad Boy Tractors 1022 vs Kubota L2502F

Across 8 measurable specs, the Kubota L2502F leads 8 categories to 0. Machine pages: Bad Boy Tractors 1022 and Kubota L2502F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	KubotaL2502F

▶Engine
Engine Manufacturer	Yanmar	Kubota
Engine Model	3TNM74F	D1703-M-DI-E4 / D1703-M-DI-E4K
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	60.6 in³	100.5 in³
Rated Engine Speed	3200 rpm	2200 rpm
Engine Power (Gross)	21.5 hp	23.3 hp
PTO Power	15.4 hp	18.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Single dry element	Dry type, single element
Fuel System	Indirect injection	Direct injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Single gear pump with flow divider	Not Published
Implement Flow	4.17 gpm	5.2 gpm
Steering Flow	2.11 gpm	3.1 gpm
Total Hydraulic Flow	6.3 gpm	8.28 gpm (5.15 + 3.13, computed)
Overall Hydraulic Pump Flow	6.97 gpm	8.28 gpm (5.15 + 3.13, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	11.1 gal
Coolant Capacity	3.7 qt	6.3 qt
Crankcase Capacity	2.1 qt	6.0 qt
Transmission / Hydraulic System Capacity	3.6 gal	7.4 gal
Front Axle Fluid Capacity	2.6 qt	Not Published
▶PTO & Hitch
PTO Type	Independent	Transmission driven with overrunning clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category 1 (limited)	SAE Category I
Hitch Lift Capacity	1,100 lb	1874 lb
Hitch Lift Capacity (at 24”)	679 lb	1389 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Constant mesh with synchronized shuttle
No. of Speeds	2 range	8 forward, 8 reverse
Max Travel Speed (Forward)	7.8 mph	10.7 mph
Max Travel Speed (Reverse)	Not Published	10.7 mph
Clutch	Dry single plate	Dry type single stage
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Integral type power steering
Brakes	Wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Standard adjustable seat	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Selectable 4WD	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	94.2 in	110.6 in (without 3-point hitch)
Overall Width	44.5 in	55.1 in
Wheelbase	53.1 in	63.8 in
Ground Clearance	8.3 in	13.6 in
Min. Turn Radius without Brakes	86.6 in	7.9 ft (with brake applied)
Height to Top of ROPS	86.6 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1,433 lb	2601 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf
R1 Agricultural - Front	16x7.50-9	5.0-15
R1 Agricultural - Rear	24x12.00-12	11.2-24
R3 Turf - Front	18x8.5-10	23X8.50-12
R3 Turf - Rear	26x12.00-12	13.6-16
R4 Industrial - Front	18x8.5-10	Not Published
R4 Industrial - Rear	26x12.00-12	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	BBL100	LA526
Loader Lift Height	78.5 in	94.8 in
Loader Lift Capacity (Full Height)	617 lb	1096 lb
Loader Breakout Force	1,253 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

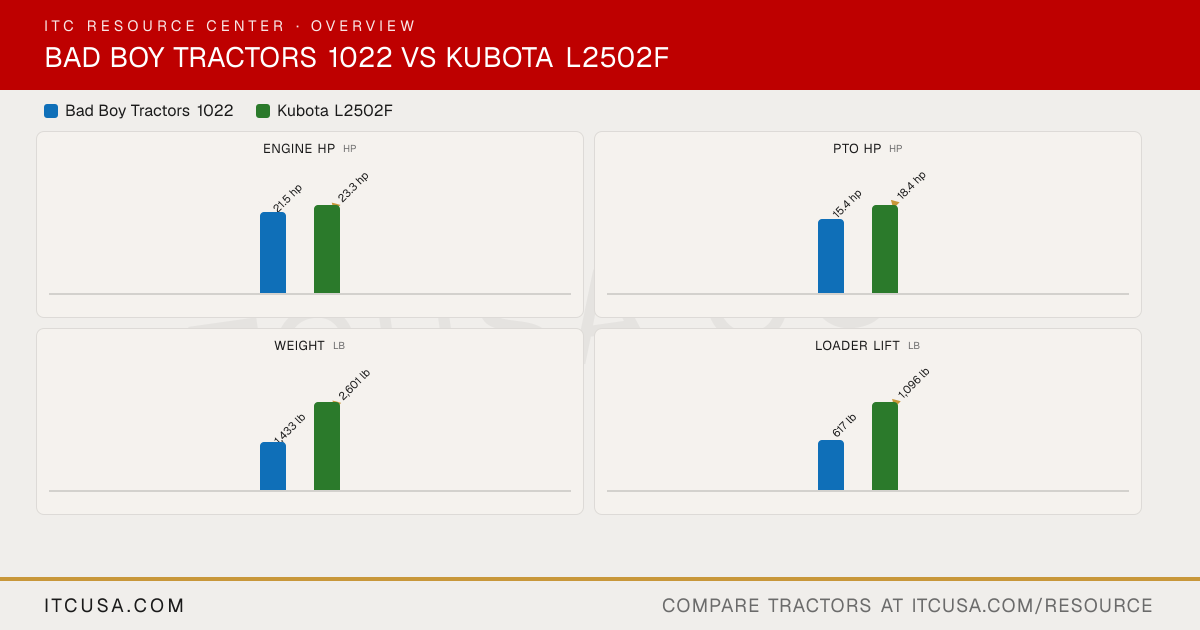

Bad Boy Tractors 1022 vs Kubota L2502F: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the Kubota L2502F?

The Kubota L2502F leads on engine hp at 23.3 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Kubota L2502F?

The Kubota L2502F leads on pto hp at 18.4 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the Kubota L2502F?

The Kubota L2502F leads on weight at 2,601 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Kubota L2502F?

The Kubota L2502F leads on loader lift at 1,096 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Kubota L2502F?

The Kubota L2502F leads on 3-pt lift (24 in) at 1,389 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
