Kubota L2800 vs Kubota L3302

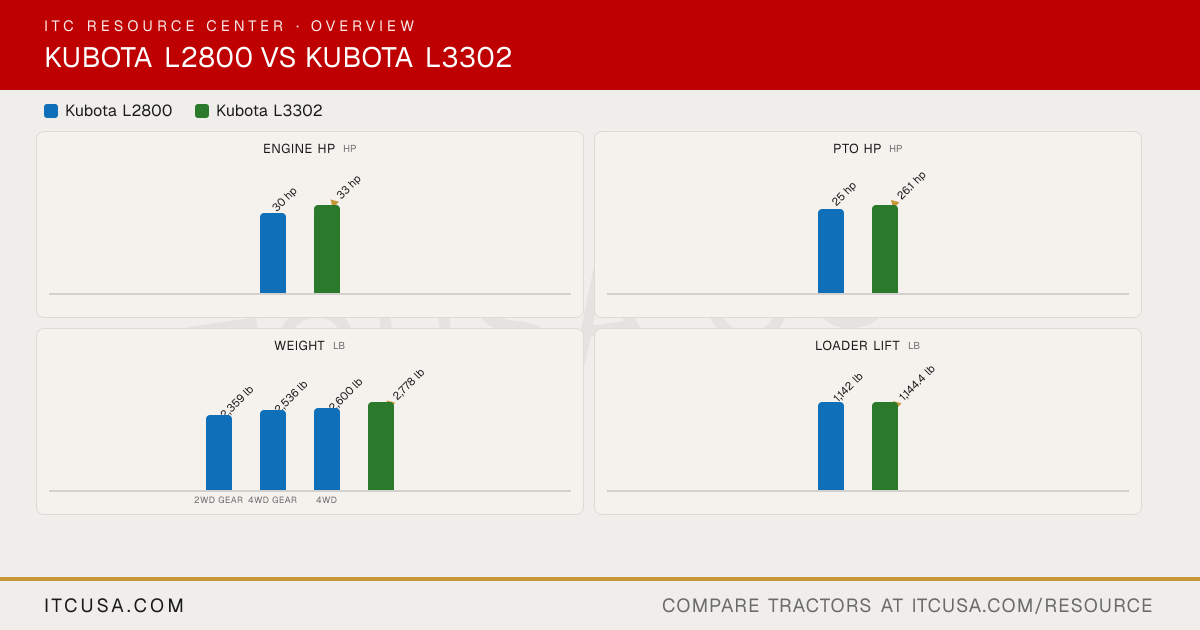

Across 8 measurable specs, the Kubota L3302 leads 5 categories to 2 (1 tied). Machine pages: Kubota L2800 and Kubota L3302.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL2800	KubotaL3302

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	Not Published	D1803-CR-E5
Engine Type	Not Published	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	91.5 in³	111.4 in³
Rated Engine Speed	2800 rpm	2700 rpm
Engine Power (Gross)	30 hp	33 hp
PTO Power	F (2WD gear), DT (4WD gear): 25 hp; HST (4WD): 23.5 hp	26.1 hp
Engine Emissions Constraints	Tier 2	Not Published
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Dry type, single element
Fuel System	Indirect injection (E-TVCS)	Direct injection
Alternator	40 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	6.5 gpm	6.3 gpm
Steering Flow	4.0 gpm	3.8 gpm
Total Hydraulic Flow	10.5 gpm (6.5 + 4.0, computed)	10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow	Not Published	10.1 gpm (6.3 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 3	Not Published
▶Fluid Capacity
Fuel Tank Capacity	9.0 gal	11.1 gal
Coolant Capacity	Not Published	6.3 qt
Crankcase Capacity	Not Published	7.1 qt
Transmission / Hydraulic System Capacity	7.3 gal	6.9 gal
Front Axle Fluid Capacity	4.8 qt	4.8 qt
▶PTO & Hitch
PTO Type	F (2WD gear), DT (4WD gear): transmission-driven, live-continuous running; HST (4WD): live-continuous with overrunning clutch	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	1998 lb	1998 lb
Hitch Lift Capacity (at 24”)	1435 lb	1435 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Not Published	Hydrostatic transmission (3-range)
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range	3-range
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 13.7 mph; HST (4WD): 14.7 mph	14.1 mph
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 4.9 mph; HST (4WD): 13.2 mph	12.7 mph
Clutch	F (2WD gear), DT (4WD gear): dry-type single stage; HST (4WD): dry-type single stage	Not Applicable
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Two-post ROPS (foldable ROPS optional)	Not Published
Steering	Integral type power steering	Integral type power steering
Brakes	Wet disc type	Mechanical, wet disc type
Seat Suspension & Adjustability	Not Published	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Not Published	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (w/o 3P) (without 3-point hitch)	108.5 in (without 3-point hitch)
Overall Width	51.4 in	55.1 in
Wheelbase	F (2WD): 63.4 in; DT (4WD), HST (4WD): 63.3 in	63.4 in
Ground Clearance	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in	13.4 in
Min. Turn Radius without Brakes	F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (w/brake) (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	85.0 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	F (2WD gear): 2359 lb; DT (4WD gear): 2536 lb; HST (4WD): 2600 lb	2778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	F (2WD gear): 5-15 front, 11.2-24 rear; DT (4WD gear), HST (4WD): 7-16 front, 11.2-24 rear	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16	7.2-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	2WD: 23x8.50-12; 4WD: 25x8.50-14	25X8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	27x8.50-15 (4WD)	27X8.50-15
R4 Industrial - Rear	15-19.5 R4 (4WD)	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Not Published	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA463	LA526
Loader Lift Height	LA463: 95.3 in	94.8 in
Loader Lift Capacity (Full Height)	LA463: 1142 lb	1144.4 lb
Loader Breakout Force	LA463: 1858 lbf (at 19.7 in) (19.7 in forward of pivot pin)	Not Published
▶Warranty
Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

Kubota L2800 vs Kubota L3302: Quick Answers

Which has more horsepower, the Kubota L2800 or the Kubota L3302?

The Kubota L3302 leads on engine hp at 33 hp hp, compared to 30 hp hp for the Kubota L2800.

Which has more PTO horsepower, the Kubota L2800 or the Kubota L3302?

The Kubota L3302 leads on pto hp at 26.1 hp hp, compared to 25 hp hp for the Kubota L2800.

Which is heavier, the Kubota L2800 or the Kubota L3302?

The Kubota L3302 leads on weight at 2,778 lb lb, compared to 2,600 lb lb for the Kubota L2800.

Which has more loader lift capacity, the Kubota L2800 or the Kubota L3302?

The Kubota L3302 leads on loader lift at 1,144.4 lb lb, compared to 1,142 lb lb for the Kubota L2800.

Which has more three-point hitch lift capacity, the Kubota L2800 or the Kubota L3302?

They are effectively tied: both machines are rated at 1,435 lb lb for 3-pt lift (24 in).
