Kubota L3301 vs Kubota L3302

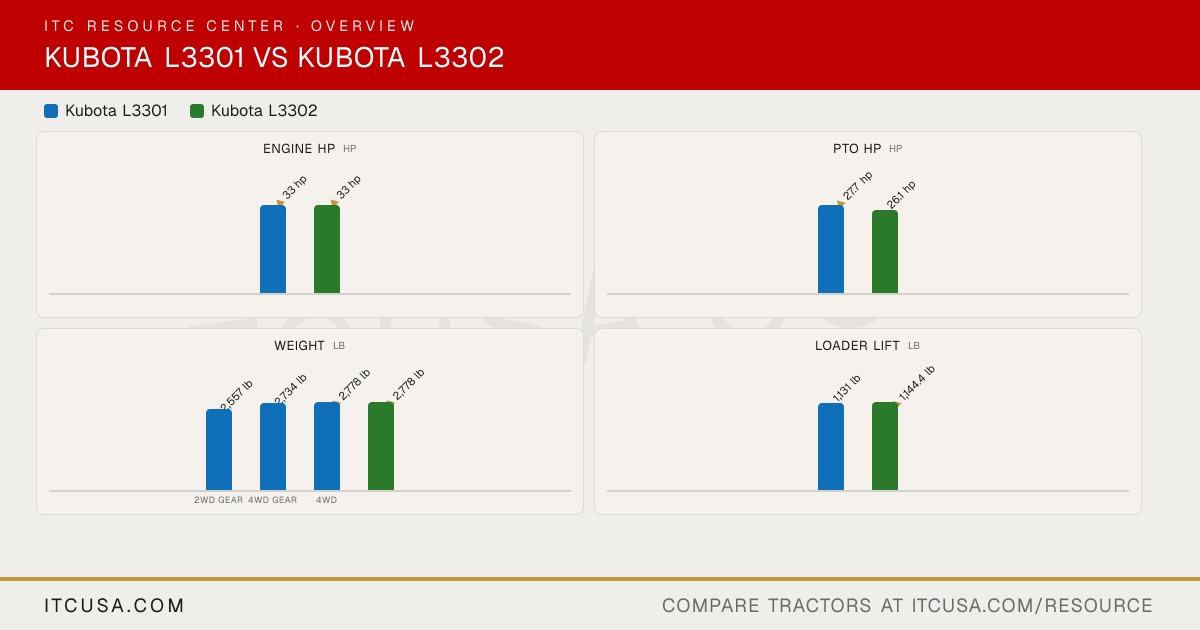

Across 8 measurable specs, the Kubota L3302 leads 4 categories to 1 (3 tied). Machine pages: Kubota L3301 and Kubota L3302.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3301	KubotaL3302

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2	D1803-CR-E5
Engine Type	3-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2700 rpm	2700 rpm
Engine Power (Gross)	33 hp	33 hp
PTO Power	F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp	26.1 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled, water with pressurized radiator	Water-cooled
Air Cleaner	Dry paper single element	Dry type, single element
Fuel System	Common-rail, direct injection, electronic control	Direct injection
Alternator	40 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Open center tandem pump, gear type	Not Published
Implement Flow	6.3 gpm	6.3 gpm
Steering Flow	3.8 gpm	3.8 gpm
Total Hydraulic Flow	10.1 gpm	10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow	10.1 gpm	10.1 gpm (6.3 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 3: self-canceling detent valve or float detent valve	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.1 gal	11.1 gal
Coolant Capacity	6.3 qt	6.3 qt
Crankcase Capacity	7.1 qt	7.1 qt
Transmission / Hydraulic System Capacity	F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal	6.9 gal
Front Axle Fluid Capacity	4.8 qt	4.8 qt
▶PTO & Hitch
PTO Type	F (2WD gear), DT (4WD gear): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	No mid-PTO offered	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	1,874 lb (at lift points)	1,998 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,435 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	F (2WD gear), DT (4WD gear): manual transmission with synchronized shuttle; HST (4WD): hydrostatic transmission	Hydrostatic transmission (3-range)
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range	3-range
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph	14.1 mph
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph	12.7 mph
Clutch	Dry type single stage	Not Applicable
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS (factory certified) with retractable seat belt	Not Published
Steering	Integral power steering	Integral type power steering
Brakes	Mechanical wet disc type, pedals can be locked together	Mechanical, wet disc type
Seat Suspension & Adjustability	Not Published	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing	Cast-iron front axle
Front Axle Rating	2,865 lb (at 41.3 in tread, 2WD and 4WD models)	Not Published
Drawbar Capacity	730 lb	730 lb
▶Dimensions & Maneuverability
Overall Width	55.1 in	55.1 in
Wheelbase	63.3 in	63.4 in
Ground Clearance	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in	13.4 in
Min. Turn Radius without Brakes	F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft	8.2 ft (with brake applied)
Height to Top of ROPS	97.1 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in (with 3-point hitch)	108.5 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	F (2WD gear): 2,557 lb; DT (4WD gear): 2,734 lb; HST (4WD): 2,778 lb	2,778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16	7.2-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14	25X8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	27x8.5-15 (4WD)	27X8.50-15
R4 Industrial - Rear	15-19.5 (4WD)	15-19.5
▶Loader & Attachments
Quick Attach Loader System	LA525: 2-lever quick coupler, tool-free attach and detach	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA525	LA526
Loader Lift Height	LA525: 94.3 in (at pivot pin)	94.8 in
Loader Lift Capacity (Full Height)	LA525: 1,131 lb (at pivot pin, maximum height)	1,144 lb
Loader Breakout Force	LA525: 2,462 lbf (at bucket pivot pin)	Not Published
▶Warranty
Warranty Length & Coverage	24 months or 1500 hours (general)	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

Kubota L3301 vs Kubota L3302: Quick Answers

Which has more horsepower, the Kubota L3301 or the Kubota L3302?

They are effectively tied: both machines are rated at 33 hp hp for engine hp.

Which has more PTO horsepower, the Kubota L3301 or the Kubota L3302?

The Kubota L3301 leads on pto hp at 27.7 hp hp, compared to 26.1 hp hp for the Kubota L3302.

Which is heavier, the Kubota L3301 or the Kubota L3302?

They are effectively tied: both machines are rated at 2,778 lb lb for weight.

Which has more loader lift capacity, the Kubota L3301 or the Kubota L3302?

The Kubota L3302 leads on loader lift at 1,144 lb lb, compared to 1,131 lb lb for the Kubota L3301.

Which has more three-point hitch lift capacity, the Kubota L3301 or the Kubota L3302?

The Kubota L3302 leads on 3-pt lift (24 in) at 1,435 lb lb, compared to 1,433 lb lb for the Kubota L3301.
